Section 02 ENGINE

Subsection 02 (AIR INTAKE SYSTEM)

Air Intake Duct Installation

Install suspension base. Refer to

iS SUSPENSION

for complete procedure.

Install engine. Refer to

ENGINE REMOVAL AND

INSTALLATION

After deck extension installation, tighten screws

retaining the air intake duct to deck extension to

1.2 N•m (11 lbf•in).

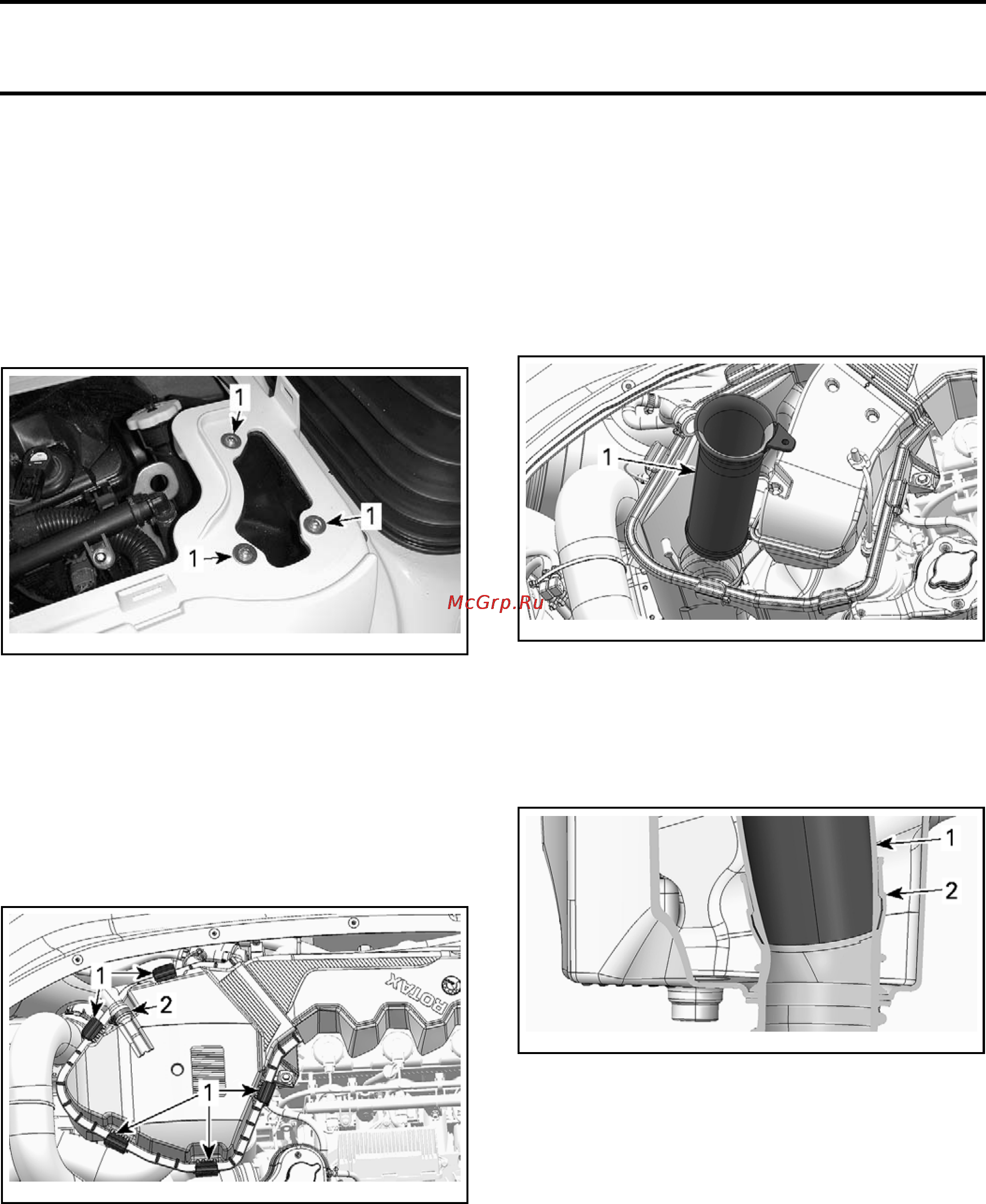

smr2009-042-020_a

1. Air inlet retaining screws

AIR INTAKE SILENCER COVER

Air Intake Silencer Cover Removal

Remove the deck extension. Refer to

BODY

sub-

section for procedure.

Release retaining latches.

Loosen clamp securing blow-by hose to cover.

smr200

9-017-004_a

1. Retaining latches

2. Loosen this clamp

Remove

the cover.

Air Intake Silencer Cover Installation

The ins

tallation is the reverse of the removal pro-

cedure

. However, pay attention to the following.

Check the condition of the seal cover. Replace

seal as required.

Tighten clamp to 1.7 N•m (15 lbf•in).

AIR INTAKE SILENCER BAFFLE

Air Intake Silencer Baffle Removal

Remove

AIR INTAKE SILENCER COVER

, see pro-

cedure in this subsection.

Pull the baffle out of the air intake silencer.

smr2009-017-005_a

1. Air intake s

ilencer baffle

Air Intake Silencer Baffle Installation

Insert the e

nd of the baffle into supercharger air

inlet hose

. Using hose ears to retain hose, push

the baffle

into supercharger air inlet hose.

smr2009-017-006_a

1. Baffle

2. Air intake hose

Install air intake silencer cover and all other re-

moved parts.

AIR INTAKE TUBE

AirIntakeTubeRemoval

Remove the

AIR INTAKE SILENCER COVER

and

the

AIR INTAKE SILENCER BAFFLE

, see proce-

dure in this subsection.

Release the three rubber latches securing the air

intake tube.

28 smr2009-017
