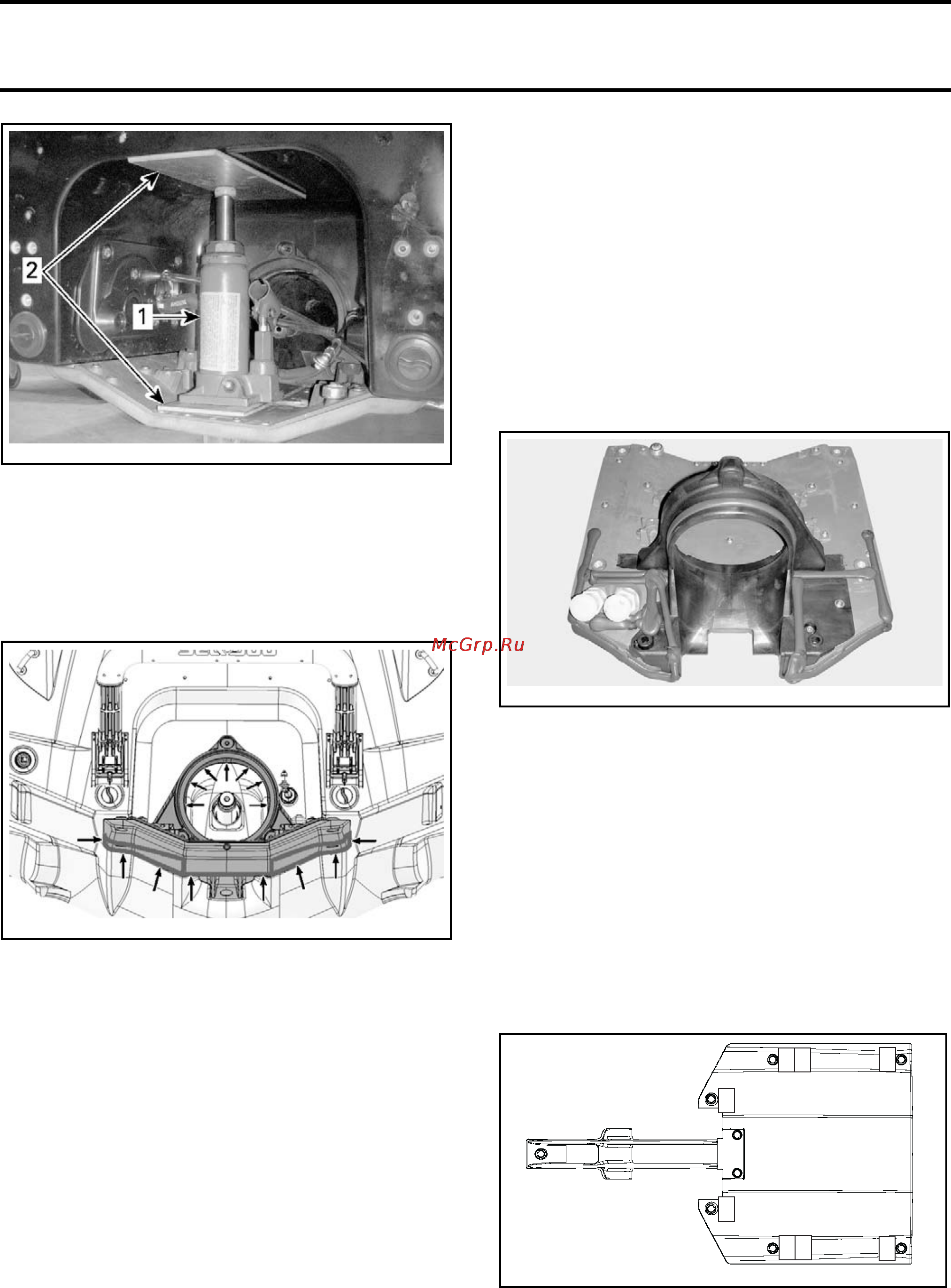

Section 07 BODY AND HULL
Subsection 03 (HULL)
smr2009-043-036_a
TYPICAL
1. Hydraulic bottle jack
2. Steel plates
12. Heat edge of ride plate and the inside diam-
eter of the pump support with a heat gun to
soften the sealer before prying the ride plate
and pump support off the watercraft.
smr2009-043-017_a
APPLY H
EAT HERE
13. Using a sharp knife, carefully cut the sealant
around the ride plate edges.
14. Pump t
he hydraulic jack slowly to pry the ride
plate
from the hull.
NOTE: If the ride plate needs to be taken apart,
the jet pump support must be removed from the
ride plate to access the screws at the forward end
of ride plate.
Ride
Plate Cleaning
1. Carefully scrape off all excess sealant from ride
plate and hull.
2. Clean hull surface with
BRP HEAVY DUTY
CLEANER (P/N 293 110 001)
to eliminate grease,
dust and sealant residue. Clean fitting threads.
Ride Plate Installation
1. Install the jet pump support on the ride plate,
see procedure in this section.
NOTE: The jet pump support must be installed on
the ride plate before installation of the ride plate
on the watercraft.
2. Reinstall hose fittings on ride plate and torque
to 7 N•m (62 lbf•in).
3. Apply
LOCTITE 5900 (P/N 293 800 066) sealant on
ride plate and jet pump support circumference
as seen in the following illustration.
smr2009-043-018
LOCTITE 5900 SEALANT APPLICATION
4. Remove all excess sealant from ride plate
mounting holes. Pay particular attention to the
RH forward mounting hole.
5. Position ride plate on hull and engage NEW M8
screws with Scotch grip 5 turns by hand.
6. Position inlet grate and engage NEW retaining
screws 5 turns by hand. Refer to
INLET GRATE
in this subsection.
7. Push ride plate completely forward and torque
ride plate screws to 35 N•m (26 lbf•ft) as per
following torque sequence.
1
4
3
7
2 8
5
6
smr2009-043-015_b
TYPICAL
8. Torque inlet grate screws. See
INLET GRATE
INSTALLATION
in this subsection.
502 smr2009-042
