Section 09 WIRING DIAGRAM

Subsection 02 (CONNECTOR INFORMATION)

smr2009-045-011_a

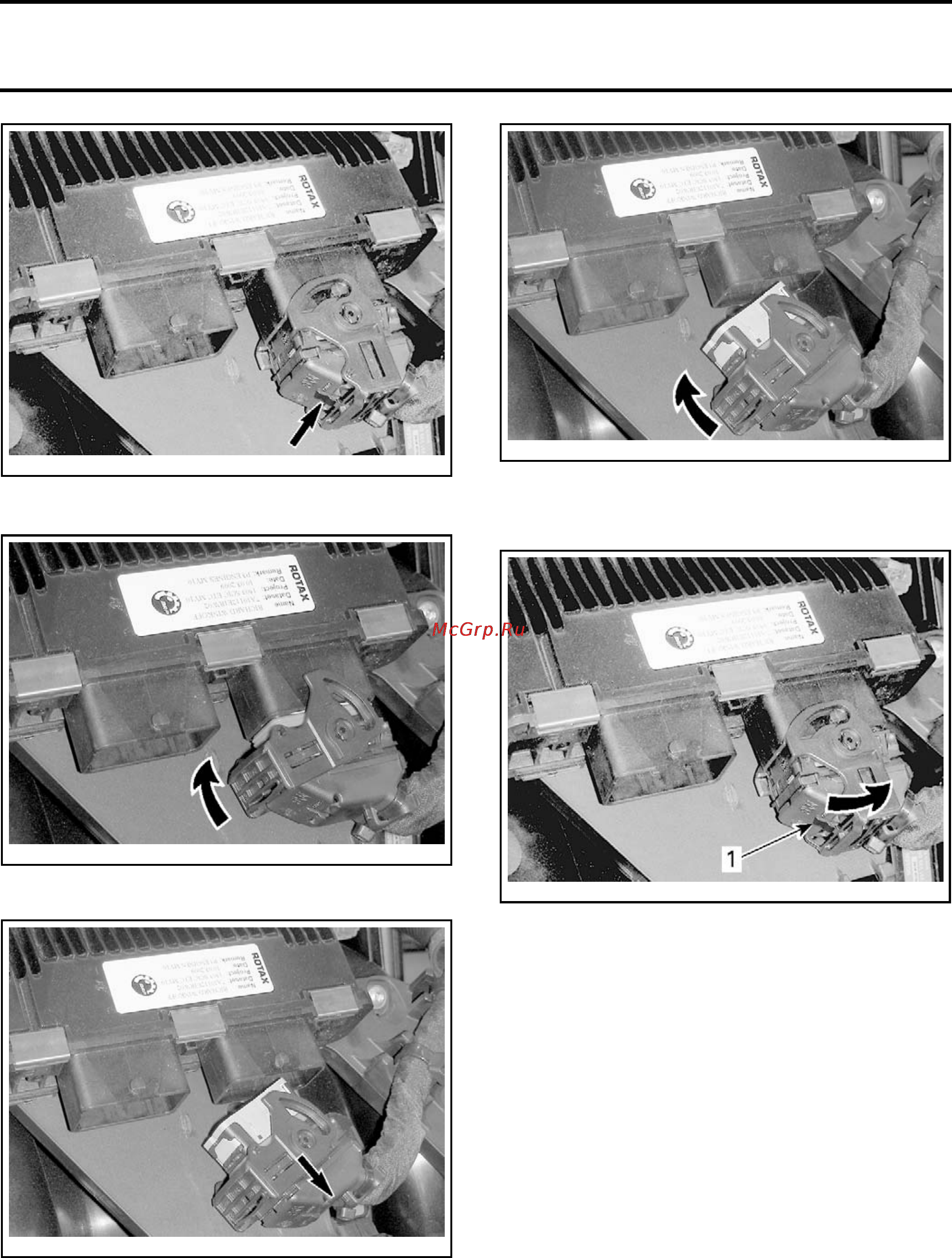

Rotate connector lock until it stops.

smr200

9-045-012_a

Pull out connector.

smr2009-045-013_a

ECM Connector Installation

Fully open connector lock.

smr2009-045-013_b

Install connector to ECM.

Rotate connector lock until it snaps locked.

smr2009-045-011_b

1. Locked here

ECM Con

nector Inspection

Before replacing an ECM, always check electrical

connections. Make sure that they are very tight

and they make good contact and that they are

corrosion-free. Check if wiring harness shows

any signs of scoring. Particularly check ECM

ground connections. Ensure that contacts are

good and clean. A “defective module” could

possibly be repaired simply by unplugging and

re-plugging the ECM. Or if a newly replaced ECM

is working, try the old one and recheck if it works.

The voltage and current might be too weak to go

through dirty wire terminals. Check carefully if

terminals show signs of moisture, corrosion or if

they look dull.

Do not apply any lubricant product to the pins of

the connector on the ECM.
