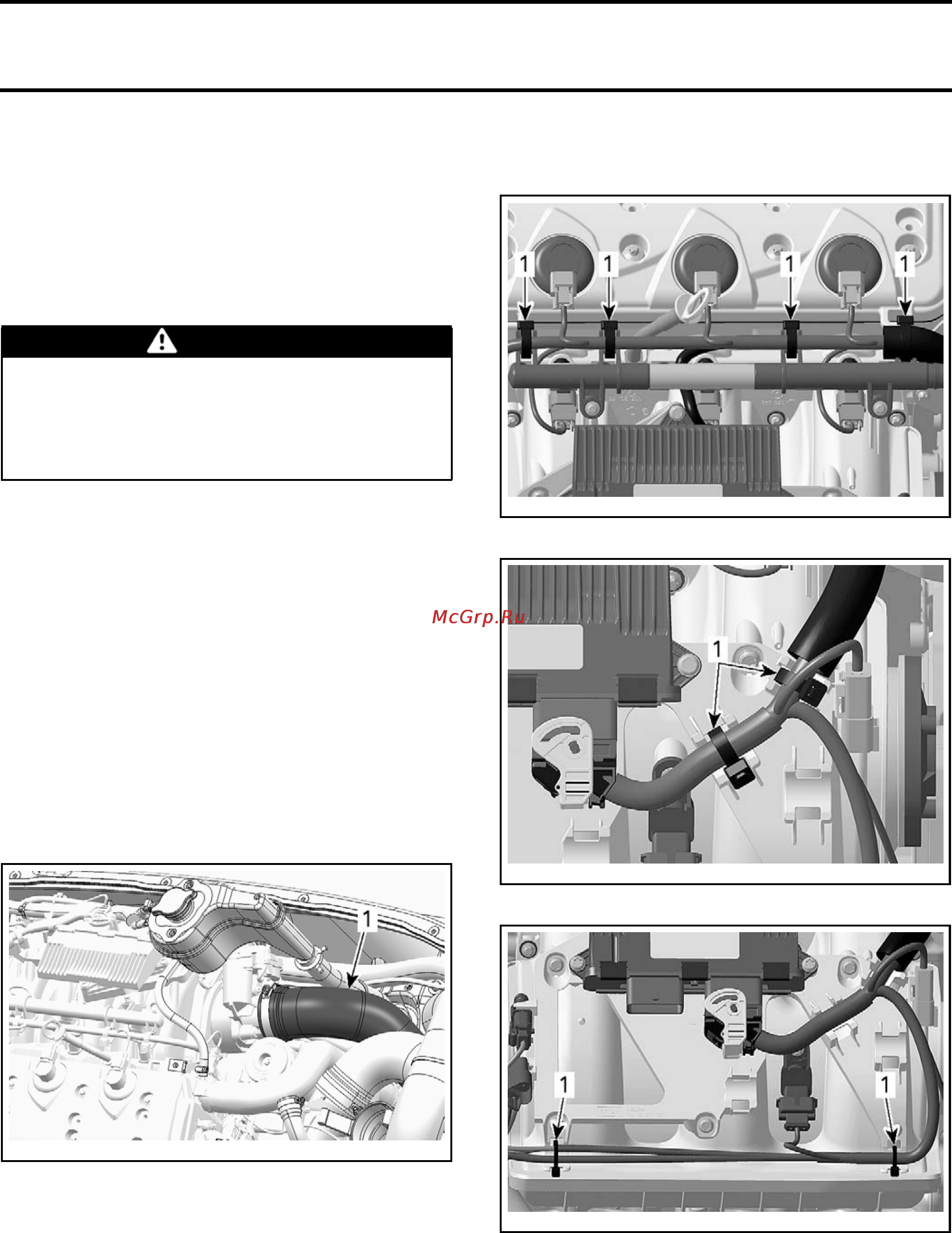

Section 02 ENGINE
Subsection 03 (INTAKE MANIFOLD)
GENERAL
During assembly/installation, use torque values
and service products as in the exploded view.
Clean threads
before applying a threadlocker. Re-
fer to
SELF-LO
CKING FASTENERS
and
LOCTITE
APPLICATION
a
t the beginning of this manual for
complete proc
edure.
WARNING
Torque wrench tightening specifications
must be strictly adhered to.
Locking devices (e.g.: locking tabs, elastic
stop nuts, self-locking fasteners, cotter pins,
etc.) must be replaced with new ones.
Hoses, cables or locking ties removed during a
procedure must be reinstalled as per factory stan-
dards.
PROCEDURES
INTAKE MANIFOLD
Intake Manifold Removal
Remove the moving deck and the deck extension.
Refer to
BODY
subsection.
Remove the air intake silencer. Refer to
AIR IN-
TAKE SYSTEM
subsection.
Disconnect the intake hose at intake manifold.
smr2009-018-020_a
1. Intake
hose
Move the coolant expansion tank aside to make
room.
Remove
the oil dipstick.
Release the fuel pressure.
Disconnect fuel hose connector at fuel rail. Refer
to
ELECTRONIC FUEL INJECTION
subsection.
Cut all locking ties securing the harness to the in-
take manifold.
smr2009-018-002_a
1. Cut these l
ocking ties to release harness
smr2009-018-003_a
1. Cut the
se locking ties to release harness
smr2
009-018-004_a
1. Cut these locking ties to release harness
Unplug the ignition coil and fuel injector connec-
tors.
32 smr2009-018
