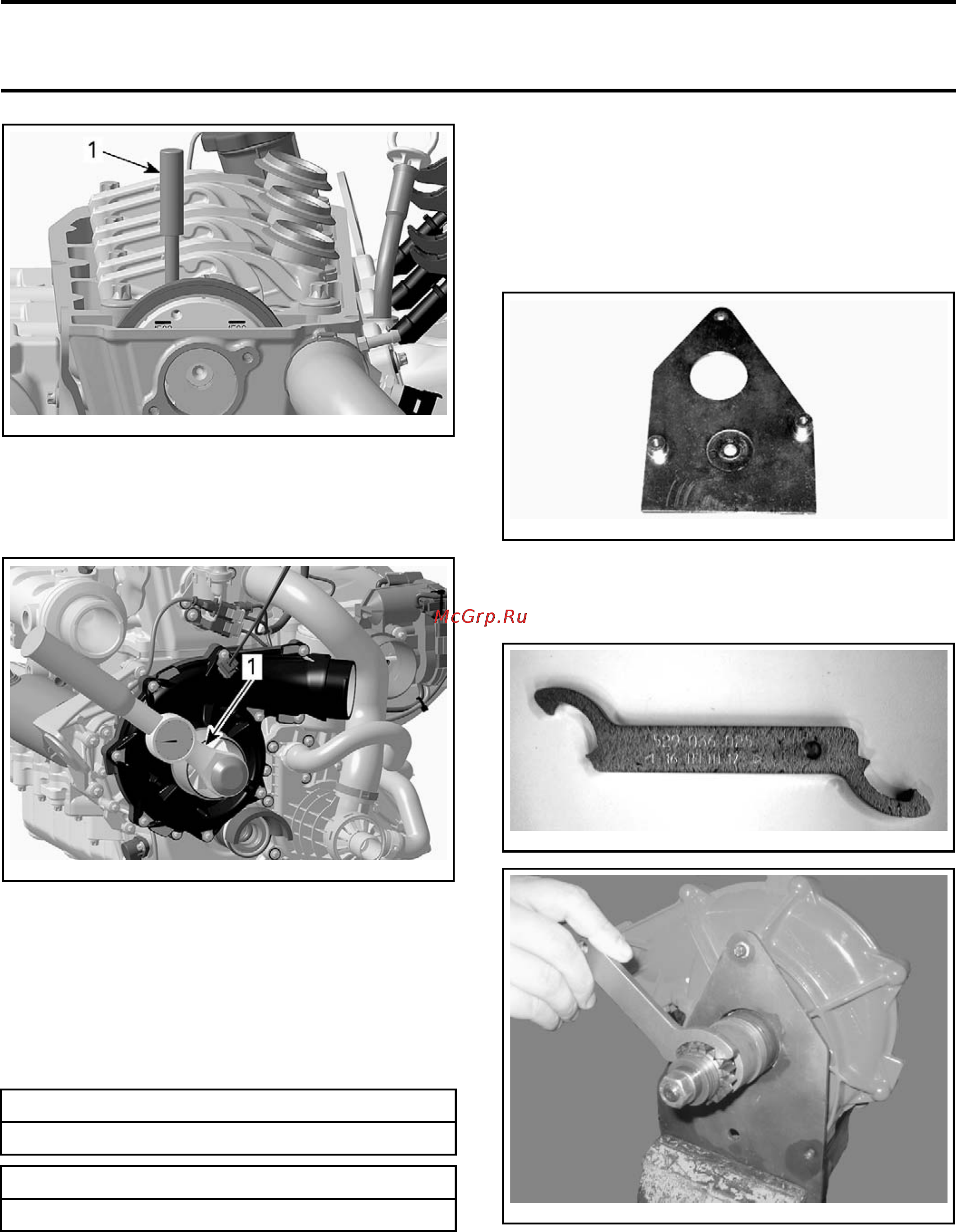

Section 02 ENGINE
Subsection 04 (SUPERCHARGER)
smr2009-025-007_b
1. Camshaft locking tool
Check slipping moment counterclockwise by us-
ing a torque wrench with actual torque viewer. A
mirror is useful to see the viewer.
smr2009
-020-004_a
1. Torque wrench
NOTE: Before checking the supercharger slipping
moment on a new or rebuilt supercharger, it is rec-
ommended to turn the clutch for a minimum of 3
complete revolutions. This will dissipate grease or
oil on the titanium shims for a precise reading.
Supercharger should start to turn at a torque
within the specified values.
SLIPPING MOMENT (NEW SUPERCHARGER)
9 N•m to 17 N•m (80 lbf•in to 150 lbf•in)
SLIPP
ING MOMENT (BREAK-IN SUPERCHARGER)
8 N•m to 12 N•m (71 lbf•in to 106 lbf•in)
If th
e torque is not within specifications, repair
supe
rcharger clutch. Verify supercharger clutch
comp
onents as per
SUPERCHARGER INSPEC-
TIO
N
in this subsection.
SUPERCHARGER CLUTCH
SLIPPING MOMENT (BENCH
TEST)
Mount supercharger on the SUPPORT PLATE
(P/N 529 035 947)
.
529035947
Use the SUPERCHARGER GEAR HOLDER (P/N 529
036 025)
to retain supercharger gear while measur-
ing slipping moment.
529036025
smr2006-074-101
Check slipping moment counterclockwise by us-
ing a torque wrench with a viewer.
smr2009-020 41
