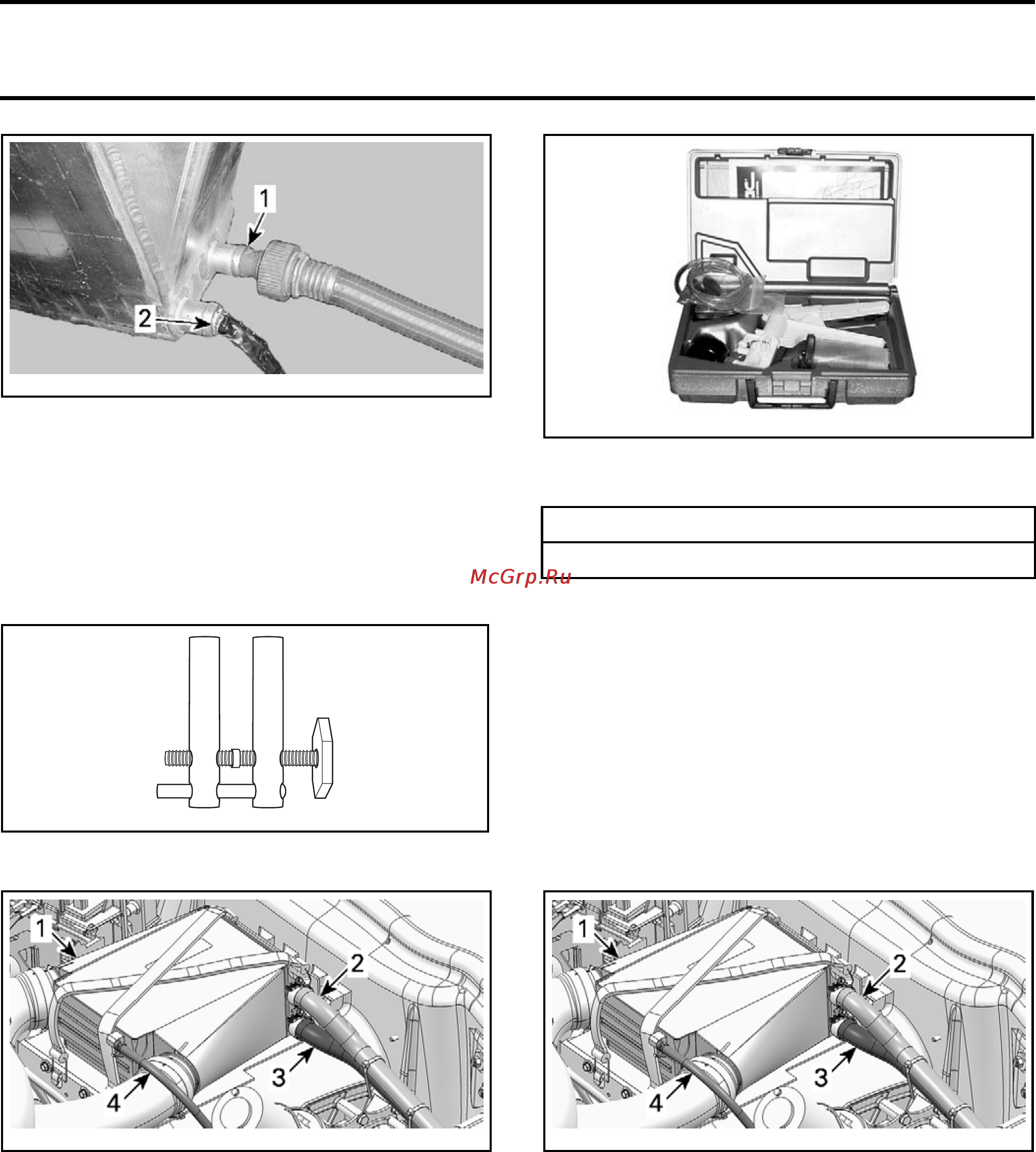

Section 02 ENGINE
Subsection 05 (INTERCOOLER)
smr2009-019-009_a
1. Garden hose installed on water outlet
2. High and regular water flow
7. Perform a leak test before installing the inter-
cooler in the watercraft.
Intercooler Leak Test
Using a LARGE HOSE PINCHER (P/N 529 032 500),
block intercooler water inlet and outlet hoses.
5290325002
Disconnect the bleed hose from intercooler.
smr2009-019-002_a
MANY PARTS REMOVED FOR CLARITY PURPOSE
1. Intercooler
2. Intercooler water outlet hose
3. Intercooler water inlet hose
4. Bleed hose
Install the VACUUM/PRESSURE PUMP (P/N 529 021
800)
on bleed hose fitting.
529021800
BLEED HOSE FITTING
Pressurize the intercooler.
PRESSURE TEST
69 kPa (10 PSI) for 10 minutes min.
If there is a pressure drop, first spray tool, hoses
and adapters with a soapy water solution to en-
sure they are not leaking.
Otherwise, replace the intercooler.
Intercooler Removal
Open the boarding platform.
Remove both storage baskets.
From the LH opening, disconnect the intercooler
water hoses and the bleed hose.
smr2009-
019-002_a
MANY PARTS REMOVED FOR CLARITY PURPOSE
1. Intercooler
2. Interco
oler water outlet hose
3. Intercooler water inlet hose
4. Bleed hose
Disconn
ect both air hoses.
smr2009-019 55
