Section 02 ENGINE

Subsection 06 (EXHAUST SYSTEM)

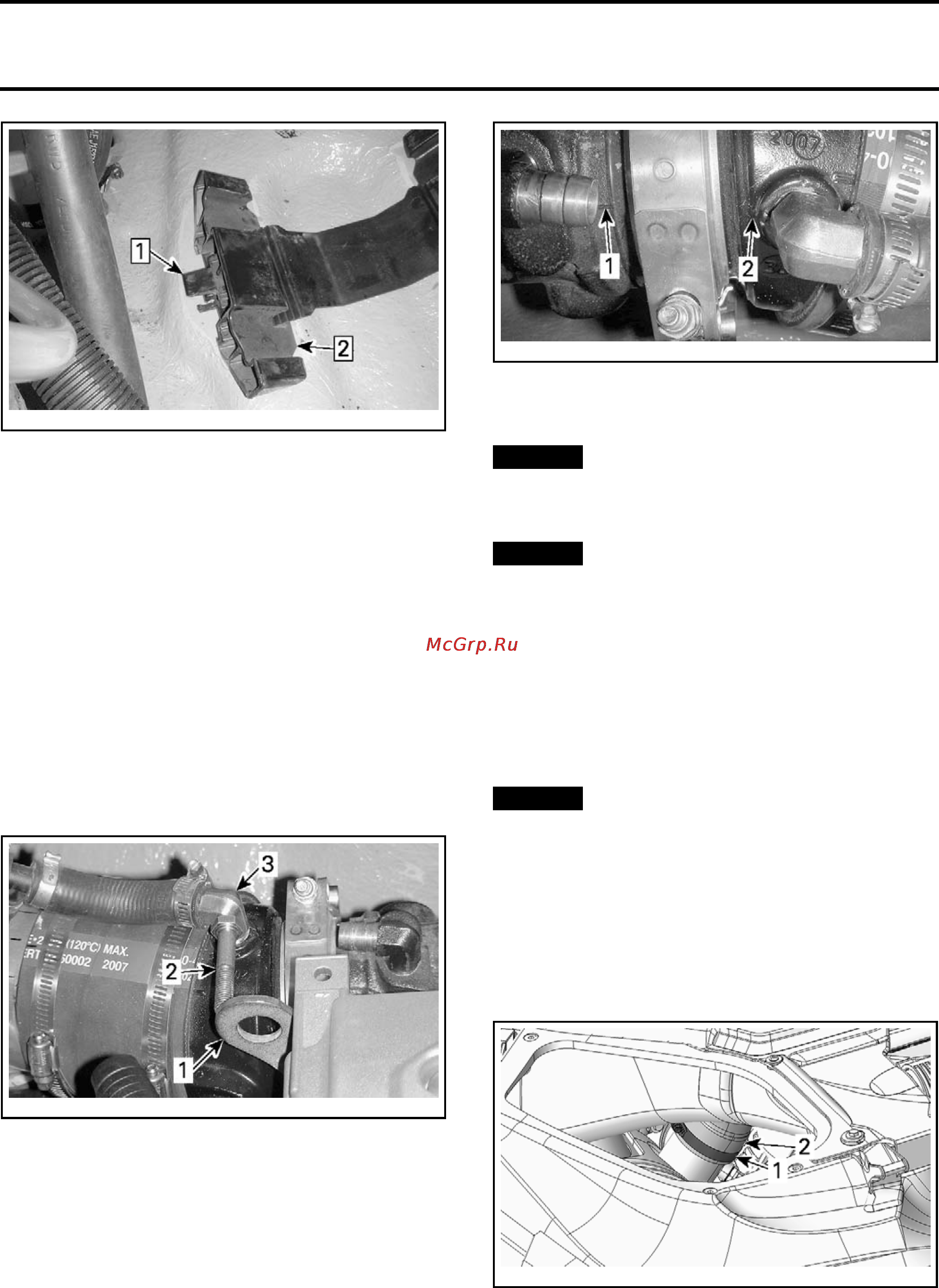

smr2008-013-026_a

Step 1: Lift adjuster tab

Step 2: Move adjuster outward

Using the rear opening, slide the muffler in hull.

Align the exhaust pipe flange to the exhaust mani-

fold. Rotate and move muffler so that the exhaust

pipe flange makes perfect contact with exhaust

manifold.

Slide both adjuster blocks against muffler to sup-

port it in position.

NOTE: Ensure muffler is in contact with both ad-

juster blocks. Readjust as required.

Install exhaust clamp with the nut upward.

Tighten clamp loosely.

Using a 50 mm (2 in) spacer (in this case a bolt),

position the exhaust pipe.

smr2008-013-027_a

1. Engine lifting ring

2. Spacer

3. Exhaust pipe fitting

Confirm that the exhaust pipe mark is aligned with

the mark on the exhaust manifold.

smr2008-013-025_a

1. Exhaust manifold mark

2. Exhaust pipe mark

Tighten exhaust clamp to 11 N•m (97 lbf•in).

NOTICE

Do not use pneumatic or electric

tools as seizure may occur.

Install the muffler strap.

NOTICE

Ensure not to rotate muffler during

strap installation. The use of a soapy water so-

lution on inner side of muffler strap is recom-

mended.

Install all other removed parts.

After installation, ensure there is no water or ex-

haust gas leak when engine is running.

Test run the engine while supplying water to the

exhaust system.

NOTICE

Never run engine without supplying

water to the exhaust system when watercraft is

out of water.

EXHAUST HOSES

Front Exhaust Hose Replacement

Remove the LH rear storage basket.

Remove exhaust hose from muffler outlet.

smr2009-021-010_a

1. Retaining clamp

2. Exhaus

those

Remove the deck extension. Refer to

BODY

sub-

section.

64 smr2009-021
