Section 02 ENGINE

Subsection 07 (PTO HOUSING AND MAGNETO)

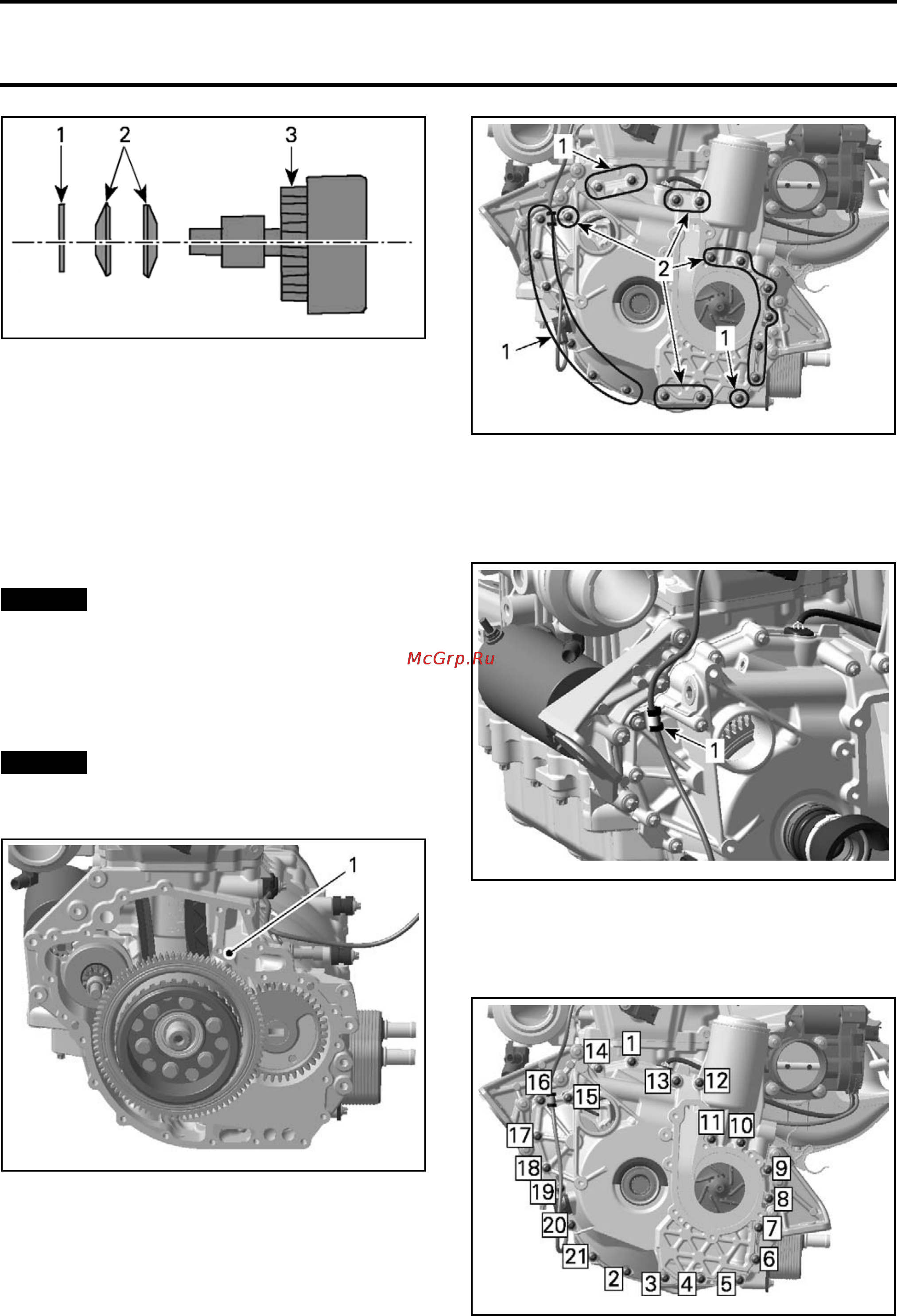

smr2005-034-100_a

TYPICAL

1. Thrust washer

2. Disc springs

3. Starter drive assembly

NOTE: When installing a NEW starter drive as-

sembly, oil the shaft and gear splines with engine

oil.

Install a new PTO housing gasket.

NOTE: When installing the PTO housing, you will

need to rotate the oil/water pump shaft slightly to

align it with the balance shaft for proper insertion.

NOTICE

Pay particular attention to the PTO

housing gasket alignment to ensure that it

does not get pinched, or slide out of its sur-

face contact area. Never force housing when

installing it. If there is a strong resistance, re-

move housing and check oil/water pump shaft

alignment and starter gear drive alignment.

NOTICE

Ensure the starter drive gear shaft is

well aligned when engaging it in the PTO hous-

ing needle bearing.

smr2009-022-002_a

1. Pay attention that gasket remains properly positioned

on this surface

Refer to the following illustration to identify the

locations of the various housing screws.

smr2009-022-001_b

1. Screws M6 x 35

2. Screws M6 x 85

NOTE: Install the CPS harness retaining clamp

at the position noted during the PTO housing

removal.

smr200

9-022-004_a

1. CPS harness retaining clamp

Install the PTO housing screws finger tight, then

torque them to 9 N•m (80 lbf•in) as per sequence

numbered in the following illustration.

smr2009-022-001_c
