Assembly

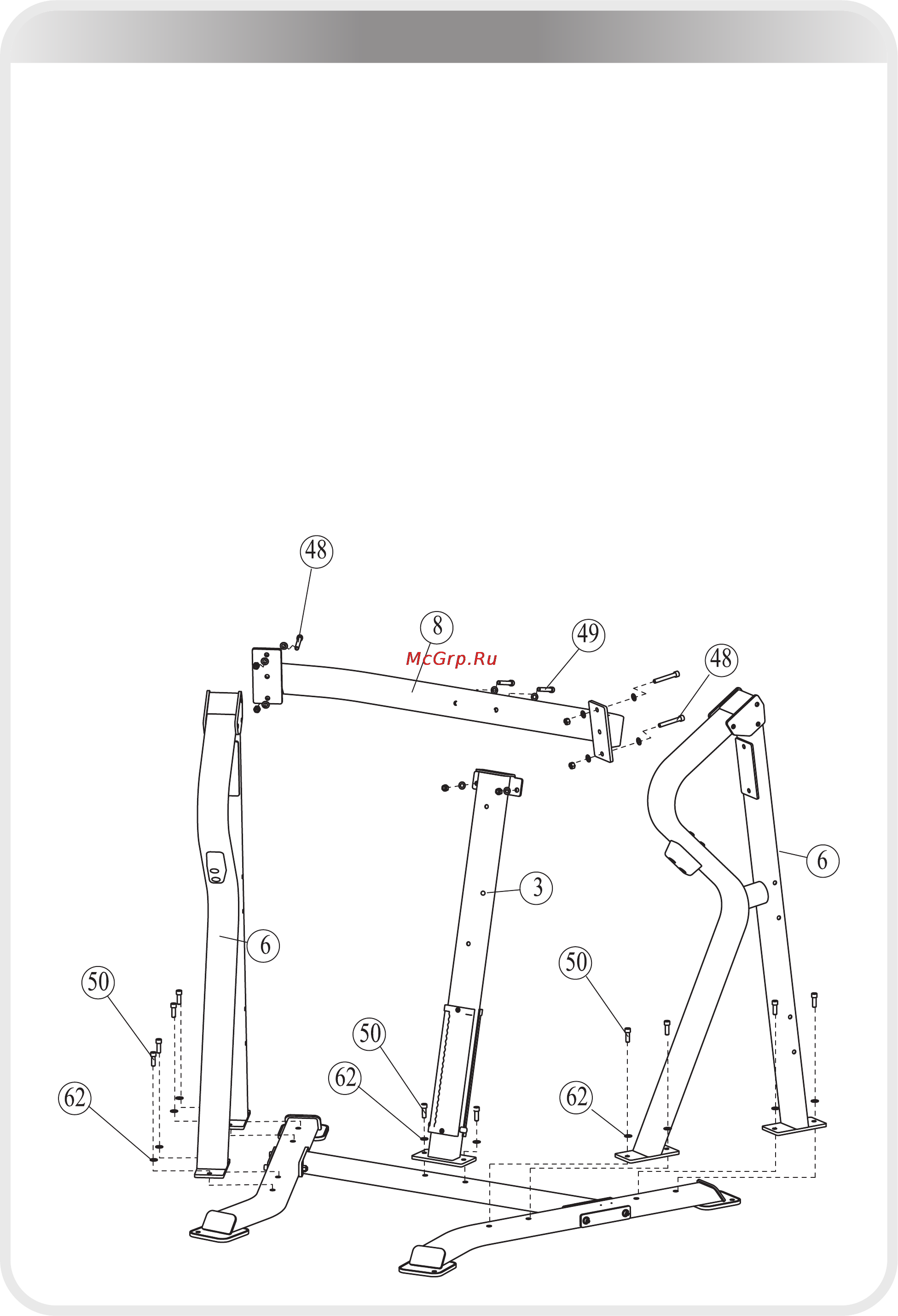

Step 2

1. Attach Upright Frame (#6) to Left Bottom Frame (#1), using:

four M12*35 SHCS (#50) four Φ13*Φ24*1.5 Flat Washer (#62)

2. Attach Upright Frame (#6) to Right Bottom Frame (#2), using:

four M12*35 SHCS (#50) four Φ13*Φ24*1.5 Flat Washer (#62)

3. Attach Rear Cross Frame (#8) to Left Bottom Frame (#1) and Right Bottom

Frame (#2), using:

four M12*85 SHCS (#48) four M12 Nylon lock Nut (#58)

eight Φ13*Φ24*1.5 Flat Washer (#62)

4. Attach Back Pad Frame (#3) to Cross Frame (#7) and Rear Cross Frame (#8),

using:

two M12*80 SHCS (#49) two M12*35 SHCS (#50)

two M12 Nylon lock Nut (#58) six Φ13*Φ24*1.5 Flat Washer (#62)

NOTE: Tighten all the hardware.
