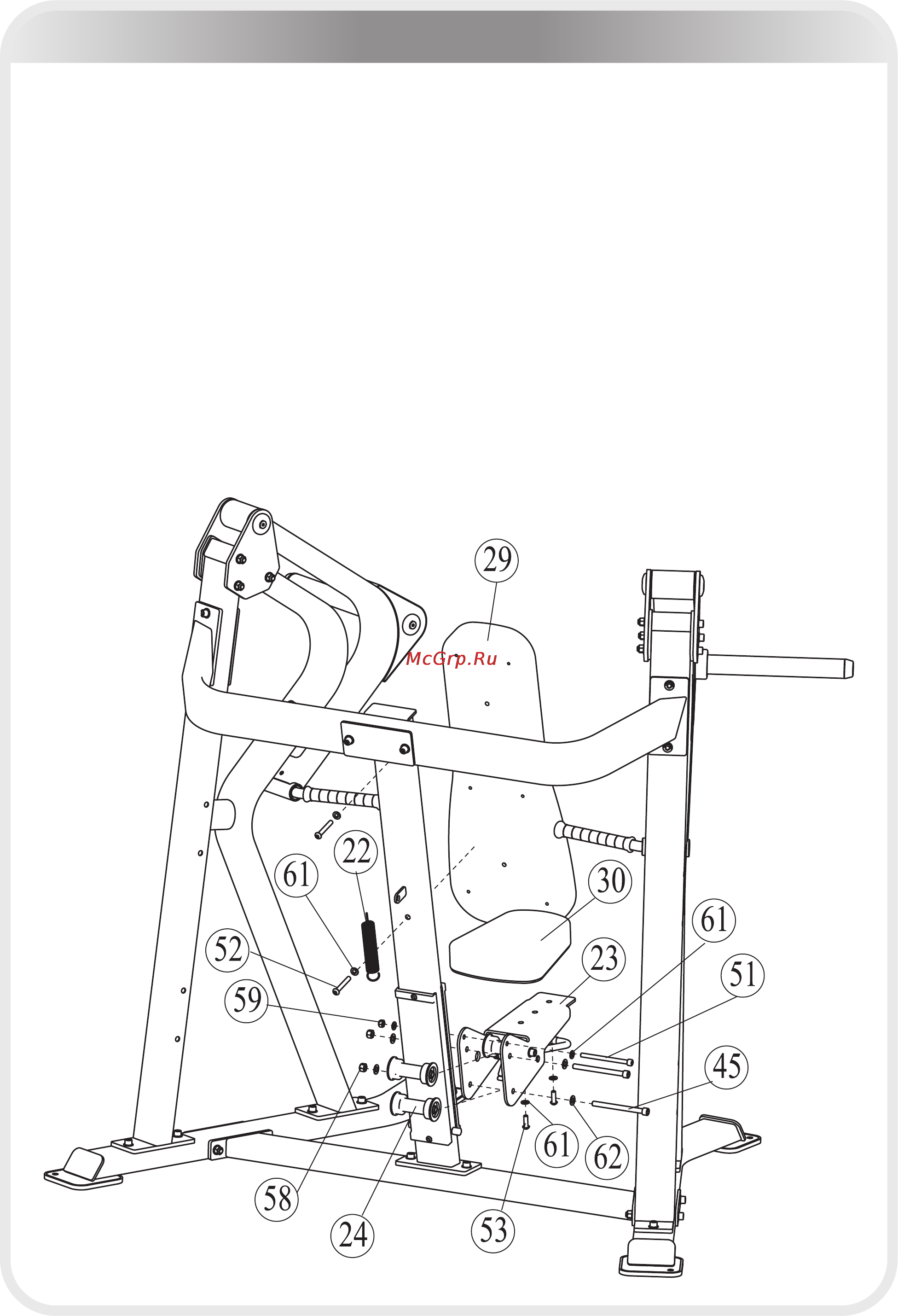

Assembly

Step 4

1. Attach Seat Frame (#23) and two Idler Wheel (#24) to Back Pad Frame (#3),

using:

two M12*145 SHCS (#45) two M12 Nylon lock Nut (#58)

four Φ13*Φ24*1.5 Flat Washer (#62)

2. Attach Pull Spring (#22) to Seat Frame (#23) and Back Pad Frame (#3), using:

one M10*145 SHCS (#51) one M10 Nylon lock Nut (#59)

two Φ11*Φ20*2 Flat Washer (#61)

3. Attach Seat Pad (#30) to Seat Frame (#23), using:

two M10*30 BHCS (#53) two Φ11*Φ20*2 Flat Washer (#61)

4. Attach Back Pad (#29) to Back Pad Frame (#3), using:

two M10*75 BHCS (#52) two Φ11*Φ20*2 Flat Washer (#61)
