РУССКИЙ

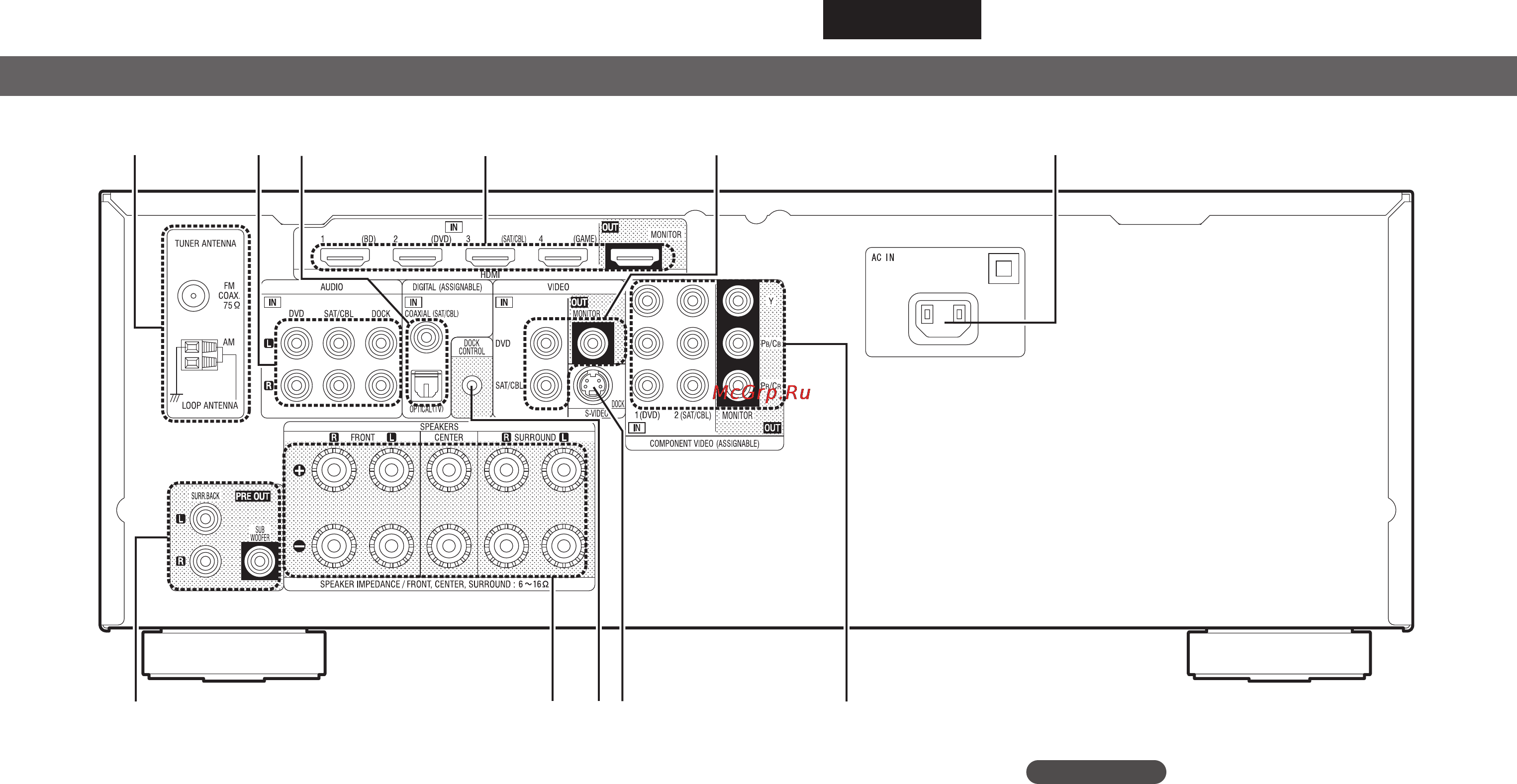

Задняя панель

Информация по кнопкам указана на страница х в скобках ( ).

q t

wer

yuioQ0Q1

q Разъемы PRE OUT ··········································································· (5, 28)

w Клеммы АС ······················································································ (5, 28)

e Штекер DOCK CONTROL ···································································· (16)

r Разъем S-VIDEO ·················································································· (16)

t Разъемы COMPONENT VIDEO ··············································(13, 14)

y Вход переменного тока (AC IN) ·························································· (5)

u Разъемы VIDEO ············································································· (13, 14)

i Разъемы HDMI ····················································································· (12)

o Цифровые аудиоразъемы ··························································· (13, 14)

Q0 Аналоговые аудиоразъемы ························································· (14, 16)

Q1 Клеммы антенны FM/AM ·································································· (16)

ПРИМЕЧАНИЕ

Не прикасайтесь к контактам разъемов на задней панели. Разряд статического

электричества может вывести блок из строя.
