VS-81HDxl - Overview

VS-81HD – Overview

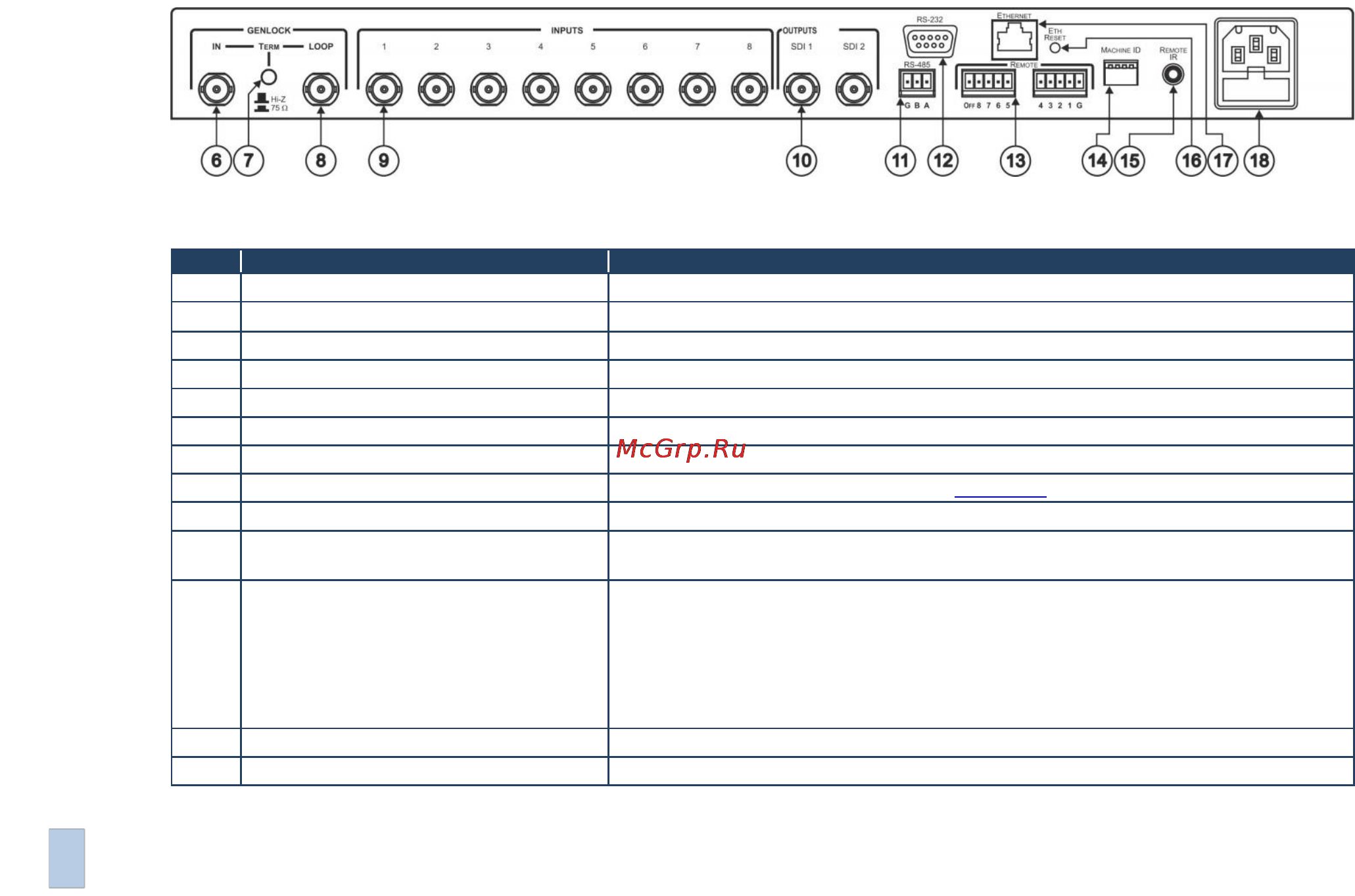

Figure 2: VS-81HDxl 8x1 HD/SD‑SDI Switcher Rear Panel

Feature

Function

GENLOCK IN BNC Connector

Connect to the genlock source

GENLOCK TERM Button

Press to terminate the genlock source (75) or release for looping to another unit

GENLOCK LOOP BNC Connector

Connect to the GENLOCK connector of the next unit in the line

INPUTS BNC Connectors

Connect to the serial digital video sources (from 1 to 8)

OUTPUTS SDI BNC Connectors

Connect the two identical SDI outputs to serial digital video acceptors (1 and 2)

RS-485 Detachable Terminal Block Port

PIN G is for the ground connection; PINs B (-) and A (+) are for RS-485

RS-232 9-pin D-sub Port

Connects to the PC or the Remote Controller via a null-modem

REMOTE Terminal Block Connector

Connect to contact closure switches (see Section 5.5)

MACHINE ID DIP-switches

DIP-switches for setting the machine ID number

REMOTE IR Opening

Connects to an optional external IR receiver unit for controlling the machine via an IR

remote controller (instead of using the front panel IR receiver)

ETH RESET Button

Press to reset to factory default definitions:

First disconnect the power cord and then connect it again while pressing the ETH Factory

Reset button. The unit will power up and load its memory with the factory default definitions

IP number  192.168.1.39

Mask – 255.255.255.0

Gateway – 192.168.1.1

ETHERNET Connector

Connects to the PC or other Serial Controller through computer networking

Power Connector with Fuse

AC connector enabling power supply to the unit
