8.3 Parallel Signal Switching
Figure illustrates a typical setup for switching s-Video and Audio signals in parallel, thus forming an
Audio follow video switcher. For parallel switching, as many switchers may be added as needed. For
example, three VS-55V switchers may be operated in parallel, forming a YUV or and RGB 5x1 switching
system.
Connect a 9-pin D-sub to 9-pin D-sub flat cable between the “ LINK” connectors of the
switchers.
Connect 5 s-Video sources to the input sockets of the VS-55YC switcher using high quality
cables with 4P connectors at the ends.
Connect 5 stereo audio sources to the input sockets of the VS-55A switcher, using high quality
cables with RCA connectors at the ends.
Connect the output of of the VS-55YC to the input of your s-Video acceptor.
Connect the output of of the VS-55A to the input of your Audio acceptor.
Connect the power supply to the VS-55YC and VS-55A.
Operate the VS-55 machines, the sources and the acceptor.
For example, pressing switch #2 of the Input Selector switch bank of the VS-55YC, will
automatically activate switch #2 of the VS-55A.

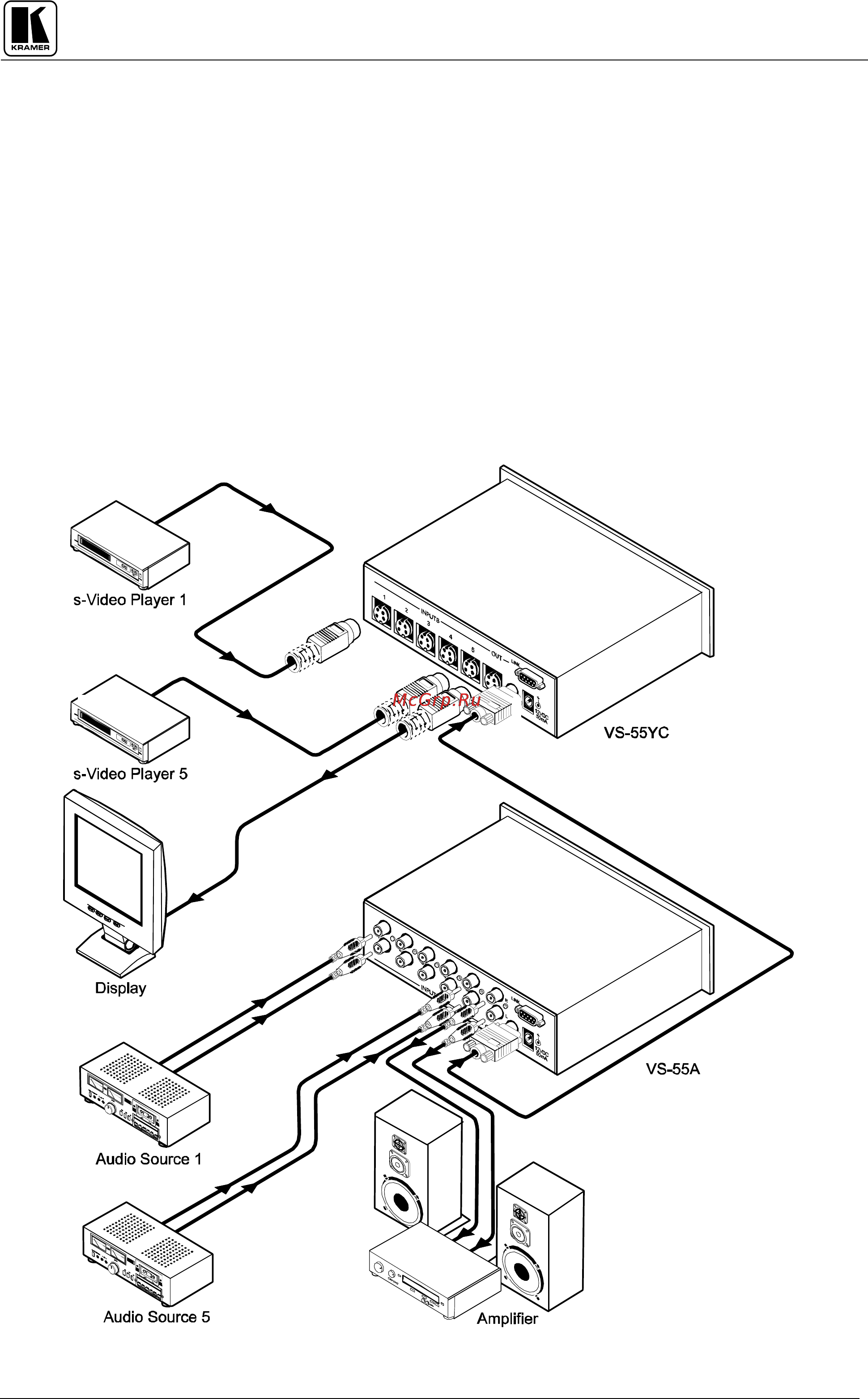

Figure
: Parallel Signal Switching
