2-19
ASUS RS500-E8 V2 Series

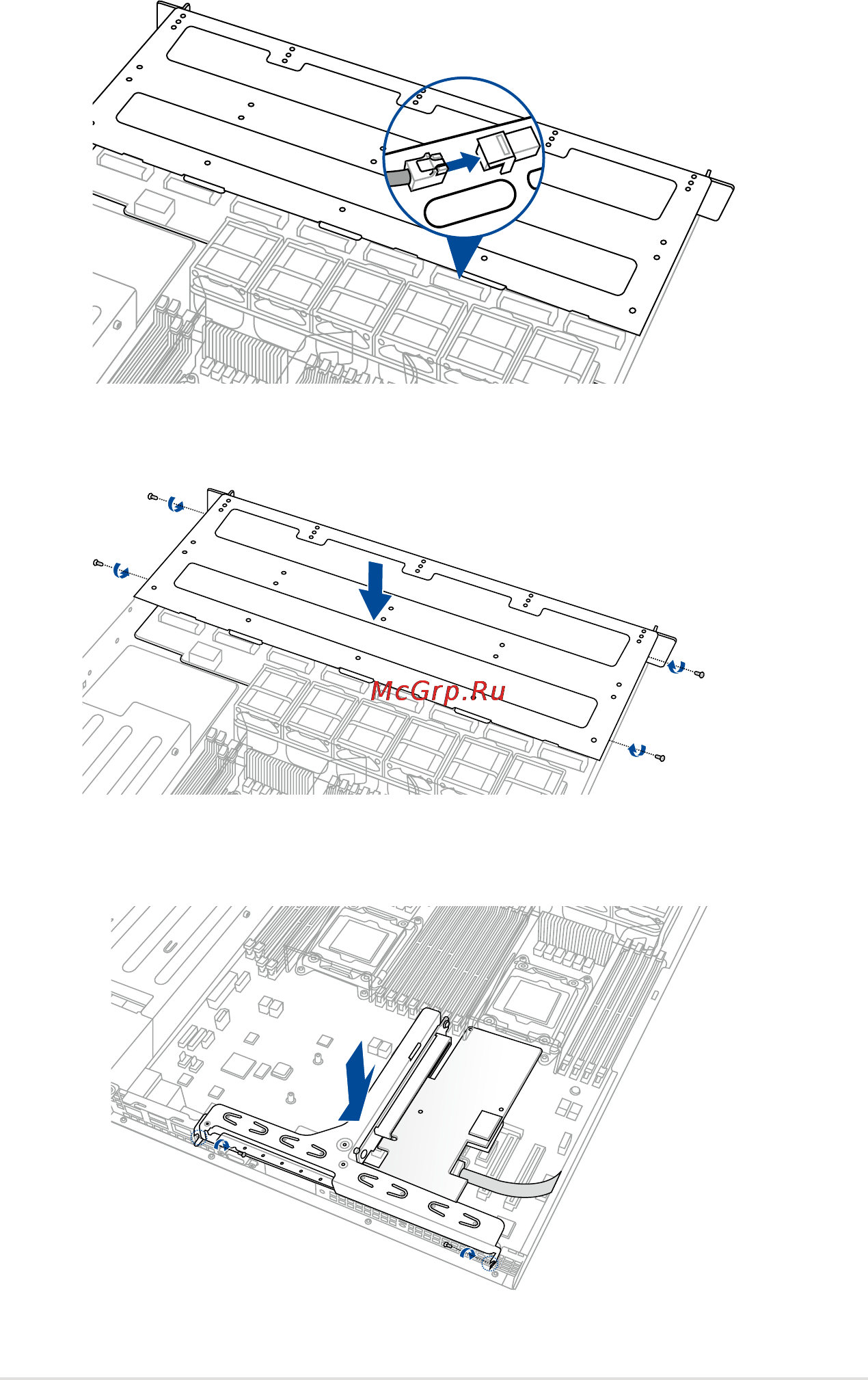

8. Connect the mini SAS HD cable to the backplane.
9. Replace the metal cover and secure it with the screws removed before.
10. Reinstall the riser card bracket and secure it with two screws.
