Removing the Hard Drive | 17

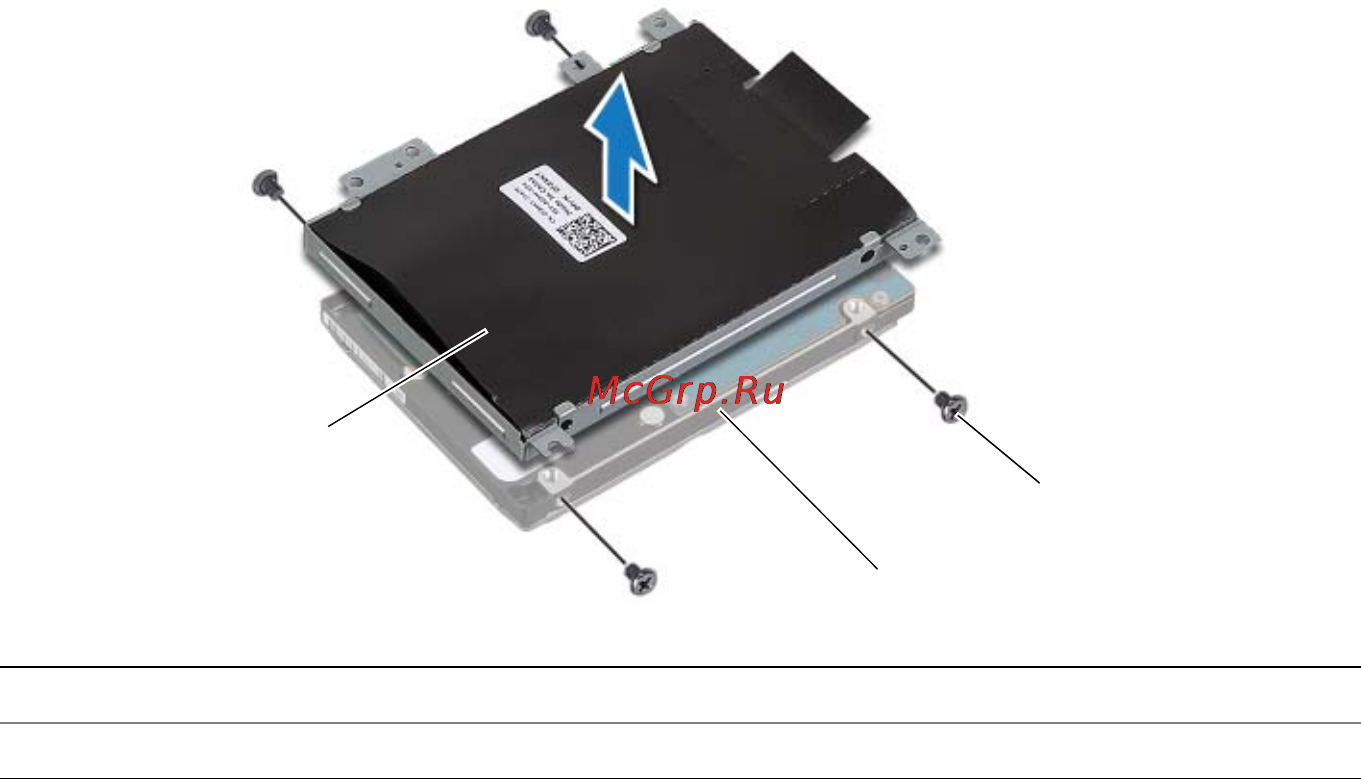

3 Remove the screws that secure the hard drive to the hard-drive bracket.
4 Lift the hard-drive bracket off the hard drive.
1 screws (4) 2 hard drive
3 hard-drive bracket
3
2
1
