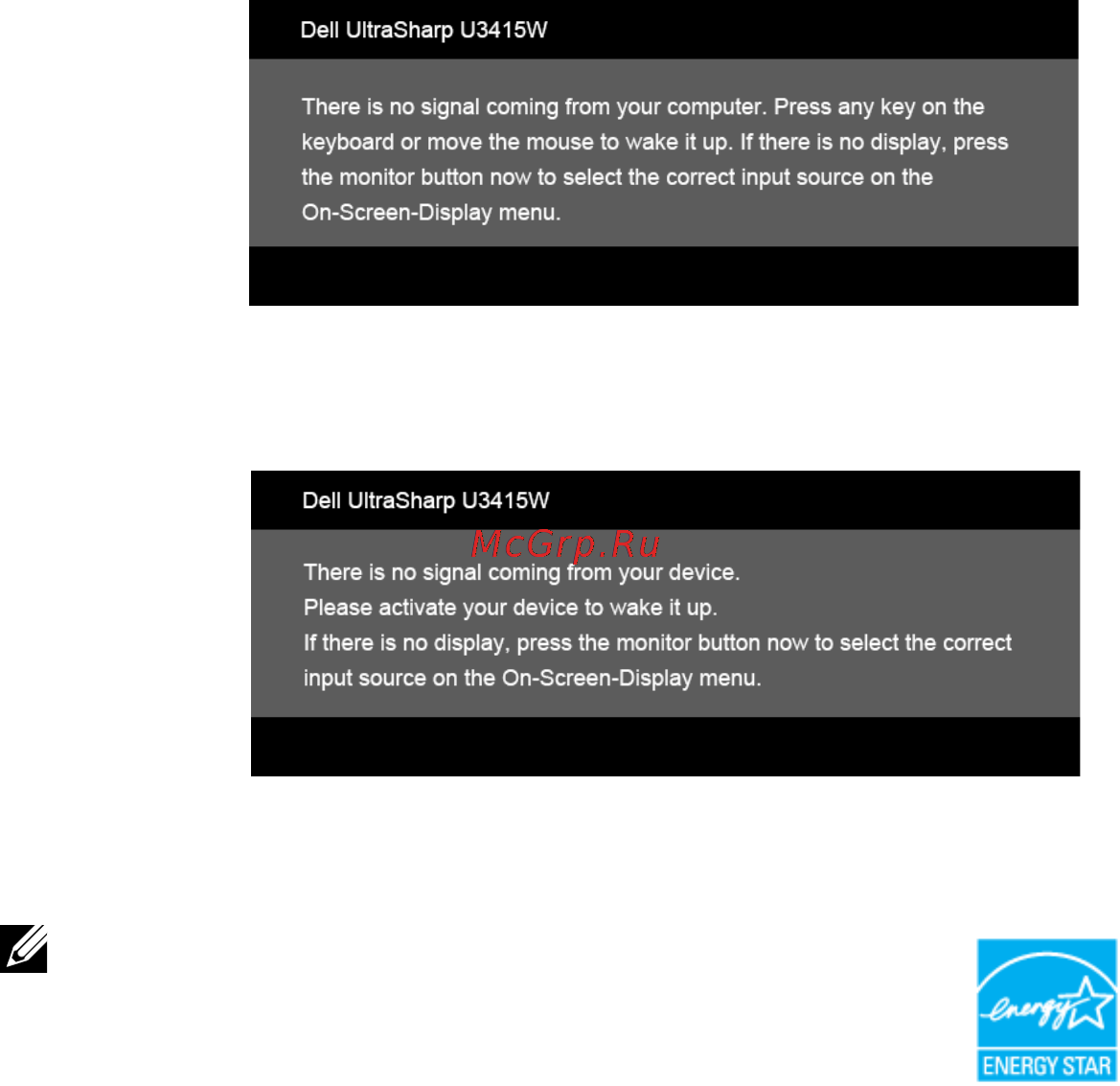

About Your Monitor | 17
HDMI/MHL/Mini DisplayPort/DP input
HDMI/MHL input
Activate the computer and the monitor to gain access to the OSD.
NOTE: This moni
tor is ENERGY STAR
®
-compliant.
