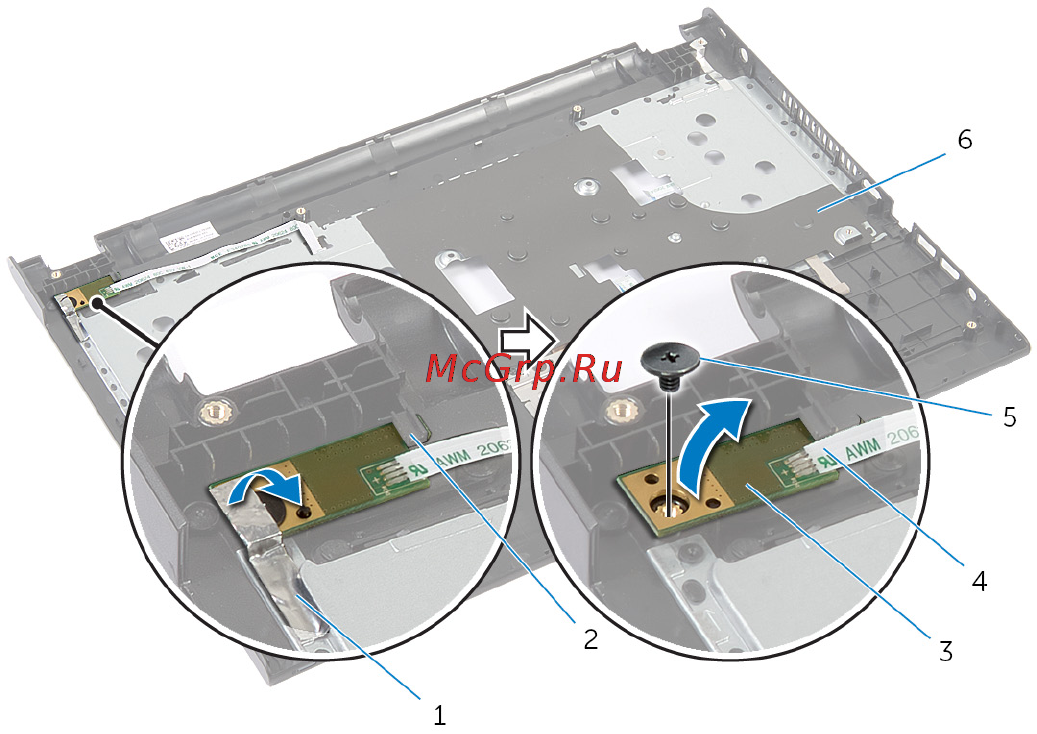

7 Lift the power-button board at an angle and remove it from under the tab
on the palm rest.
1 tape 2 tab
3 power-button board 4 power-button board cable
5 screw 6 palm rest
43
