Avago Technologies
- 30 -
12Gb/s MegaRAID SAS RAID Controllers User Guide
February 2015
Chapter 3: MegaRAID SAS RAID Controller Characteristics
12GB/s MegaRAID SAS RAID Controller Family

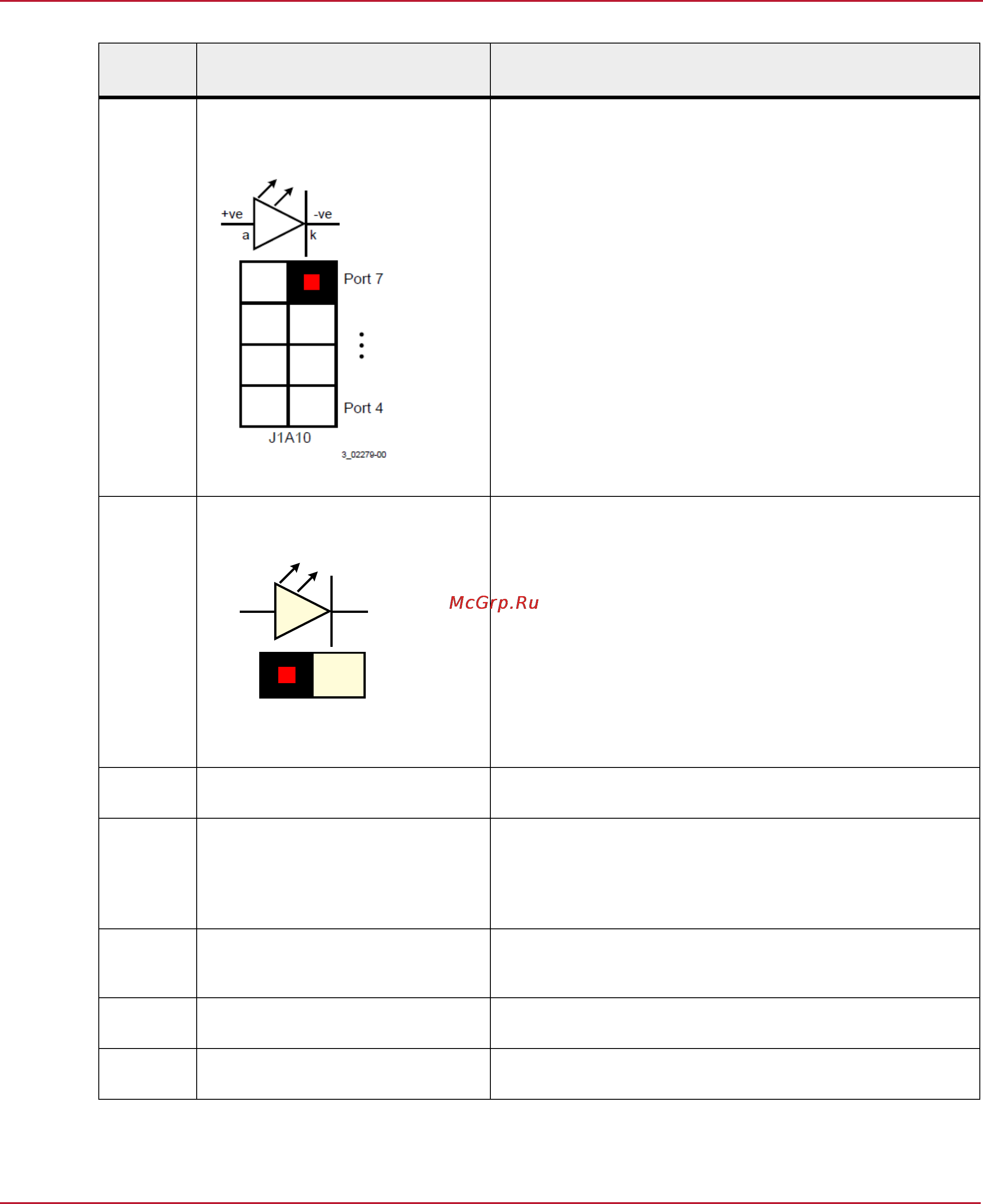

J1A10 Individual PHY and drive fault indication
header
Ports 4 to 7
2x4-pin header
Connects to an LED that indicates whether a drive is in a fault condition.
One LED exists per port. When lit, each LED indicates the corresponding
drive has failed or is in the Unconfigured-Bad state.
The LEDs function in a direct-attach configuration (no SAS expanders
exist). Direct attach is defined as a maximum of one drive connected
directly to each port.
J1A11 Global hard disk drive (HDD) activity LED
header
2-pin connector
Connects to an LED that indicates activity on the drives connected to
the controller.
J1A12 Avago Test header 2-pin connector
Reserved for Avago use.
J1B1 Advanced software options hardware key
header
3-pin header
Enables support for selected advanced features, such as Recovery,
CacheCade, FastPath, and SafeStore disk encryption.
Refer to the MegaRAID Advanced Services Hardware Key Quick
Installation Guide for more information.
J1B2 SAS Port 0 through Port 3 external
connector
One SFF-8644 mini-SAS HD-4e external connector
Connects the controller by cable to an enclosure containing SAS drives
or SATA drives.
J2A1 SAS Port 4 through Port 7 internal
connector
One SFF-8643 mini-SAS HD-4i internal connector
Connects the controller by cable to SAS drives or SATA drives.
J4A1 CacheVault Flash Module (ONFI) interface 80-pin connector
Connects the RAID controller to a flash module.
Table 5 Jumpers and Connectors (Continued)
Jumper/
Connector
Type Description
B
-$
YH YH
DN
