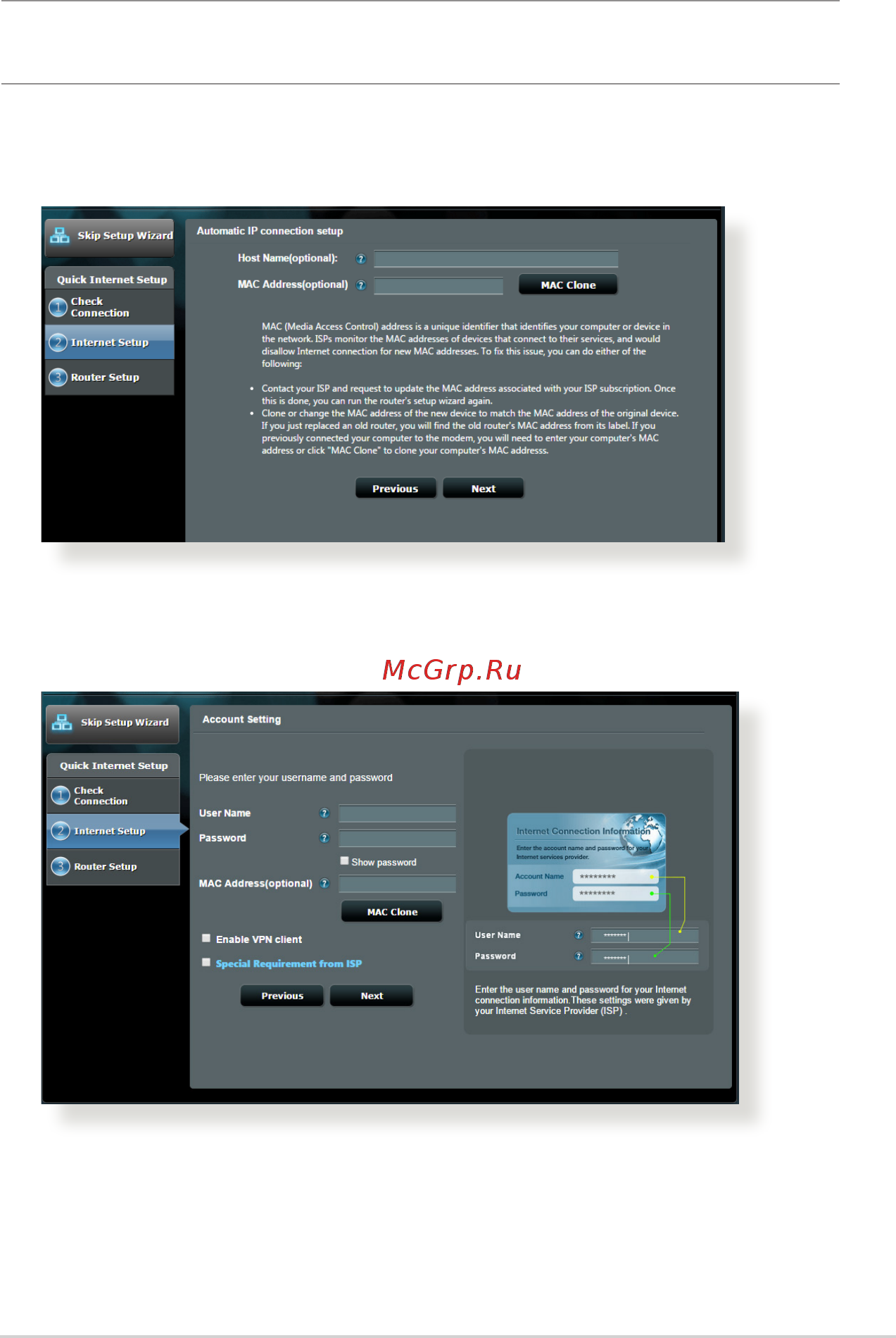

2. The wireless router automatically detects if your ISP

connection type is Dynamic IP, PPPoE, PPTP and L2TP. Key

in the necessary information for your ISP connection type.

IMPORTANT! Obtain the necessary information from your ISP about the

Internet connection type.

for Automatic IP (DHCP)

for PPPoE, PPTP and L2TP
