22 | English

1 609 929 M41 | (23.8.07) Bosch Power Tools

The lithium ion battery can be charged at any

time without reducing its service life. Interrupt-

ing the charging procedure does not damage the

battery.

The Li-ion battery is protected against deep dis-

charging by the “Electronic Cell Protection

(ECP)”. When the battery is empty, the machine

is switched off by means of a protective circuit:

The inserted tool no longer rotates.

Do not continue to press the

On/Off switch after the ma-

chine has been automatically switched off. The

battery can be damaged.

Removing the Battery

The battery 8 is equipped with two locking lev-

els that should prevent the battery from falling

out when pushing the battery unlocking button

13 unintentionally. As long as the battery is in-

serted in the power tool, it is held in position by

means of a spring.

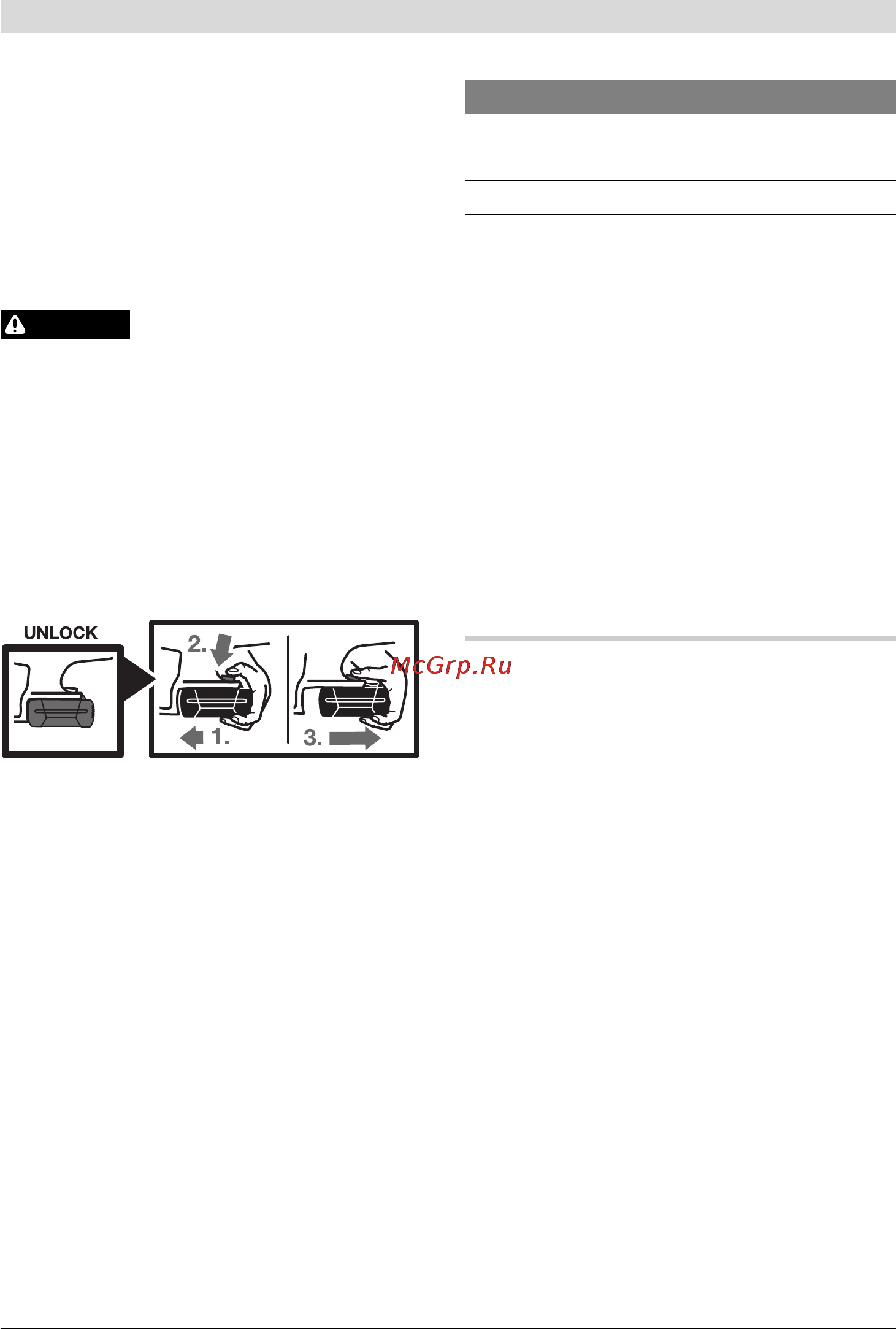

To remove the battery 8:

– Push the battery against the base of the pow-

er tool (1.) and at the same time press the

battery unlocking button 13 (2.).

– Pull the battery out of the power tool until a

red stripe becomes visible (3.).

– Press the battery unlocking button 13 again

and pull out the battery completely.

Battery Charge-control Indication

(see figure A)

The three green LEDs of the battery charge-con-

trol indicator 11 indicate the charge condition of

the battery 8. For safety reasons, it is only pos-

sible to check the status of the charge condition

when the machine is at a standstill.

Push button 12 to indicate the charge condition

(also possible when the battery is removed).

The battery charge-control indicator automati-

cally goes out after approx. 5 seconds.

When no LED lights up after pushing button 12,

then the battery is defective and must be re-

placed.

During the charging procedure, the three green

LEDs light up one after the other and briefly go

out. The battery is fully charged when the three

green LEDs light up continuously. The three

LEDs go out again approx. 5 minutes after the

battery has been fully charged.

The battery is equipped with a NTC temperature

control which allows charging only within a tem-

perature range of between 0 °C and 45 °C. A

long battery service life is achieved in this man-

ner.

Auxiliary Handle (see figure B)

f Before any work on the machine (e. g.,

maintenance, tool change, etc.) as well as

during transport and storage, set the rota-

tional direction switch to the centre posi-

tion. Unintentional actuation of the On/Off

switch can lead to injuries.

f Operate your machine only with the auxilia-

ry handle 7.

The auxiliary handle 7 can be set to any position

for a secure and low-fatigue working posture.

Turn the bottom part of the auxiliary handle 7 in

counterclockwise direction and swivel the auxil-

iary handle 7 to the desired position. Then

retighten the bottom part of the auxiliary handle

7 by turning in clockwise direction.

The clamping band 14 of the auxiliary handle

must be seated in the corresponding groove.

WARNING

LED Capacity

Continuous lighting 3 x green ≥ 2/3

Continuous lighting 2 x green ≥ 1/3

Continuous lighting 1 x green <1/3

Flashing light 1 x green Reserve

OBJ_BUCH-487-001.book Page 22 Thursday, August 23, 2007 9:18 AM
