TL-WA801ND 300Mbps Wireless N Access Point User Guide

2) Multi-SSID: This mode allows the device to support up to four SSIDs.

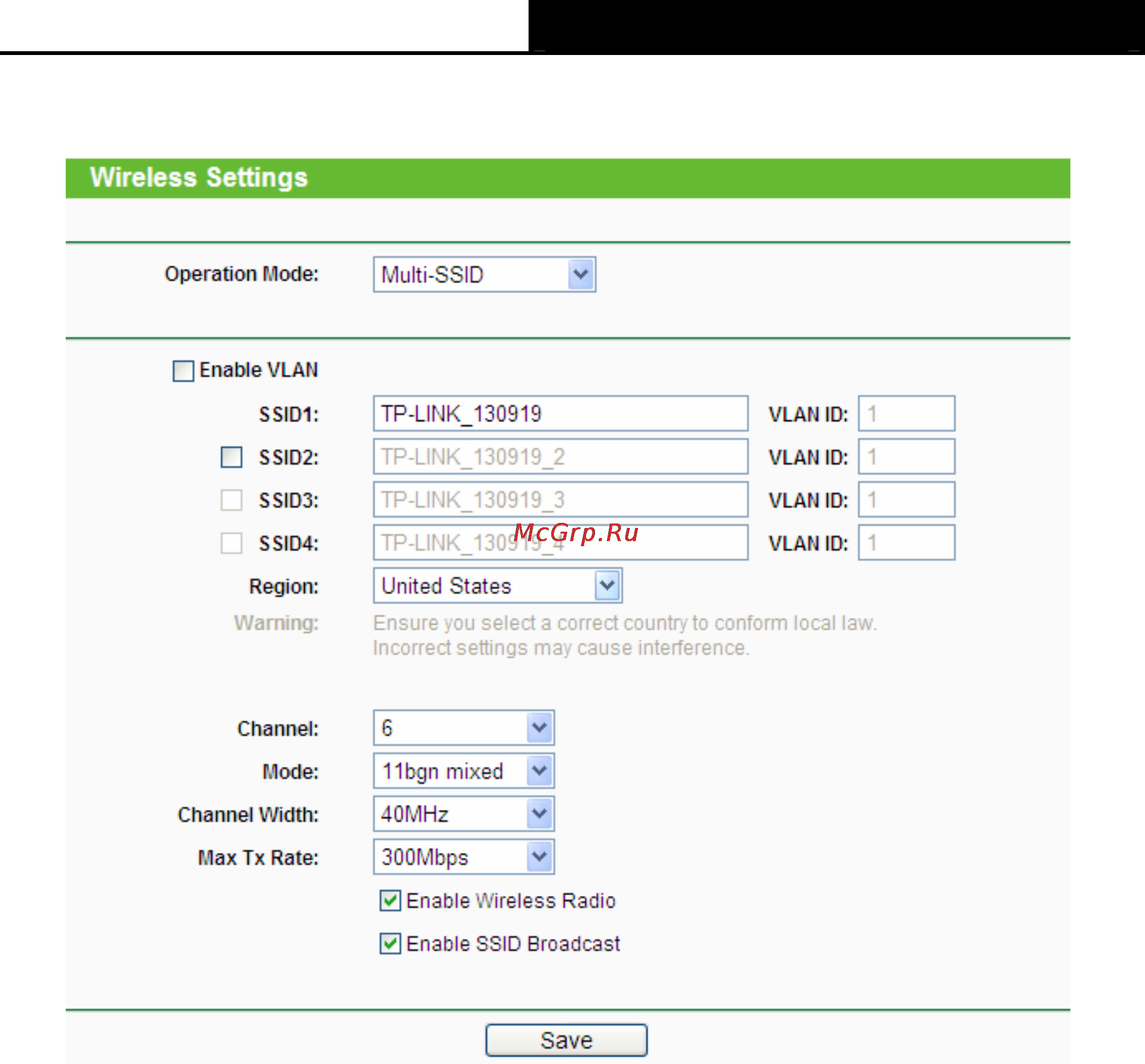

Figure 4-11 Wireless Settings in Multi-SSID mode

¾ Enable VLAN - Check this box and then you can change the VLAN ID of each SSID. If you

want to configure the Guest and Internal networks on VLAN, the switch you are using must

support VLAN. As a prerequisite step, configure a port on the switch for handling VLAN

tagged packets as described in the IEEE802.1Q standard, and enable this field.

¾ SSID (1-4) - Up to four SSIDs for each BSS (Basic Service Set) can be entered in the filed

SSID1 ~ SSID4. The name can be up to 32 characters. The same name (SSID) must be

assigned to all wireless devices in your network. If Enable VLAN is checked, the wireless

stations connecting to SSID of different VLANID can not communicate with each other.

¾ VLANID (1-4) - Provide a number between 1 and 4095 for VLAN. This will cause the device

to send packets with VLAN tags. The switch connecting with the device must support VLAN

IEEE802.1Q frames. The wireless stations connecting to the SSID of a specified VLAN ID

can communicate with the PC connecting to the port with the same VLAN ID on the Switch.

¾ Region - Select your region from the pull-down list. This field specifies the region where the

wireless function of the device can be used. It may be illegal to use the wireless function of

the device in a region other than one of those specified in this field. If your country or region

is not listed, please contact your local government agency for assistance.
