TL-WA801ND 300Mbps Wireless N Access Point User Guide

1. Configure the Access Point

Configure the Access Point

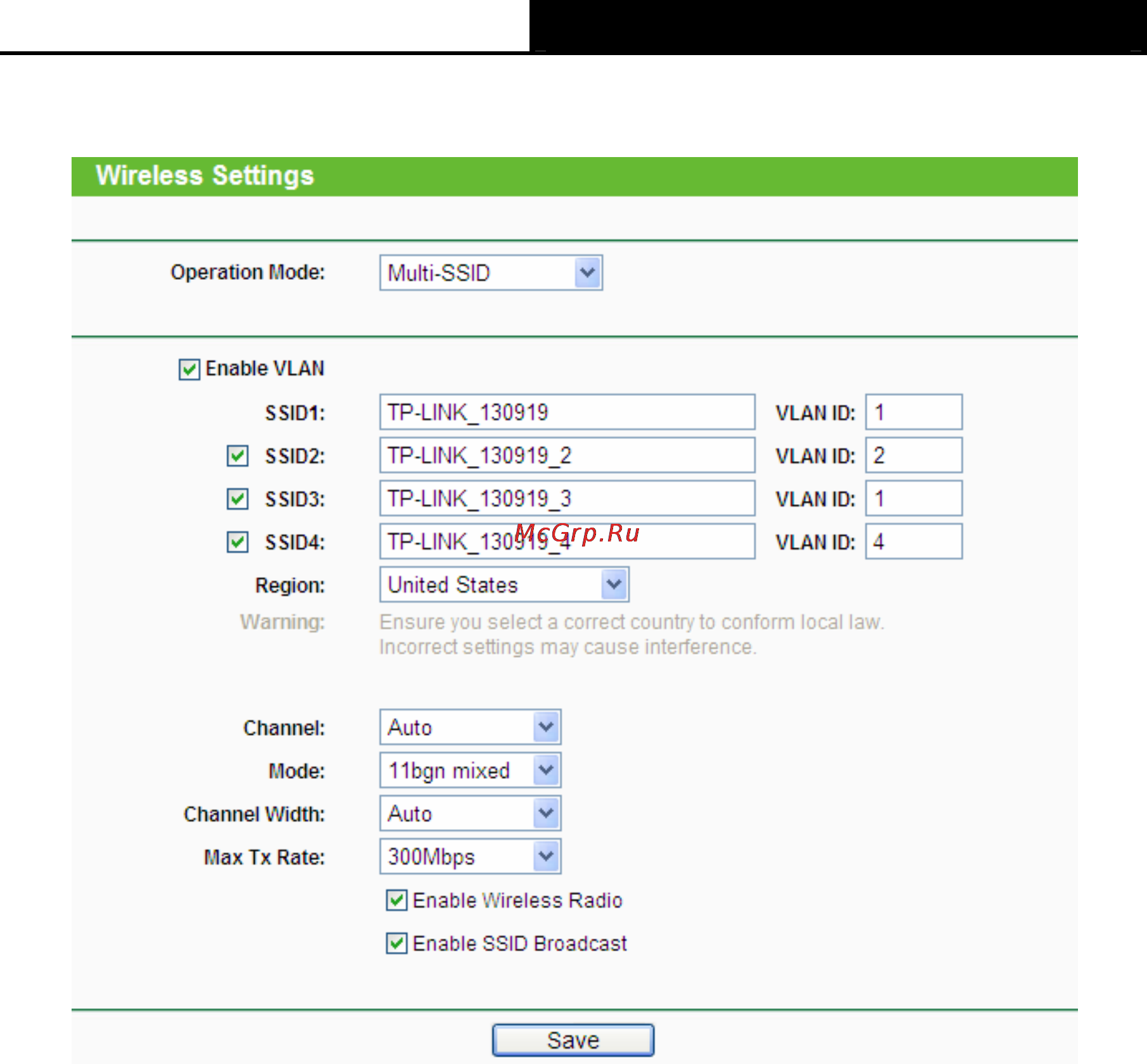

z Select Multi-SSID as the operation mode of TL-WA801ND.

z Select the checkbox before Enable VLAN to enable VLAN function for this access point.

z Configure the SSID and its corresponding VLAN ID. The detailed parameters are shown as

the above figure.

z STA1, STA2, STA3 and STA4 join to the wireless network with SSID1, SSID2, SSID3 and

SSID4 respectively.

z Click Save to apply the current security settings for the selected SSID.

)

Note:

1. The wireless STAs join to the network with different VLAN IDs cannot communicate with each

other, for example, STA1 and STA2.

2. The wireless STAs join to the network with the same VLAN ID can communicate with each

other, for example, STA1 and STA3.

3. All wireless STAs can log on to the Web management page of TL-WA801ND and manage the

access point, for example, STA1, STA2, STA3 and STA4.

4. All the packets received in the wired network from the wireless STA will be added a

corresponding VLAN Tag of the wireless STA, unless the VLAN ID of the wireless network is

set to 1.
