BEFORE OPERATING (CONNECTIONS)
8
<DRB1451>
En
CONNECTIONS
Before making or changing connections, switch off the power and disconnect the power cord from the AC outlet.

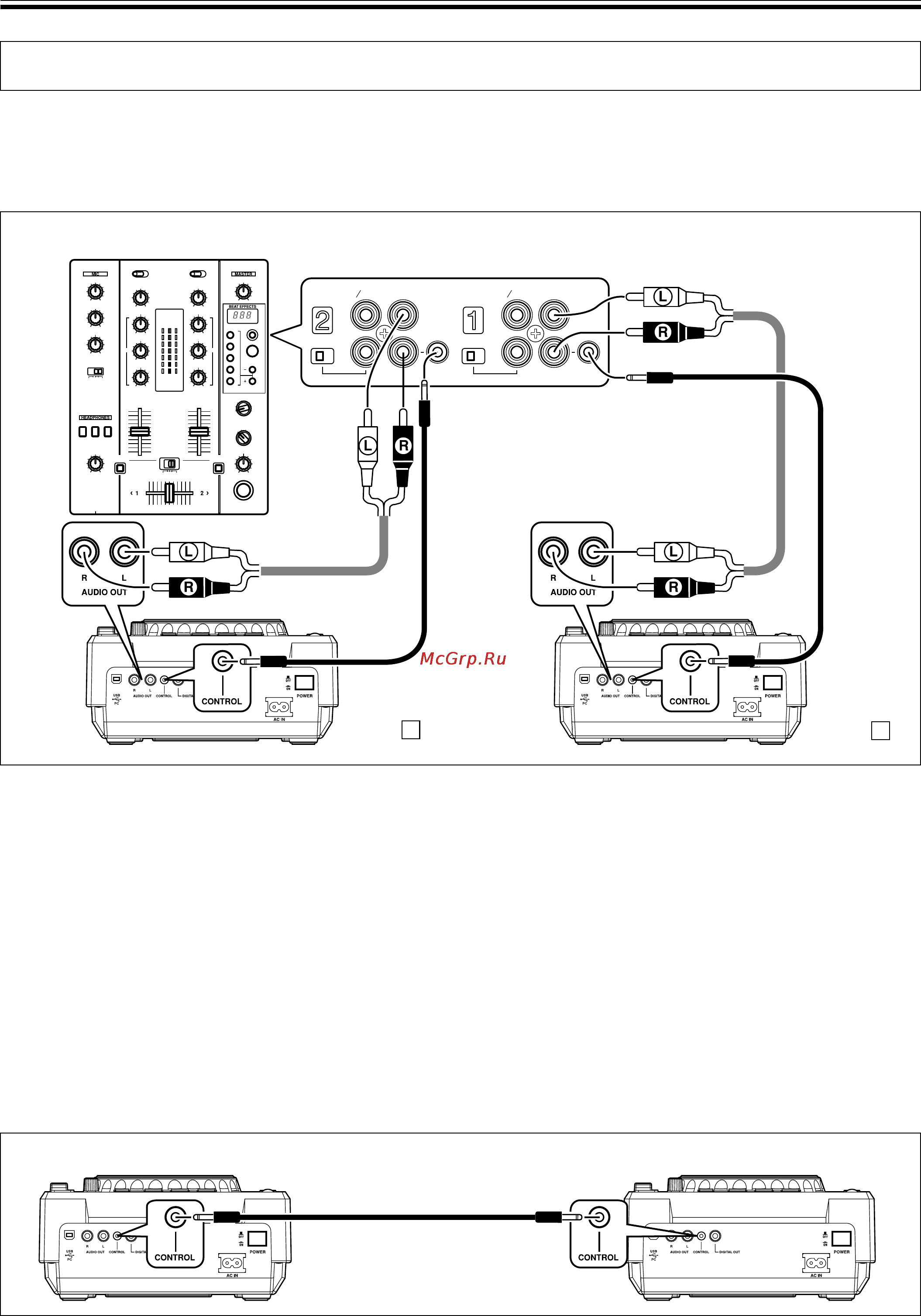

1. Connection to a Pioneer DJ mixer (audio output and CONTROL connector)
Using the supplied audio cables, connect the white plug into the L (left) terminal and the red plug to the R (right) terminal.
Connect the supplied control cable to enable control of the unit from the mixer for fader start play and back cue.
When connecting to a DJ mixer (DJM-400)
÷ When connecting to DJM-600, DJM-300 and DJM-500, connect as shown in the accompanying illustration.
÷ When connecting to DJM-909 and DJM-707, connect CH-1 CD with A PLAYER, CH-2 CD with B PLAYER using the supplied
audio cables.
÷ When connecting to DJM-3000, connect A PLAYER to LINE 1 of CH-1, and B PLAYER to LINE 3 of CH-2.
÷ When connecting to the DJM-1000, use the supplied audio cable to connect one set of the CD/LINE connectors to PLAYER A
and the other CD/LINE connectors to PLAYER B. For digital audio signal output, use a coaxial digital signal cable (sold
separately) to connect the CDJ-400’s DIGITAL OUT connector to one of the DJM-1000’s DIGITAL IN connectors (channel 4 to 6).
÷ When connecting to the DJM-800, use the supplied audio cable to connect one set of the CD/LINE connectors to PLAYER A and
the other set of CD/LINE connectors to PLAYER B. For digital output of audio signals, use a coaxial digital signal cable (sold
separately) to connect the CDJ-400’s DIGITAL OUT connector to the DJM-800’s DIGITAL IN connector.
÷ When connecting to the DJM-700, use the supplied audio cable to connect one set of CD/LINE connectors to PLAYER A and the
other set of CD/LINE connectors to PLAYER B.
÷ When connecting to a audio mixer other than the ones listed above, connect the unit’s AUDIO OUT terminal to the mixer’s line
in terminal, or the AUX terminal (* do not connect to the PHONO terminal, since distortion or improper operation may occur).
2. Connecting control cable for relay play
Alternating playback can be automatically performed when the CONTROL connectors of the two units are connected with the
supplied control cable. (☞P.19)
Supplied control cable
CDJ-400 CDJ-400
DJM-400
CDJ-400 B
CDJ-400 A
L
R
LINE PHONO
LINE
PHONO
CD
CONTROL
L
R
LINE PHONO
LINE
PHONO
CD
CONTROL
Supplied audio
cable
Supplied
audio cable
Supplied
control cable
Supplied
control
cable
