3 Locate mounting location using a level and the

installation template.

4 Mark the pilot hole locations.

5 Drill the pilot holes using a 1/8-inch drill bit. If

a pilot hole DOES NOT hit a stud, widen that

pilot hole using a 1/4-inch drill bit and install

a wall anchor at that location (fig. 8).

6 Using the 1.5-inch Phillips screws, mount the

wall brackets as shown. Please note, only the

MartinLogan Motion 4 requires the additional

wall bracket spacer (fig. 8).

7 Hang the speaker, guiding the wall mount bolt

into the wall bracket’s keyhole.

MOVING OR REMOVING THE LOGO BADGE

To remove the logo badge gently pull it away

from the speaker grill. To reinstall the logo badge

insert it between the speaker grill and cabinet at

the desired location and press it into place (fig. 9).

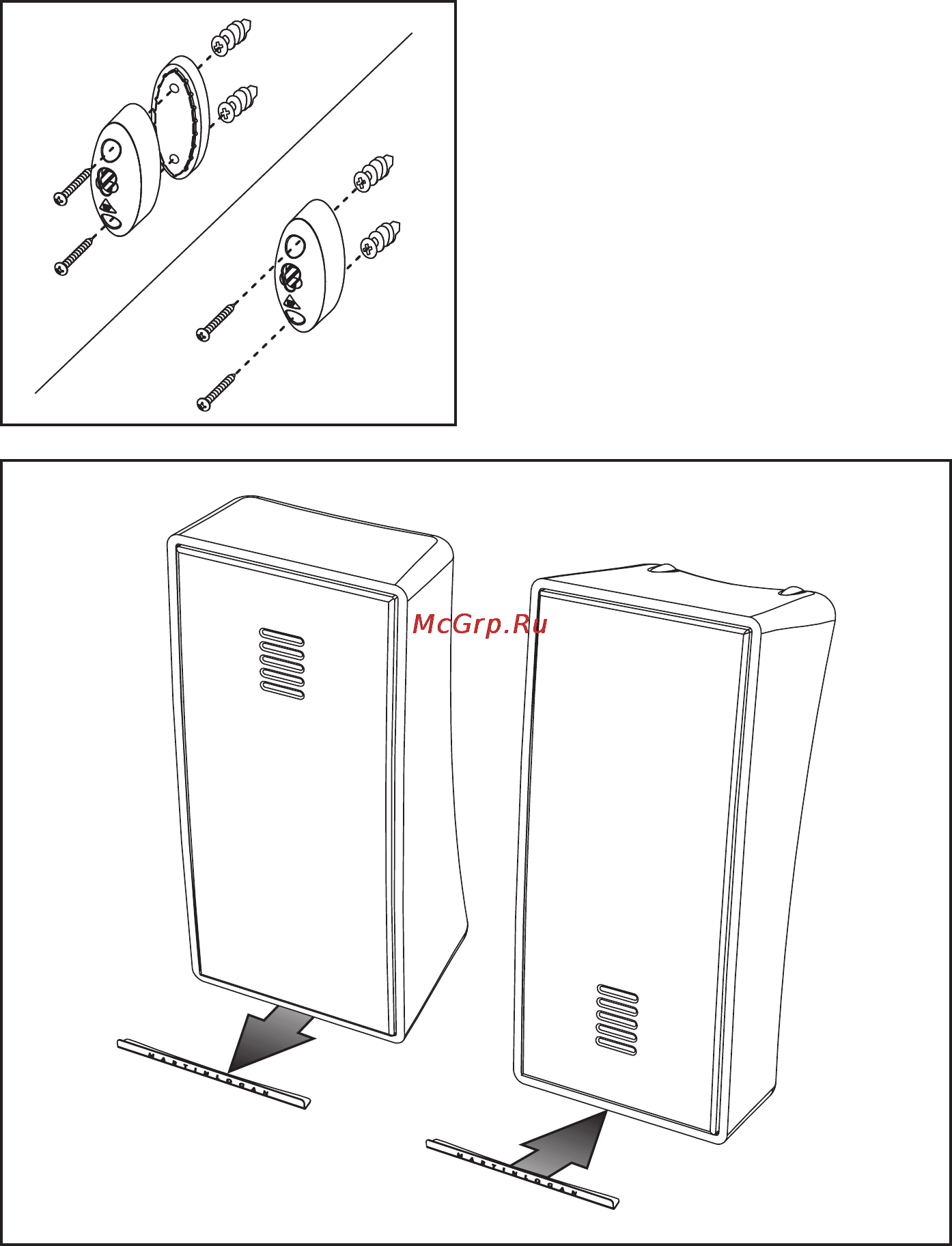

Fig. 9

Fig. 8

(Motion 4)

(Motion 2)
