DA-682A Linux Softrware Managing Communications

3-39

NOTE

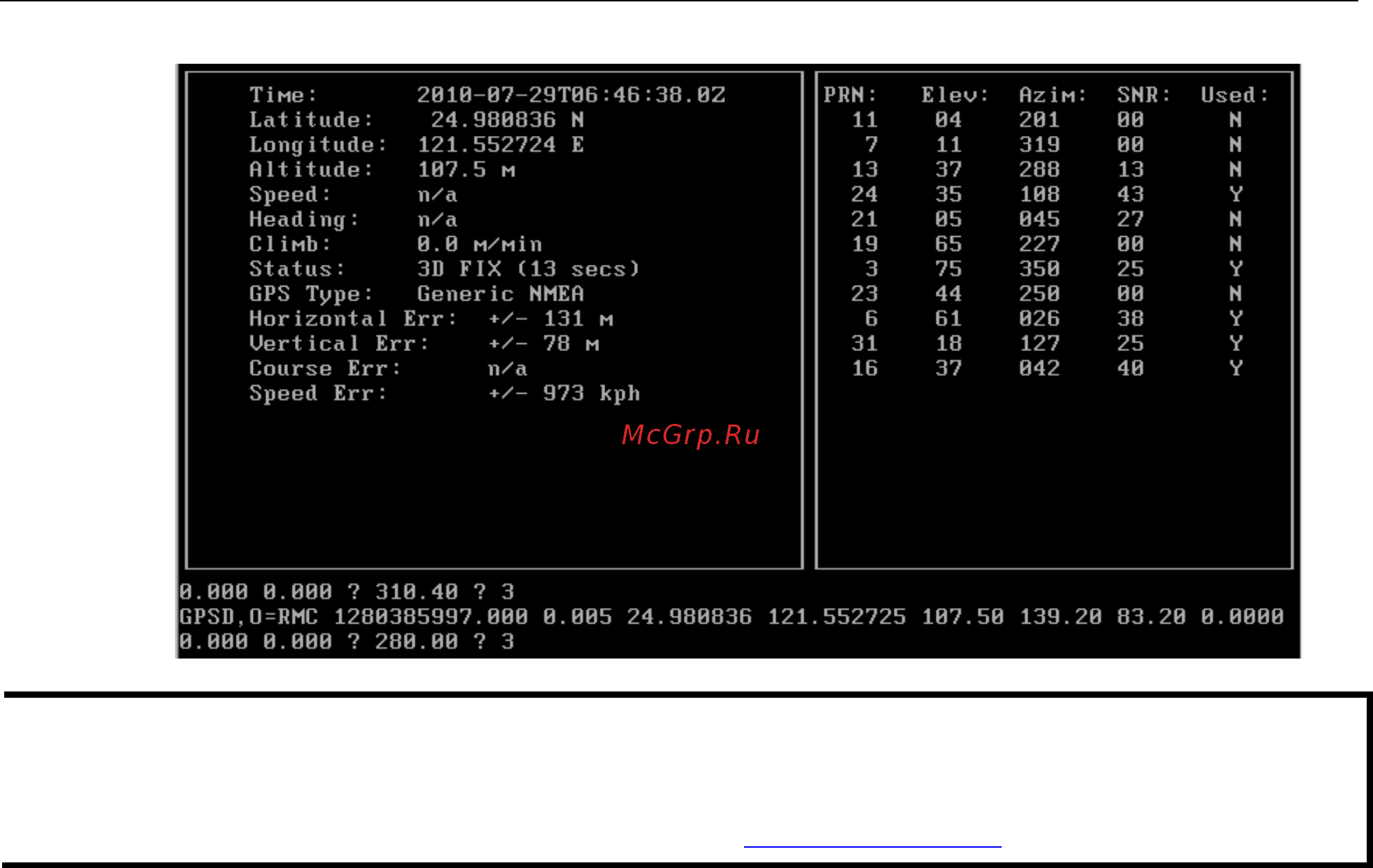

Use the GNU system manual command to get more information on the GPS daemon interf

ace and client:

moxa@Moxa:~# man gpsd

moxa@Moxa:~# man cgps

Or visit the GPS project website for more information:

http://gpsd.berlios.de/
