IV. Installation.
The heater should be situated at
least 1.8 meter above the floor. Fig.2
The plug and power cord should
be installed on height unavailable for
children.
You need the following
for installation: 2 soft inserts, 2
screws, 4 gaskets (all mentioned
you will find in gift box). Fig.3.
Please, insert the gaskets
into the holes in body. Fig. 4.
You should make the
holes in the wall on 59,6 cm from each other horizontally and at least on 2 m over the floor. This way
the heater should be at least on 1.8 m from the floor level. See fig. 2, 5 and 6
The depth of the holes in wall should be
42-45 mm, of 8 mm diameter. The
tighten screw should be protruded from
the wall on 18-20 mm.
You may use cord keeper inside the
heater if the power cord is too long.
After the heater installation, you should
tighten the screws.
V. Appliance operation
Remote control
Observing polarity, insert the batteries into the remote control.
When pressing a button on the remote control, you will hear tones.
When you will press the ON/OFF button, the “POLARIS” inscription will light on, the fan will be
turned on, the swing leafs will be opened, and the air stream will go inside the room. You will see the
inside temperature on the display.
When you will press the "HEATER“ button on the RC, starts the first heating mode – 1kW (2
indicators light on for this mode from left to right side). If you will press on the "HEATER“ button one
more time, you will turn on the second heating mode 2kW (4 indicators light on for this mode from
left to right side).
Temperature setting. If you press the button, the temperature rises on 1 degree. The temperature range
is 18-45
0
С. If you already set the temperature on 45
0
С and press the button one more time. The
temperature will be set on 18
0
С.
Setting of air flow swing. Press “Swing” button in order to turn this function on, press the button one
more time in order to turn in off.

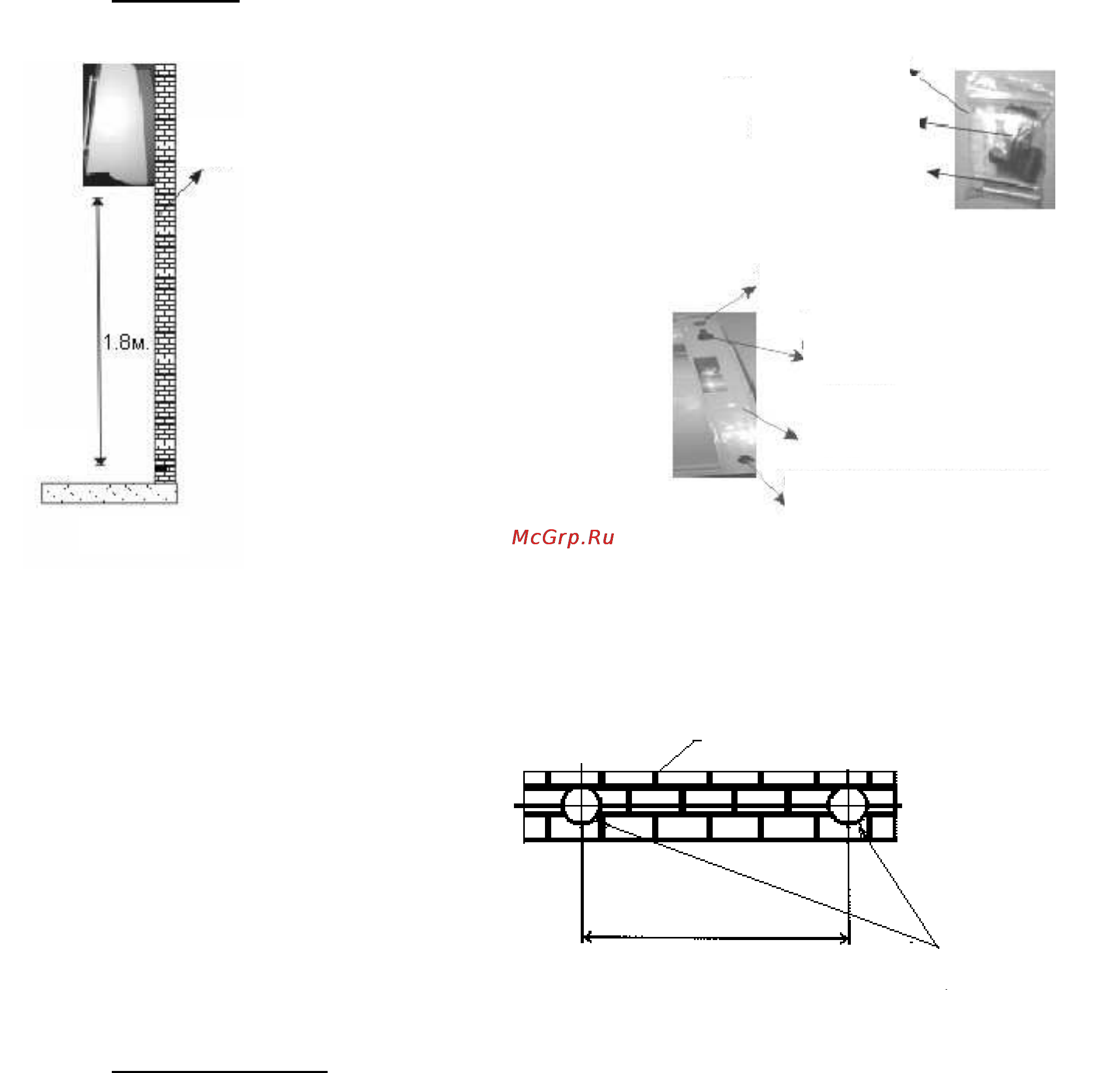

Fig. 4
The hole for gasket
The hole for the gasket
Body
The hole for the screw
Soft
inserts
Gasket
Screws
Fig. 3
Fig 2
floor
Wall
Fig 5
59,6 cm
The distance between
the holes
Holes in wall
Wall
