Инструкция по эксплуатации Страница: 17

MSI FM2-A55M-E33 Инструкция по эксплуатации онлайн [17/204] 101029









       

         



 





   









        

          



  

      









         

















































Содержание

Похожие устройства

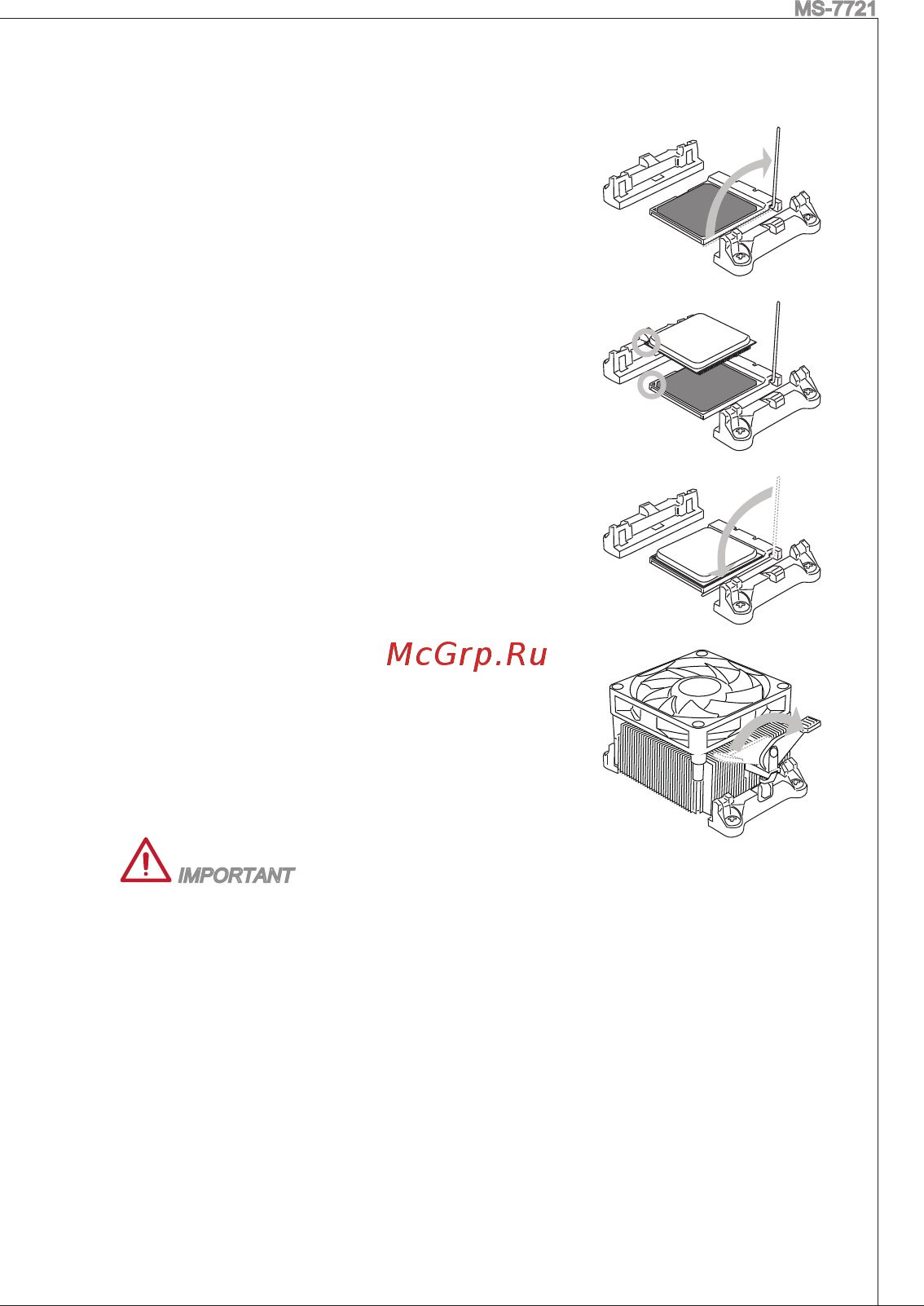

MS 7721 Follow the steps below to install the APU cooler correctly Wrong installation will cause the damage of your APU mainboard 1 Pull the lever sideways away from the socket Make sure to raise the lever up to a 90 degree angle 2 Look for the gold triangle of the APU The gold triangle should point as shown in the picture The APU can only fit in the correct orientation 3 If the APU is correctly installed the pins should be completely embedded into the socket and can not be seen Please note that any violation of the correct installation procedures may cause perma nent damages to your mainboard 4 Press the APU down firmly into the socket and close the lever As the APU is likely to move while the lever is being closed always close the lever with your fingers pressing tightly on top of the APU to make sure the APU is properly and completely embedded into the socket 5 Position the cooling set onto the retention mecha nism Hook one end of the clip to hook first 6 Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism Locate the Fix Lever and lift up it 7 Fasten down the lever 8 Attach the APU Fan cable to the APU fan con nector on the mainboard A IMPORTANT While disconnecting the Safety Hook from the fixed bolt it is necessary to keep an eye on your fingers because once the Safety Hook is disconnected from the fixed bolt the fixed lever will spring back instantly Confirm that the APU cooler has formed a tight seal with the APU before boot ing your system Please refer to the documentation in the APU cooler package for more details about APU cooler installation 17
