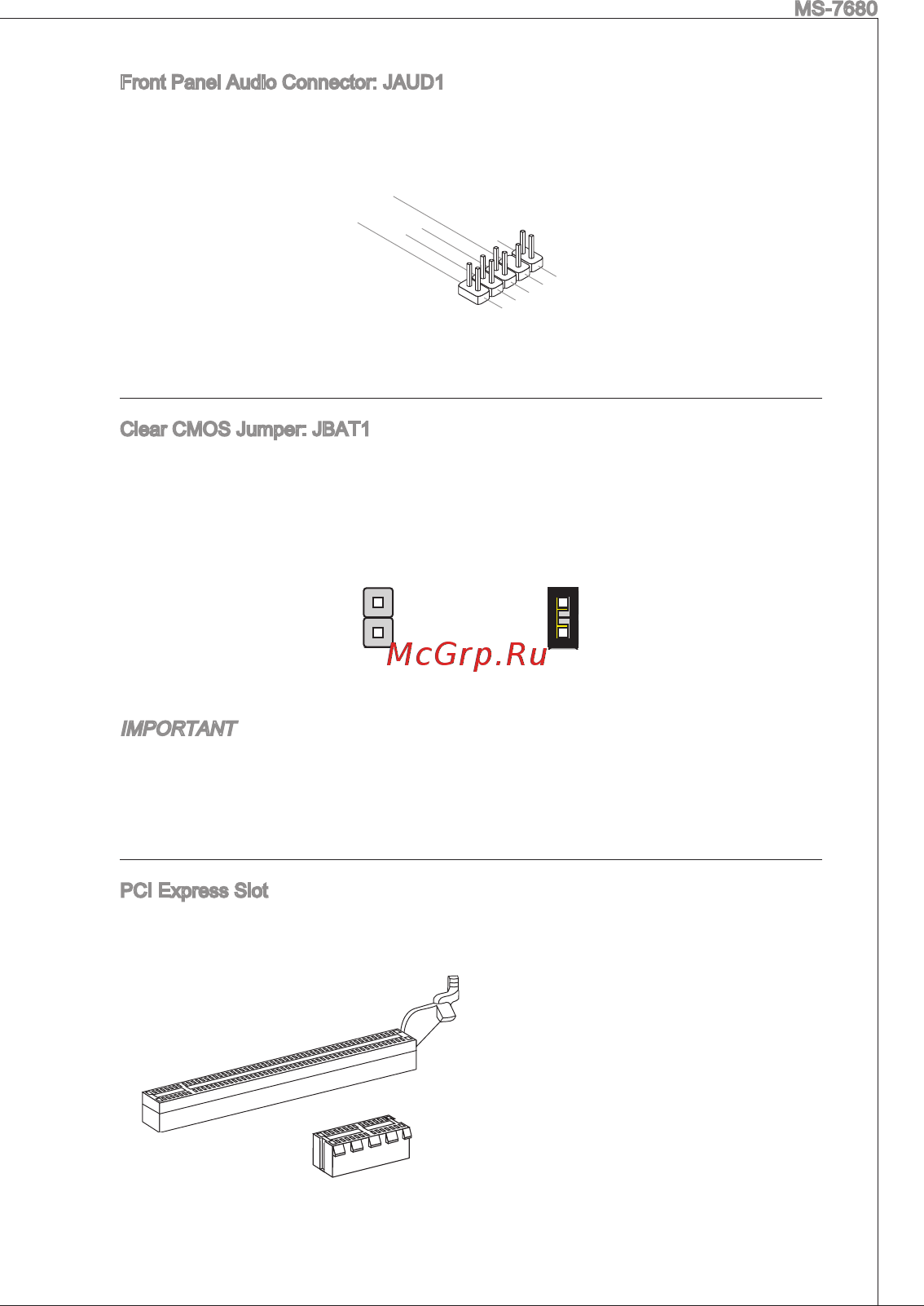

MS 7680 Front Panel Audio Connector JAUD1 This connector allows you to connect the front panel audio and is compliant with InteF Front Panel I O Connectivity Design Guide Clear CMOS Jumper JBAT1 There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data With the CMOS RAM the system can automatically boot OS every time it is turned on If you want to clear the system configuration please temporarily short these two pins to clear data by using a metal object iI Keep Data Clear Data IMPORTANT You can dear CMOS by touching two pins once with a metal object while the system is off Avoid clearing the CMOS while the system is on it will damags the mainboard PCI Express Slot The PCI Express slot supports the PCI Express interface expansion card The PCIE x16 slot The PCIE x slot 19
