VM3404H / VM3909H User Manual

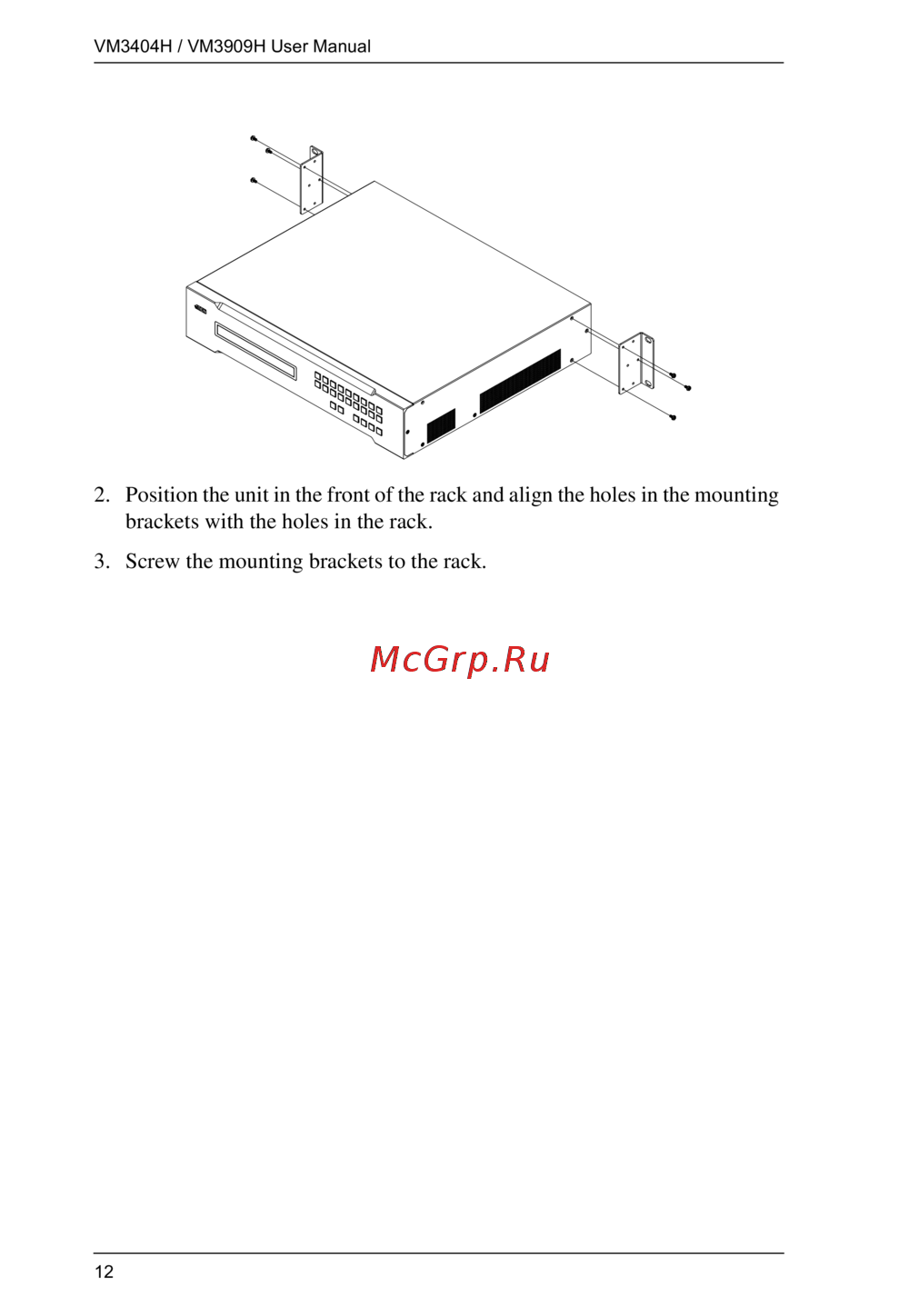

2. Position the unit in the front of the rack and align the holes in the mounting

brackets with the holes in the rack.

3. Screw the mounting brackets to the rack.
