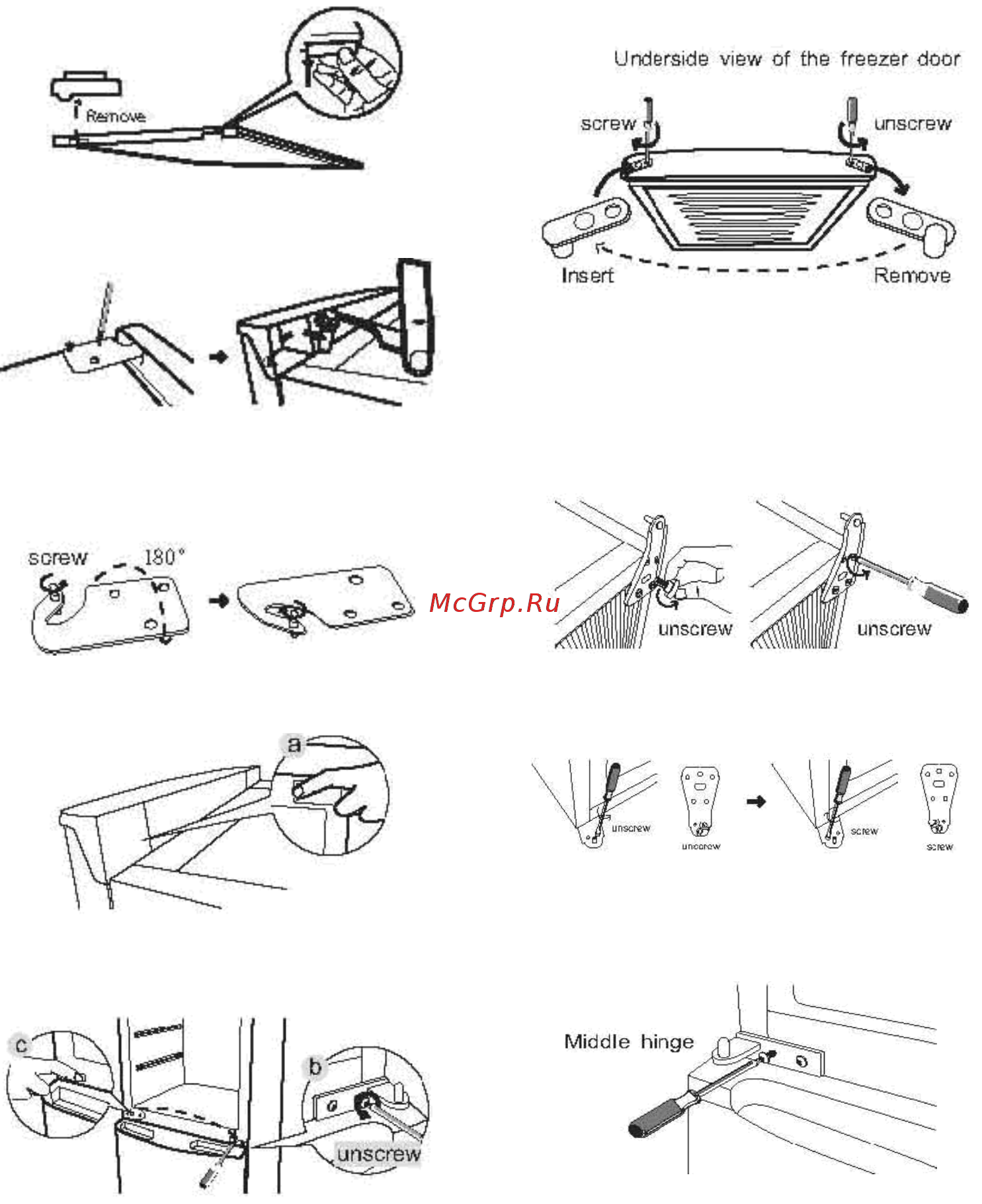

c. Remove the left hinge cover. Insert

the right hinge cover.

2. a. Undo the screws, lift the hinge

bracket up and take it off.

b. Remove the bolt with a screwdriver

and flip the hinge bracket then reattach

the bolt to the hinge bracket. Remove

the fridge door.

3. a. Lift the top hinge cover on the

fridge door and move it to the side you

want to install.

b. Take of the middle hinge by removing

the screws. Lift the freezer door up and

move it away.

c. Remove the screws’ covers and place

them to the opposite side.

4. Remove the bottom hinge adaptor

from the freezer door. Move the adaptor

to the opposite side. Ensure it is

securely located.

5. a. Tilt the fridge carefully. Two people

are required to tilt the fridge during the

door reversing process.

b. Remove the screws and bottom

hinge. Then remove the adjustable feet

from both sides and reattach them to

the opposite side.

6. Remove the screw from the bottom

hinge and refit it to the opposite side.

Place the freezer door back on.

7. After placing the freezer door, screw

the middle hinge back onto (the

opposite side) the fridge.

8. Place the fridge door back on. Ensure

the fridge door is aligned horizontally

and vertically so that the seals are

closed on all sides before finally

tightening the top hinge.
