Easy DVD hook up guide: For the best

possible picture, simply follow these

guidelines and use the best cables your

TV accepts:

Normal: Composite video Good: S-

video.

Better: Component video Best: HDMI

video.

HD DVD playback: Enjoy your entire

DVD collection in brilliant

high definition format.This DVD player

upconvert DVDs to your HDTV's native

resolution,whether it's 480p,720p,576p

or 1080i.

HDMI output:Use this output for HD

conversion and experience stunning HD

images and crisp digital audio.

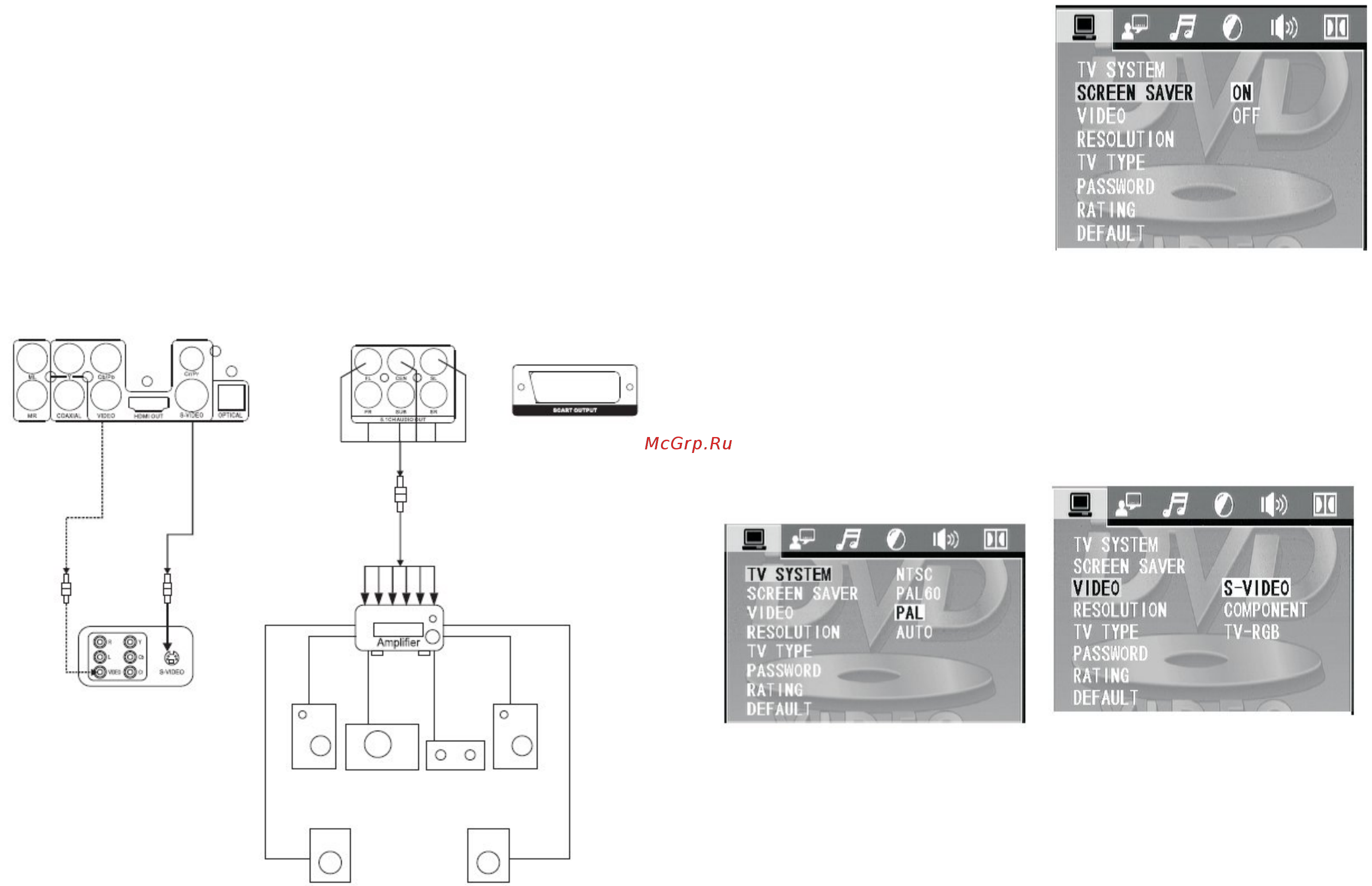

Connecting the AC-3 Decoding Amplifier.

Connect the unit’s video output to the

video input terminals (Video, S-Video or

Y Cb Cr ) of the TV set.

Connect the digital output( optical or

coaxial ) to the AC-3 built-in amplifier.

Press SETUP button on the remote con-

trol to enter the unit’s SETUP menu.

Press directional keys on the remote

control to select the AUDIO OUTPUT.

Press directional keys on the remote

control to select digital output and

choose BISTREAM or LPCM48K.

Press SETUP again to save your selec-

tion and exit [SETUP] menu.

Connecting to 5.1 CH Amplifier

Connect the unit’s video output terminal

to the Tv’s video input terminals (Video ,

S-Video or Y Cb Cr). Connect the unit’s

5.1 channels surround audio output

terminals to the 5.1 channels amplifier’s

audio input terminals.

Prepositive Left , Prepositive Right, Sur-

round Left , Surround Right, Center and

Sub-woofer.

BASIC OPERATION

Press SETUP button on the remote con-

trol unit to the initial setting. Select re-

lated SETUP PAGE through directional

buttons. The selected item will be high-

lighted.

Menu Operations

You can set the mode of audio and video

output, OSD language ,initial setup,

parental control level and so on.

You can also select the aspect ratio of

the playback picture to confirm to your

TV screen.

Press SETUP to display setup menu and

the system convert to stop status itself.

1. Introduction of setup page

1) SYSTEM SETUP

Press SETUP and select system setup

page via directional buttons.

TV system: Using up/down arrow button

to make a selection for TV system.

There are some TV output systems for

chosen:

NTSC, PAL-M, PAL-N , PAL, AUTO.

SCREEN SAVER

Using up/down arrow button to select

the status of the screen saver On:

When enabled, if the machine has been

idle (e.g. in stop/pause state or waiting

for user input or for about 60 seconds),

the video will be blanked while a screen

saver will bounce around the screen to

protect screen.

Off: Setting without screen saver

VIDEO

There are three video output modes for

your choice:

1) COMPONENT: use Y Cb Cr /Y Pb Pr

terminals to output signals

2) TV-RGB: Use S-video or composite

video output terminals to output signals.

3) P-SCAN YPBPR: use Y Pb Pr terminals

to output signals and convert to pro-

gressive output.

4) PC-VGA: Use VGA to output signals &

convert to progressive output.

5) S-VIDEO: Use S-VIDEO to output

signals

TV TYPE

Using left/right arrow buttons to select

TV aspect ratio: 16: 9

16:9 Wide screen video output for a

wide screen TV set;

4:3/LB.

4:3 Letter Box video output for a normal

TV set. The screen displays the wide

picture with brand displayed on the up-

per and lower portions of the screen.

4:3/PS.

4:3 Pan & Scan video output for a nor-

mal TV set. The screen displays the wide

picture on the whole screen with a left

and right portion automatically cut off.
