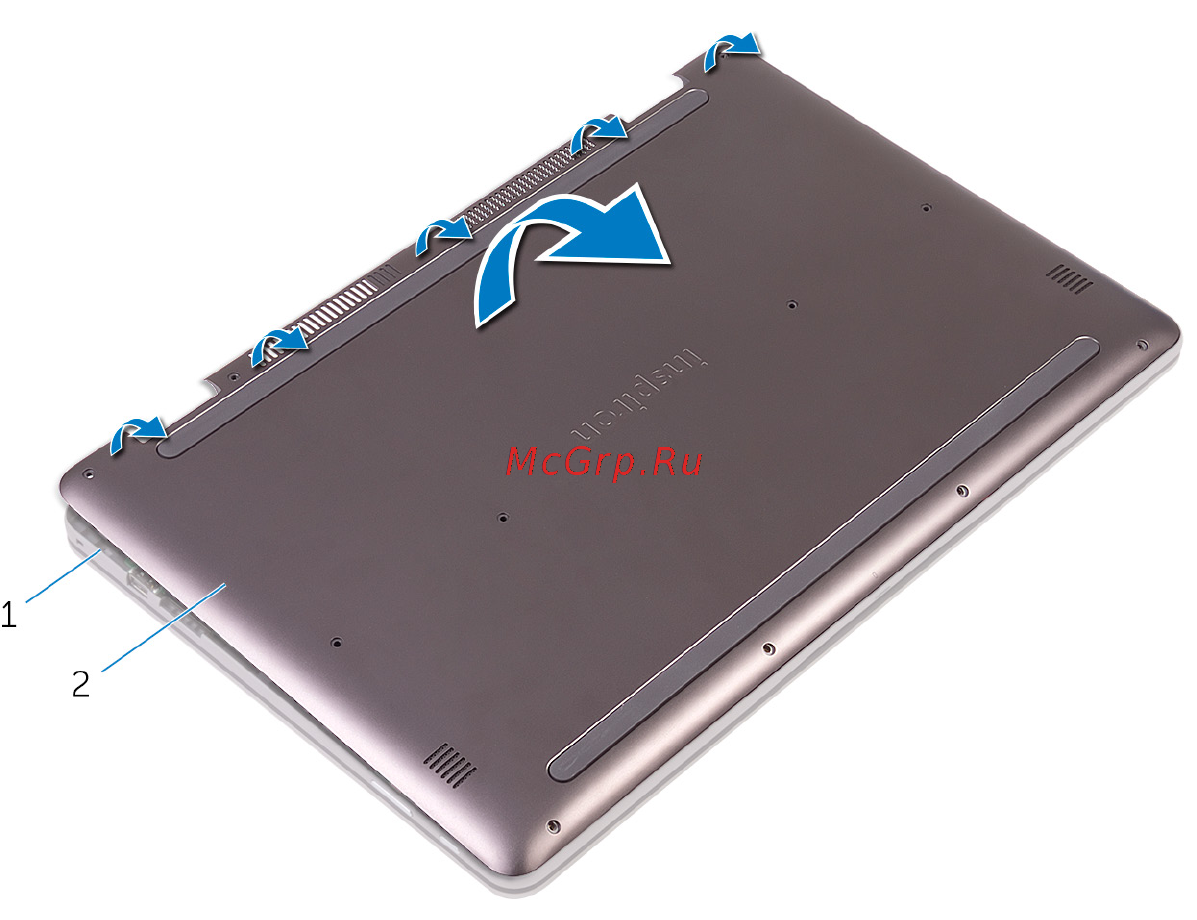

3 Using your fingertips, pry the base cover off the palm-rest assembly.
1 palm-rest assembly 2 base cover
