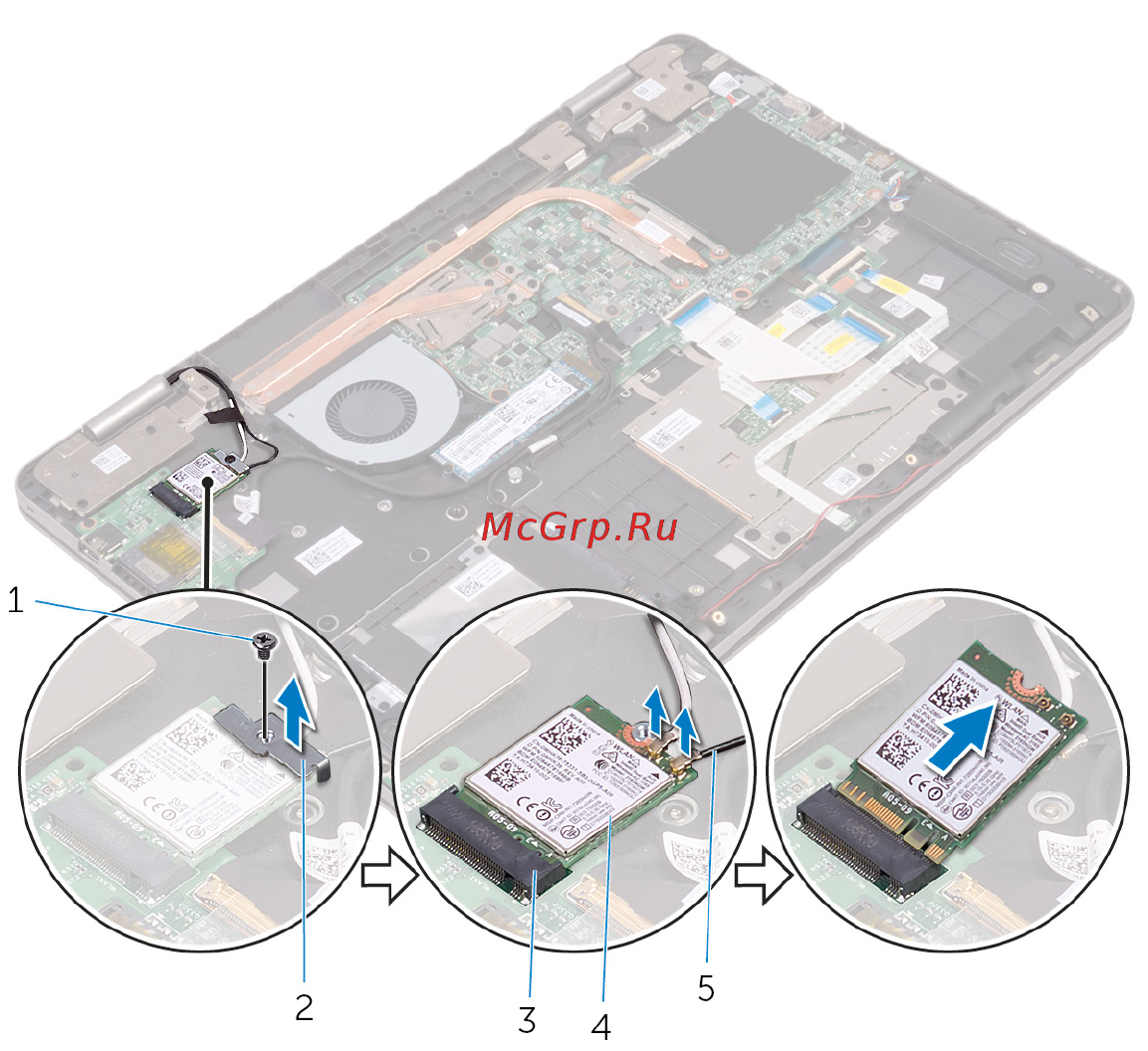

3 Slide and remove the wireless card from the wireless-card slot.
1 screw 2 wireless-card bracket
3 wireless-card slot 4 wireless card
5 antenna cables (2)
41
