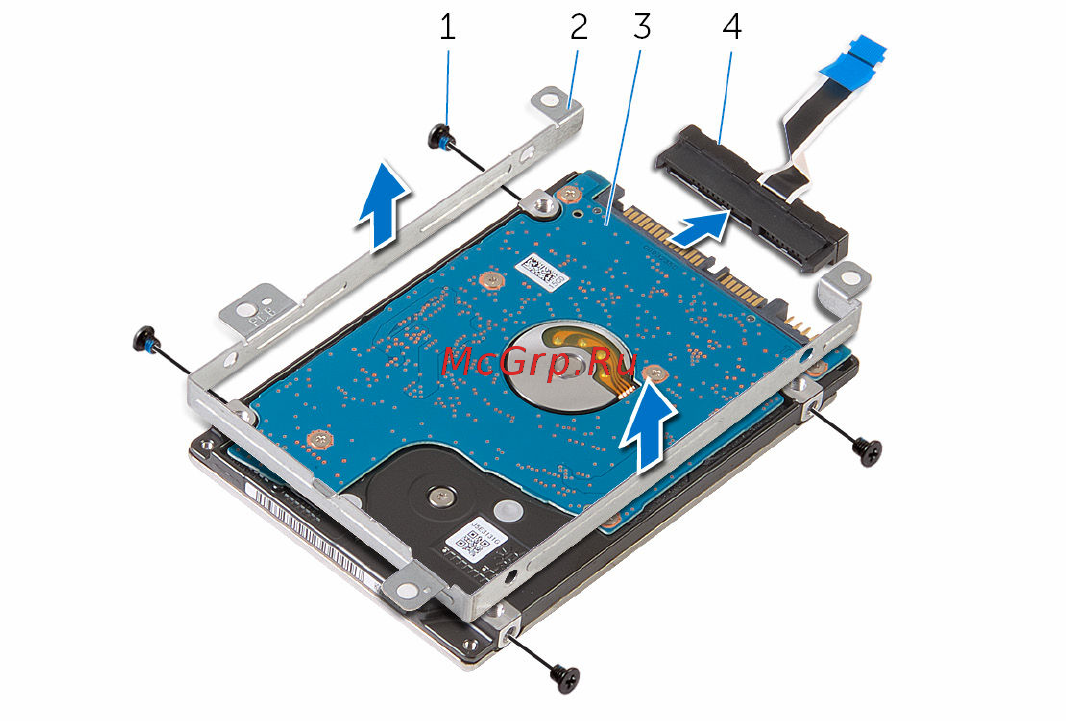

6 Disconnect the interposer from the hard drive.
1 screws (4) 2 hard-drive bracket
3 hard drive 4 interposer
20
