Fig. 8

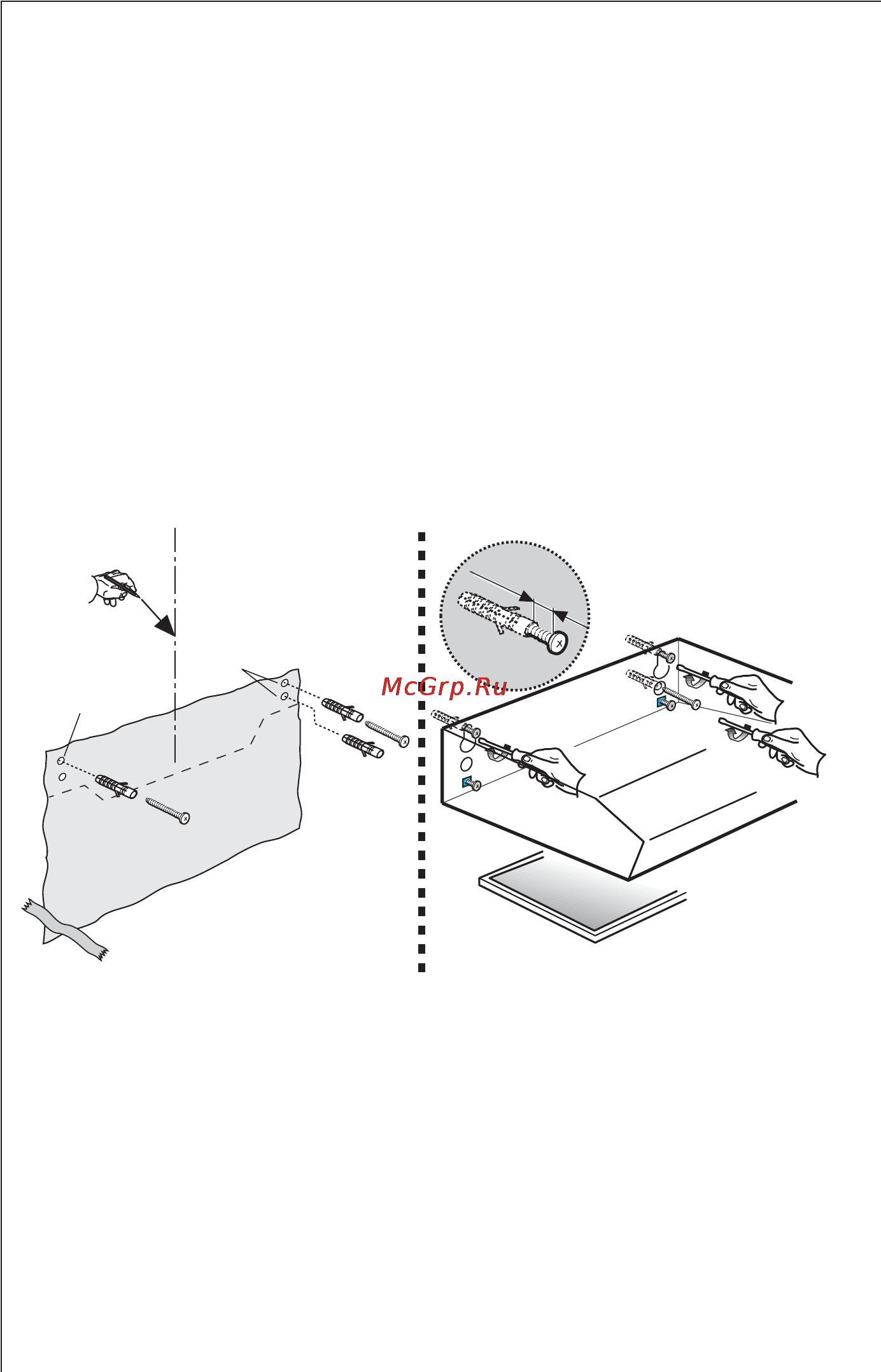

Wall mounting - Fig. 8

 Mark a centre line on the wall (1).

 Fix the drilling template to the wall (2).

 Make 3 Ø 8mm holes in the wall (3), 2 at upper points, 1 as desired

at lower points.

 Insert the three Ø 8mm expansion plugs into the wall (4).

 Insert 2 5x45 screws (5) but do not tighten them completely, hang the

hood (6).

 Only DU 4161 - DU 4361 - DU 4561: Adjust the unit so that it is

positioned at a right angle to the wall by turning the two screws on

lower side (7).

 Tighten the 2 upper screws (8).

 From inside the hood, insert the third 5x45 screw into the lower hole

(9) and tighten (10).

1cm
