Relocating the control unit

(Only 570 D - 5708 D)

The control unit can be fitted at a different point (cladding,

lighting facia, etc.).

Remove the grease filter grill and the housing frame.

1. Loosen two screws and pull the control unit forwards out of the

housing. Undo the socket connection.

Caution: The socket connection cable is only long enough

for a maximum distance of 40 cm!

2. Open the cable channel on the top side of the housing and pull

the wire for the control unit through the opening. Shut the cover

so that it supports the wire.

3. Fit the fascia cover included with the appliance over the

opening for the control uhit.

4. Dimensions to cut out for the control unit:

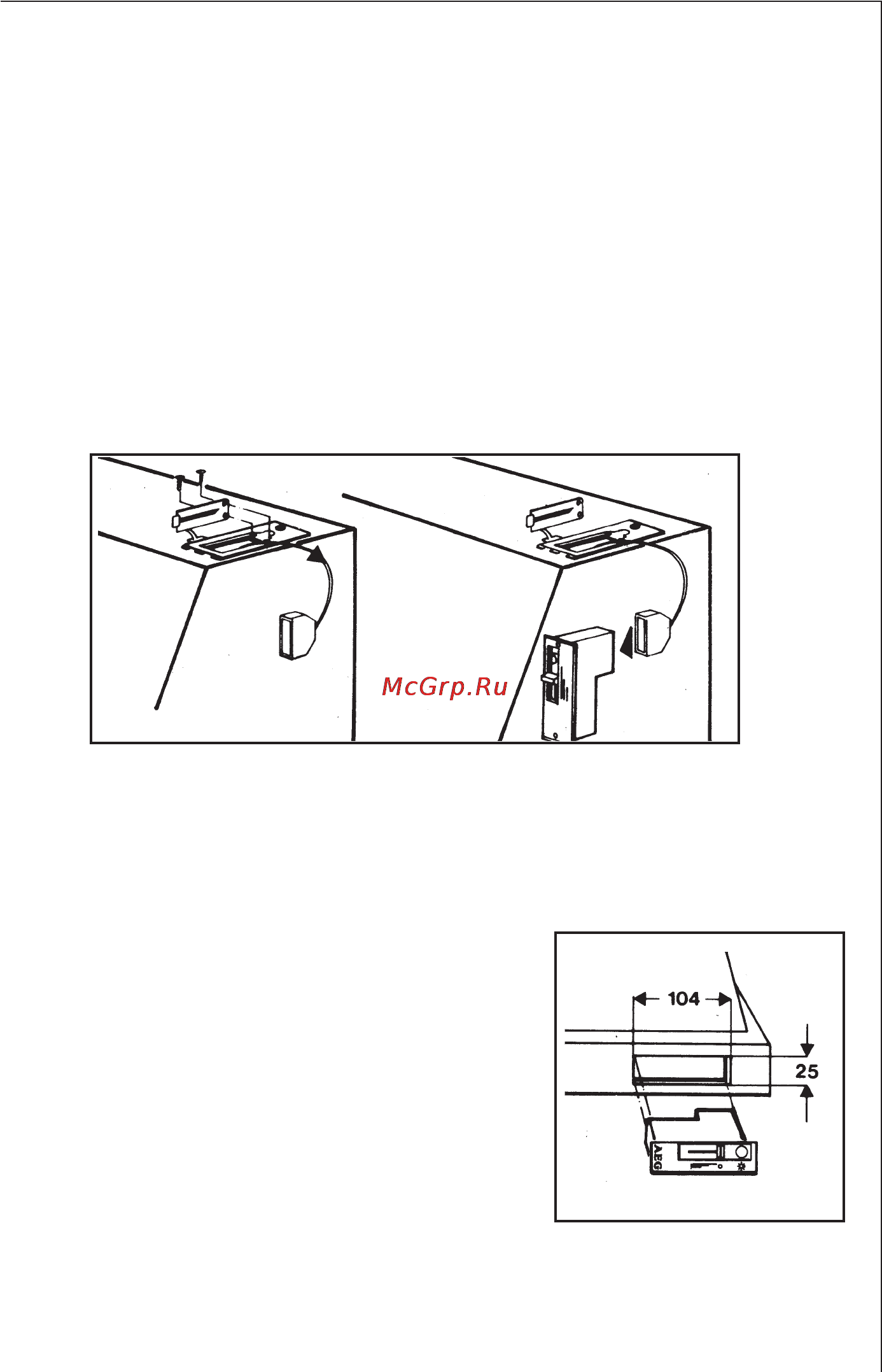

Fig. 11

Fig. 12
