Fig. 2

Description of the Appliance

 The cooker hood is designed to extract unpleasant odours

from the kitchen, it will not extract steam.

 The hood is supplied as an extractor unit and can also be used with

a recirculation mode by fitting a charcoal filter.

 In some models the charcoal filter is supplied. The hood, therefore,

can be used immediately in the recirculation mode. We advise

removing the charcoal filter to use the hood in the extraction mode.

Extraction mode

 In this mode fumes are extracted to the outside via a hose

connected to the coupling ring. Fig. 1.

 In order to obtain the best performance the hose should have a

diameter equal to the outlet hole.

Only 5708 D: this model is equipped with two outlet hole. 2 hoses

are therefore necessary for discharging the fumes.

Only for model DL 4150-CHDL 4150-HL 4150:

Should there already be an hose of diameter 100 mm that ducts to

the outside through the walls or roof, it is possible to use the 120/

100 mm adapter. In this case the hood will be slightly noisier.

Filter Version

 The air is filtered through a charcoal filter and

returned to the kitchen. Fig. 2.

 You will need an original charcoal filter for the

filtering function. (See Special Accessories).

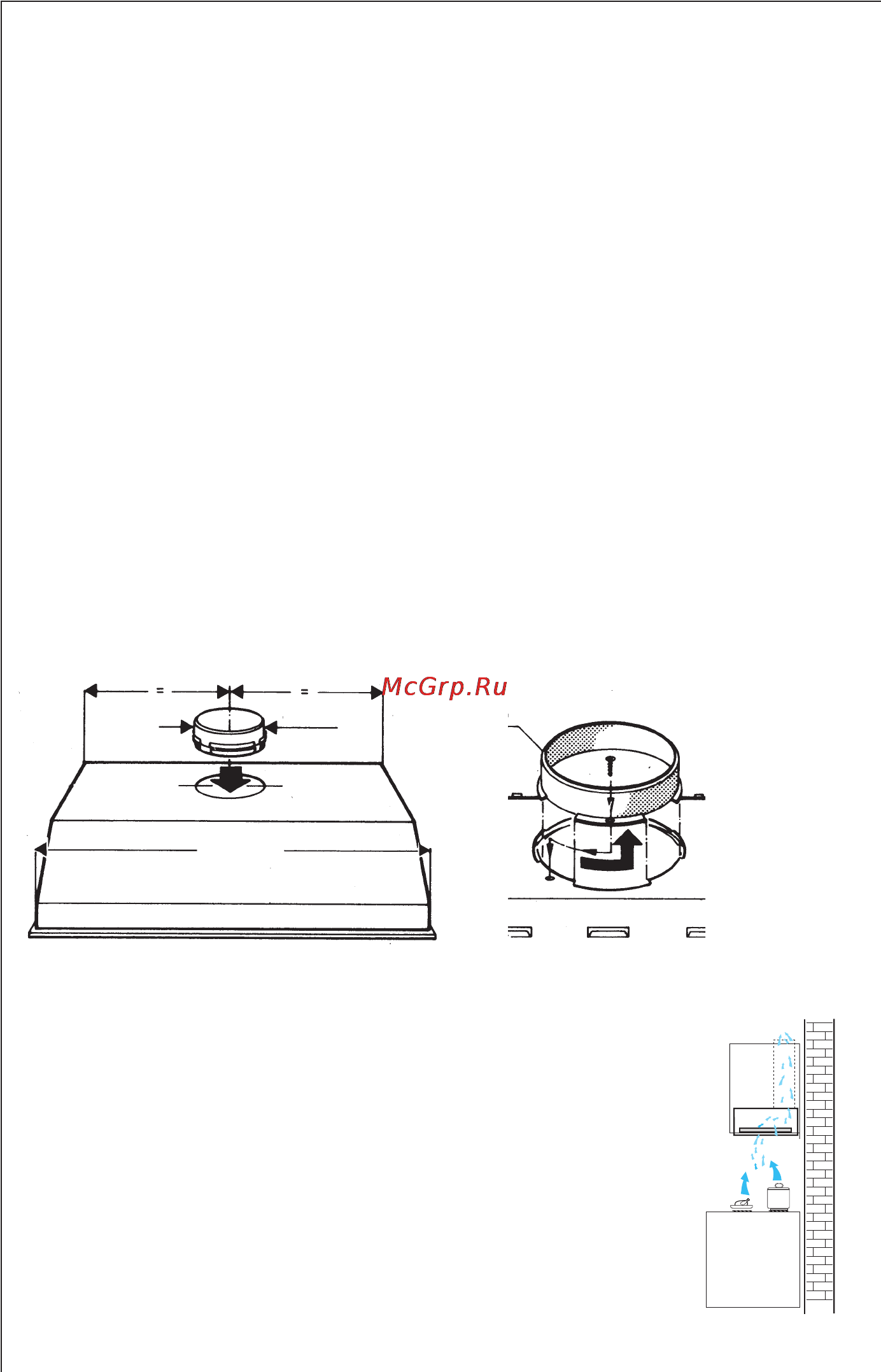

Fig. 1

510

710

Coupling ring

Bayonet screw fitting

(Only 570 D (1x) - 5708 D (2x))
