BRIEF DESCRIPTION

The cooker hood was designed to remove kitchen

fumes. It requires installation of a conduit discharging

used air to the outside. The conduit (usually a pipe Ø

150) shall not be longer than 4-5 m. The hood can

operate as an odour absorber after installation of an

charcoal filter. In

such case a conduit discharging used

air to the outside is not necessary, but it is

recommended to install an air exhaust guide.

The cooker hood is an electrical appliance

manufactured according to class II of shock protection.

It has its own lighting and an exhaust fan which can be

set to

one of four rotational speeds.

The hood was designed for permanent installation on a

vertical wall over a gas or electric cooker.

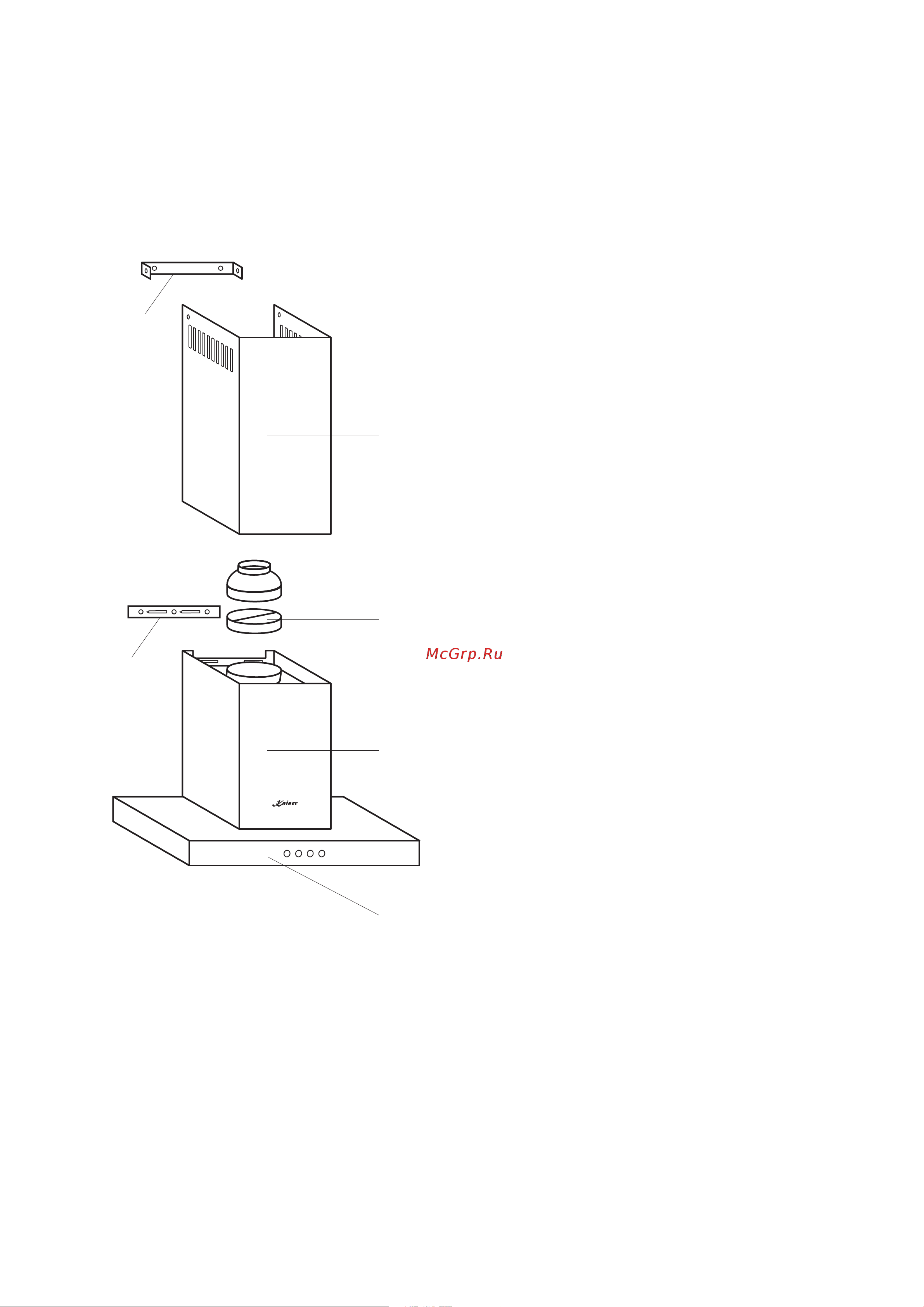

LOCAL DRAWING

Arrangement of the functional elements:

1. Hood body, equipped with lights, engine unit and

electronic programmable control.

2. Masking cover of the hood body.

3. Wall hanger of the hood body.

4. V-flap for the extracting conduit.

5. Conduit adapter 150-120 mm

6. Top telescopic masking column.

7. Wall hanger of the masking column.
