INSTALLATION INSTRUCTIONS

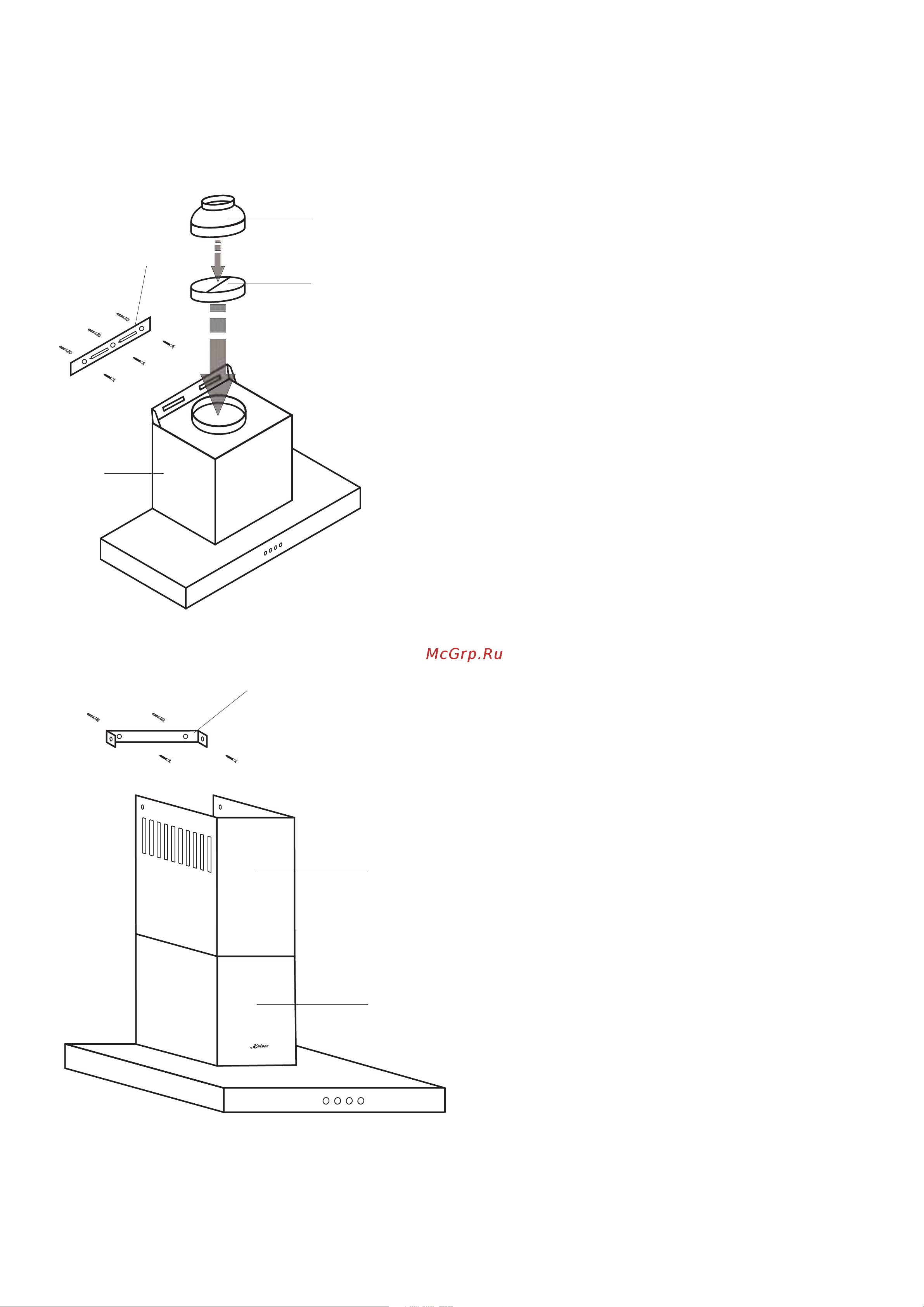

INSTALLATION OF THE WALL HANGER

• Trace a vertical line on the wall to indicate the

centre of the cooker plate.

• Place the hood body 1 on the wall to get min 650

mm from the cooker plate (see p. 12). Level it

horizontally. Use the top of the rear side of the

hood as ruler to

trace the line.

• Hold a hood hanger profile 2 to the wall on the

horizontally, symmetrically to the central line,

mark the mounting holes on the wall.

• Drill the holes as indicated on the wall, using drills

of diameter 8 mm, drive the plugs in and then

screw the hanger profile to

the wall. The hooks

should be upward oriented.

INSTALLATION OF THE HOOD

• .

•If the cooker hood will be use in extractor mode it is

necessary to mount a vent conduit of Ø 150 mm

on the fixed V-flap 3. By connection of a conduit of

Ø 120 mm use an adapter 4.

•f the cooker hood will be operate in

odour

absorber mode it is necessary to install charcoal

filter ( see p. 20).

•

•P

• Place

• Hang

Hang the hood body 1 on the installed hanger 2

Attach the telescopic column 6 on the masking

cover 5 of the mounted hood 1

ull out the masking cover 6 on the demanded

height. Mark the level of the mounting holes.

Remove the masking cover.

the hanger of the top masking cover 7 at

the level of mounting holes and install the hanger

the masking cover column 6 to the hood’s

body and to the wall hanger using appropriate

screws.
