To check the accuracy of line laser level

(slope of plane)

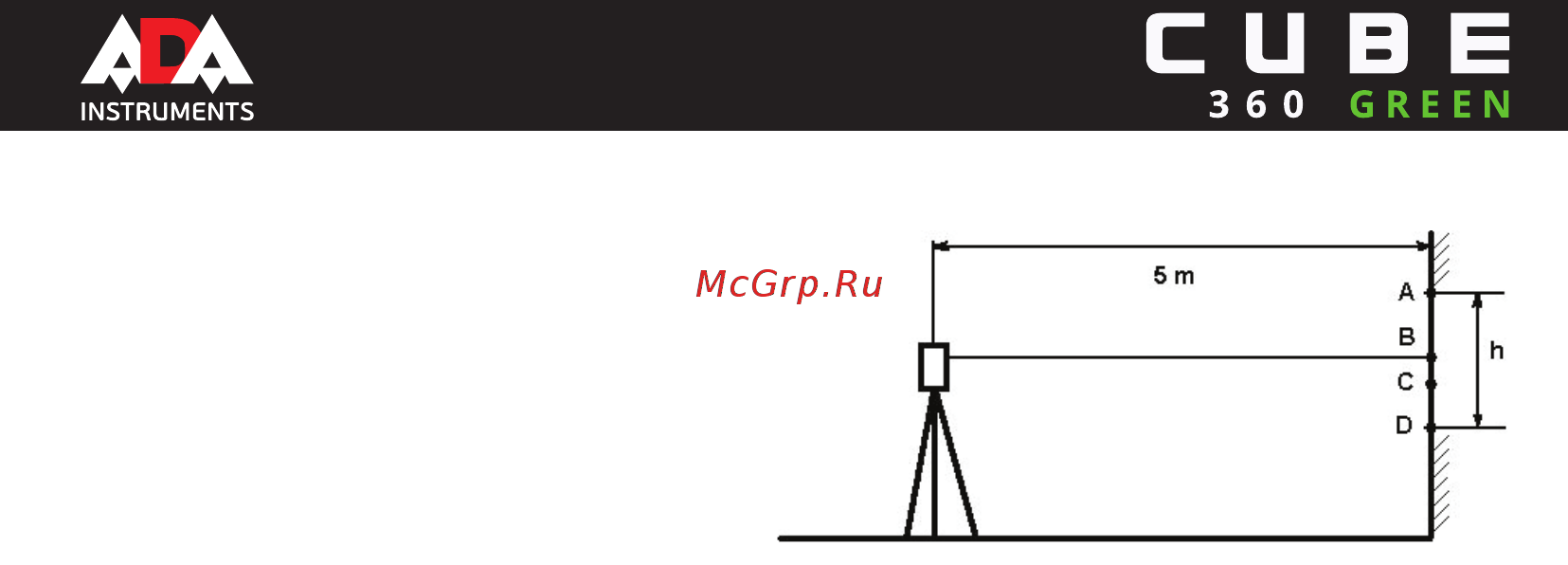

Place laser level on the tripod 5m away from the

wall so the horizontal laser line will be directed

to the wall.

Switch on the power. The instrument starts to

self-level. Mark point A on the wall to show the con-

tact of laser beam with the wall. Turn the instrument

by 90° and mark points В, С, D on the wall. Measure

distance “h” between the highest and lowest points

(these are A and D points in the picture).

If “h”is ≤ 6 mm, the measurement accuracy is

good. If “h” exceeds 6 mm, apply service center.
