From below

From side/below

Reflecting tape

Min 1,8 m

Door

Distance (diagram)

Angle (diagram)

AR 300 E/W

Control

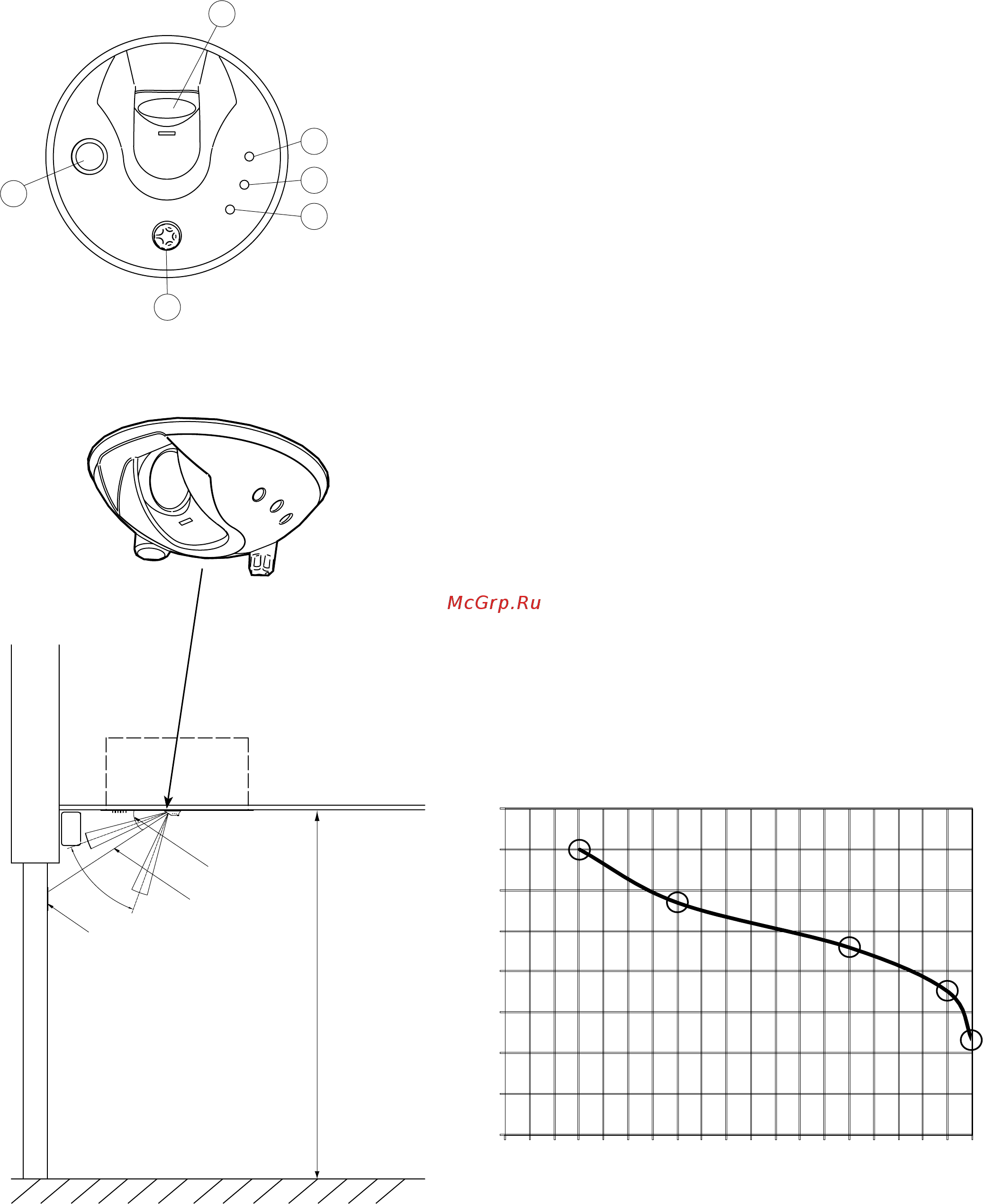

Fig. 5: IR-eye

(1) Door status (lit with closed door). Red LED.

(2) Heat/no heat (lit in heat state). Green LED.

(3) Alarm. Red LED.

(4) Room temperature sensor 5-30°C

(5) Button (heat/no heat).

(6) Door sensor.

Fig. 6: Adjustment of the IR-eye downwards/upwards

Diagram: Angles for different distances between IR-eye

and door. See ﬁg. 4. If the reﬂecting tape is tilted the angle

can be wider.

0 0,5 1 1,5 1,9

Distance [m]

Step 1

Step 2

Step 3

Step 4

Step 5

[º]
