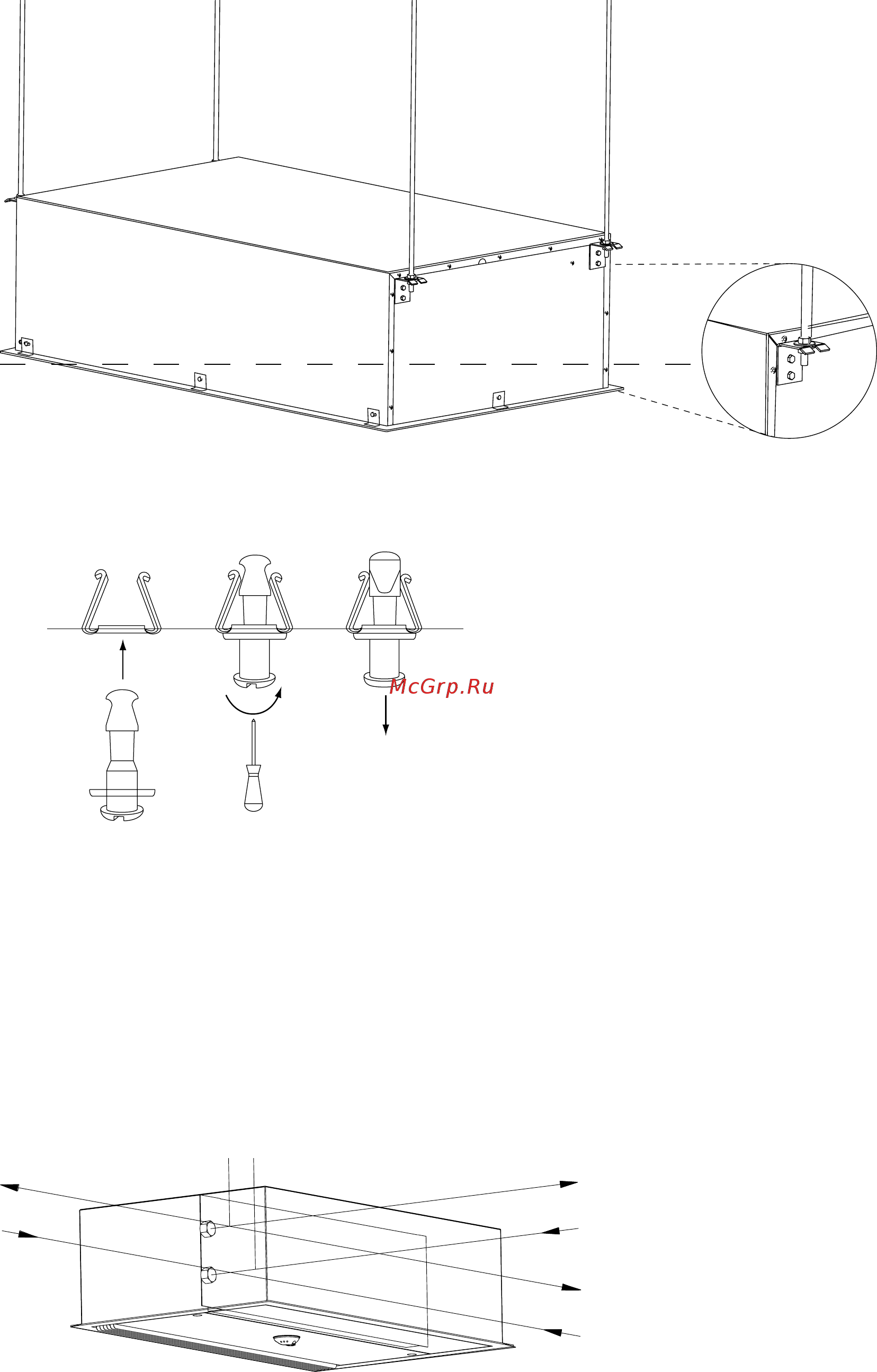

Fig. 3: Function of the snap ﬁxing

90°

Service hatch

AR 300 E/W

Fig. 2: Mounting on threaded bars.

Water connections

Fig. 4: The water coil is connected inside the unit through holes which are made (during installation) on the upper side or

through the side of the unit, possible places are marked with punch marks.

Mounting
