- Lead wire into “Wire Guide Pipe” of wire feeder, align wire with roll groove through “Drive Roll”,

re-lead “Socket Tip” and press “Drive Roll”. (If more welding wire is needed, it will be done

after switching on the power.)

Connect the copper tip of the earth clamp which thread through the wire access hole on the panel

with “-“ of the “connecting tip”. The connecting cable must be reliable, or the connecting tip will burn

out.

In order to reach sound performance when welding with flux-cord wire, it’s available that connect

the “+”, “-” in an opposite way, that’s the wire feed motor with “-“and the connecting cable with “+”.

Do not use steel plate or the materials alike which are ill conductor to connect between

welder and work piece.

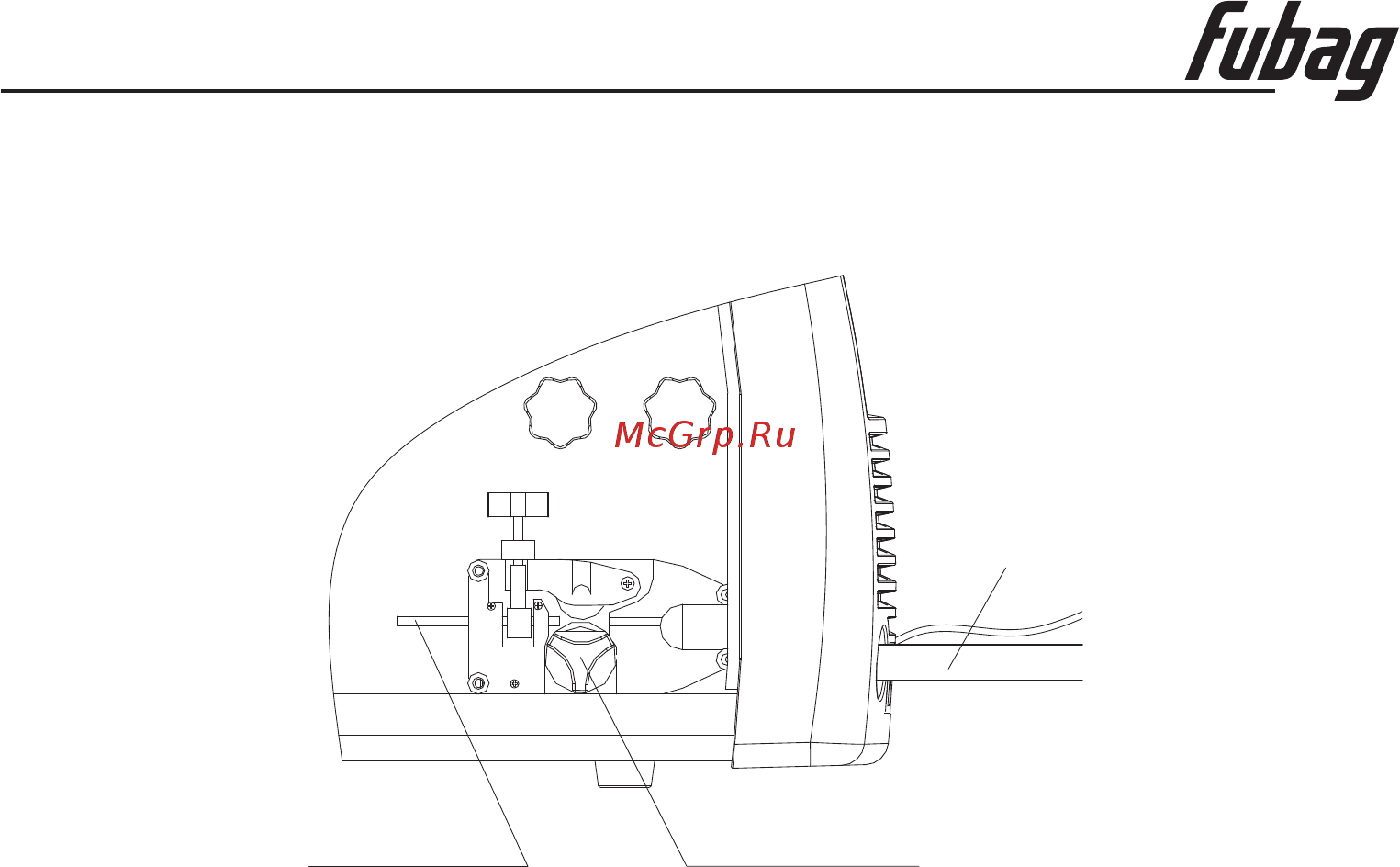

Connection of the Connection Cable

Notice:

TORCH

FEED

ROLLER

WIRE
