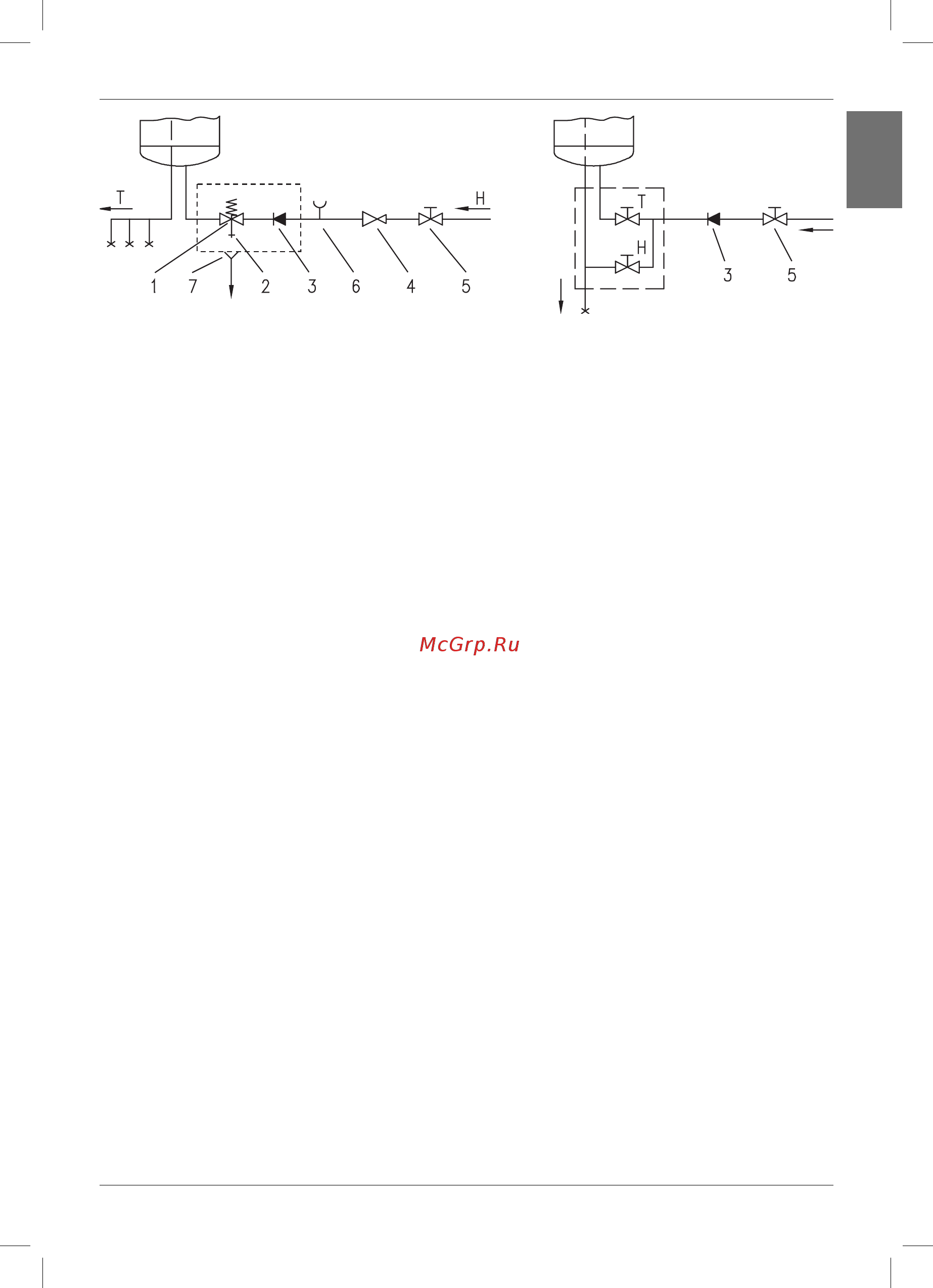

Closed (pressure) system Open (non-pressure) system

Legend:

1 - Safety valve 6 - Checking ﬁ tting

2 - Test valve 7 - Funnel with outlet connection

3 - Non-return valve

4 - Pressure reduction valve H - Cold water

5 - Closing valve T - Hot water

Between the water heater and return safety valve no closing valve may be built-in

because with it the function of return safety valve would be impeded.

The water heater may be connected to the water network in the house without reduction

valve if the pressure in the network is lower than 0.5 MPa (5 bar). If the pressure exceeds

0.5 MPa (5 bar), a reduction valve must be installed. Prior to the electric connection the

water heater must obligatorily be ﬁ lled with water. By ﬁ rst ﬁ lling the tap for the hot water upon

the mixing tap must be opened. When the heater is ﬁ lled with water, the water starts to run

through the outlet pipe of the mixing tap.

CONNECTION OF THE WATER HEATER TO THE ELECTRIC NETWORK

Before connecting to power supply network, install a power supply cord in the water heater,

with a min. diameter of 1,5 mm

(H05VV-F 3G 1,5 mm

). For it the protection plate must be

removed from the water heater.

The connection of water heater to the electric network must be performed according to

standards for electric installation. Install a disconnect switch (separating all poles from the

power supply network) between the water heater and the permanent power connection, in

compliance with the national regulations.
