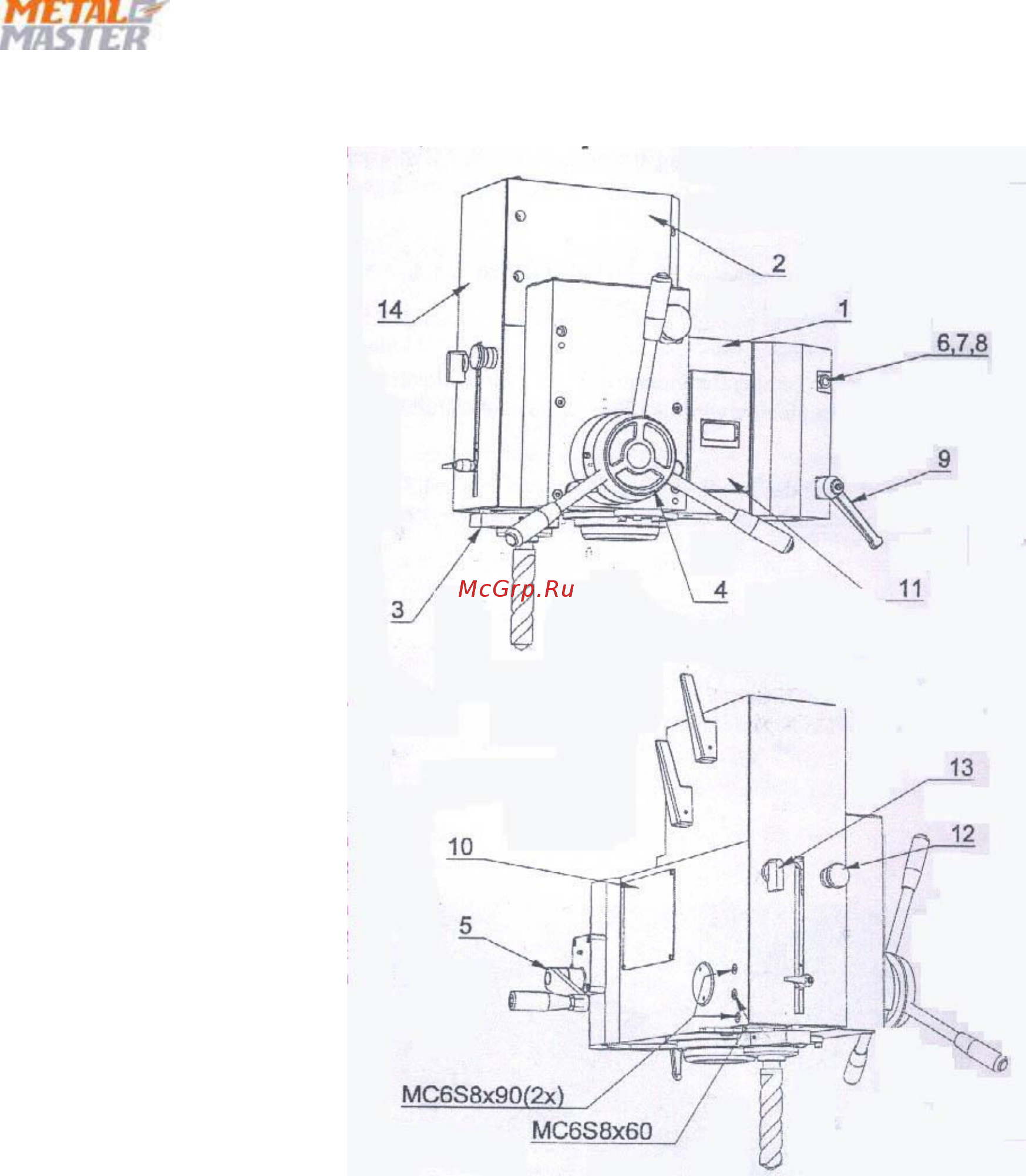

Pos Art. No. Description Note

1 2X08622-7 Drill head

2 2X08619-2 Gear box

3 2X09617 Quill complete

4 2X08514-6 Feed axle complete

5 2X08720-1 Worm gear

6 3S02558 Screw 12x130 2 st

7 3M09122 Lock nut

8 3B01178 Washer

9 3R00014 Lock handle

10 4L08589 Cover plate

11 3E10605 Overload protection

12 3E06125 Emergency stop

13 3E06074 Reversing hand

14 4L08660 Front plate
