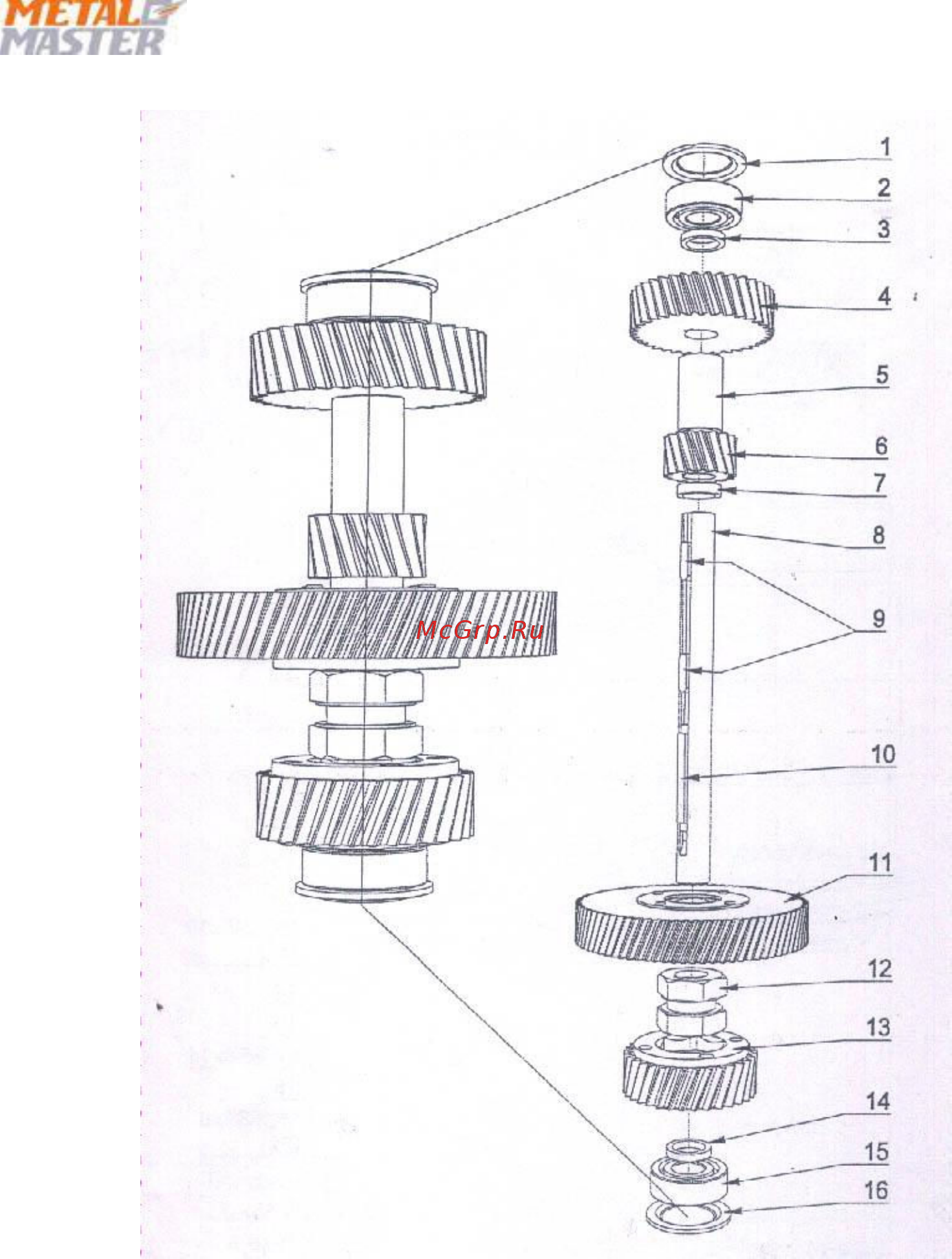

Pos Art. No. Description Note

1 4B00138 Cover

2 3L11003 Bearing 6203

3 2K00002 Spacer 17x2.5

4 2H08572 Gear wheel 34-2

5 2D17038 Spacer 17x38

6 2H08573 Gear wheel 15-2

7 2D17004 Spacer 17x4

8 2A04871 2:nd Shaft

9 3K00187 Key 5x5x20

10 2T06615 Key

11 2X08574 Gear wheel 79-1.5

12 2T04274 Clutch

13 2X08574 Gear wheel 33-2

14 2D00008 Spacer 17x6.5

15 3L11003 Bearing 6203

16 4B00138 cover
