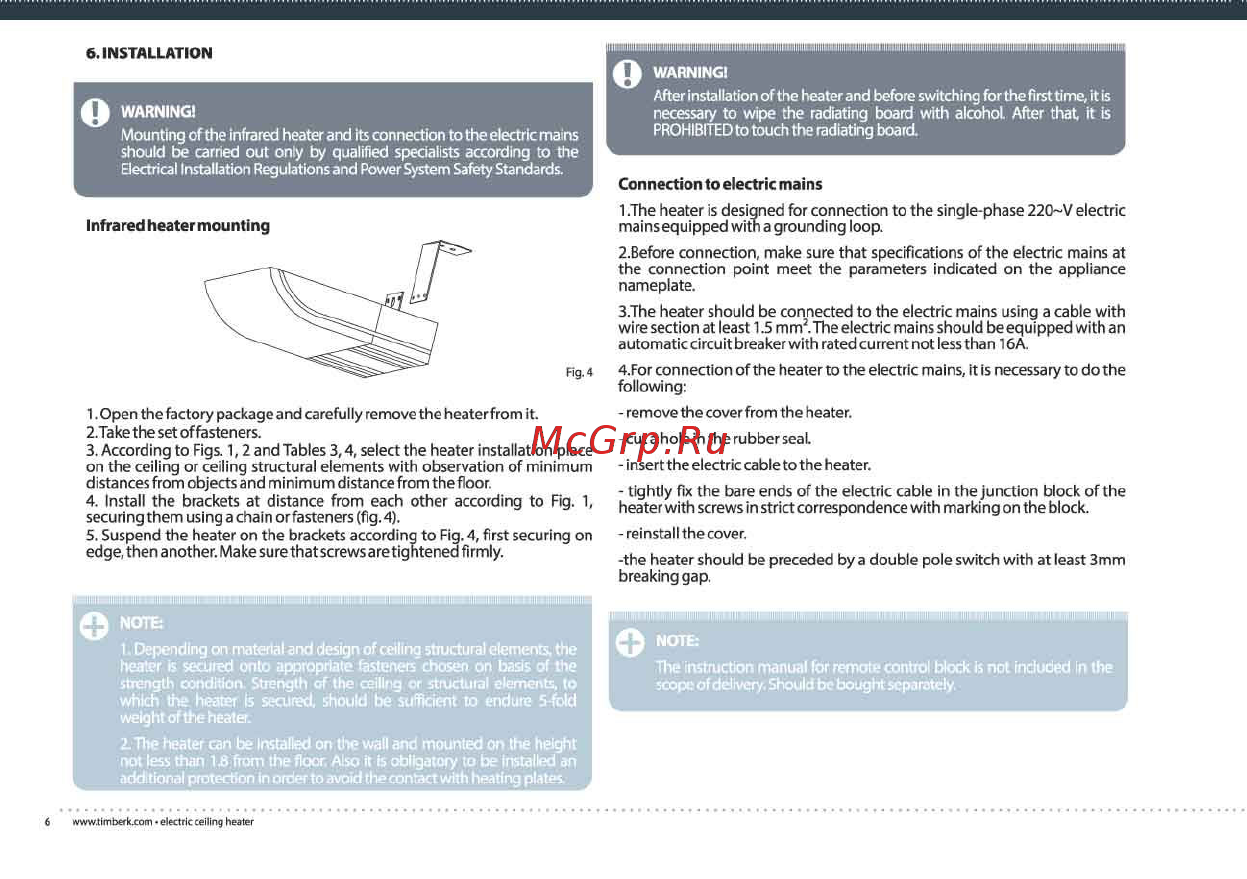

6 INSTALLATION Q WARNING After installation of the heater and before switching for the first time it is Q WARNING necessary to wipe the radiating board with alcohol After that it is PROHIBITED to touch the radiating board Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the Electrical Installation Regulations and Power System Safety Standards Connection to electric mains 1 The heater is designed for connection to the single phase 220 V electric mains equipped with a grounding loop Infrared heater mounting 2 Before connection make sure that specifications of the electric mains at the connection point meet the parameters indicated on the appliance nameplate 3 The heater should be connected to the electric mains using a cable with wire section at least 1 5 mm2 The electric mains should be equipped with an automatic circuit breaker with rated current not less than 16A Fig 4 4 For connection of the heater to the electric mains it is necessary to do the following remove the cover from the heater 1 Open the factory package and carefully remove the heater from it 2 Takethe set of fasteners cut a hole in the rubber seal 3 According to Figs 1 2 and Tables 3 4 select the heater installation place on the ceiling or ceiling structural elements with observation of minimum insert the electric cable to the heater distances from objects and minimum distance from the floor tightly fix the bare ends of the electric cable in the junction block of the 4 Install the brackets at distance from each other according to Fig 1 heater with screws in strict correspondence with marking on the block securing them using a chain orfasteners fig 4 5 Suspend the heater on the brackets according to Fig 4 first securing on reinstall the cover edge then another Make sure that screws are tightened firmly the heater should be preceded by a double pole switch with at least 3mm breaking gap Q NOTE 1 Depending on material and design of ceiling structural elements the heater is secured onto appropriate fasteners chosen on basis of the strength condition Strength of the ceiling or structural elements to which the heater Is secured should be sufficient to endure 5 fold weight of the heater 2 The heater can be Installed on Use wall and mounted on the height not less than 1 8 from the floor Also it is obligatory to be Installed an additional protection In order to avoid tlie contact with heating plates www tlmberkxom electricceiling heater NOTE The instruction manual for remote control block is not included In the scope of delivery Should be bought separately
