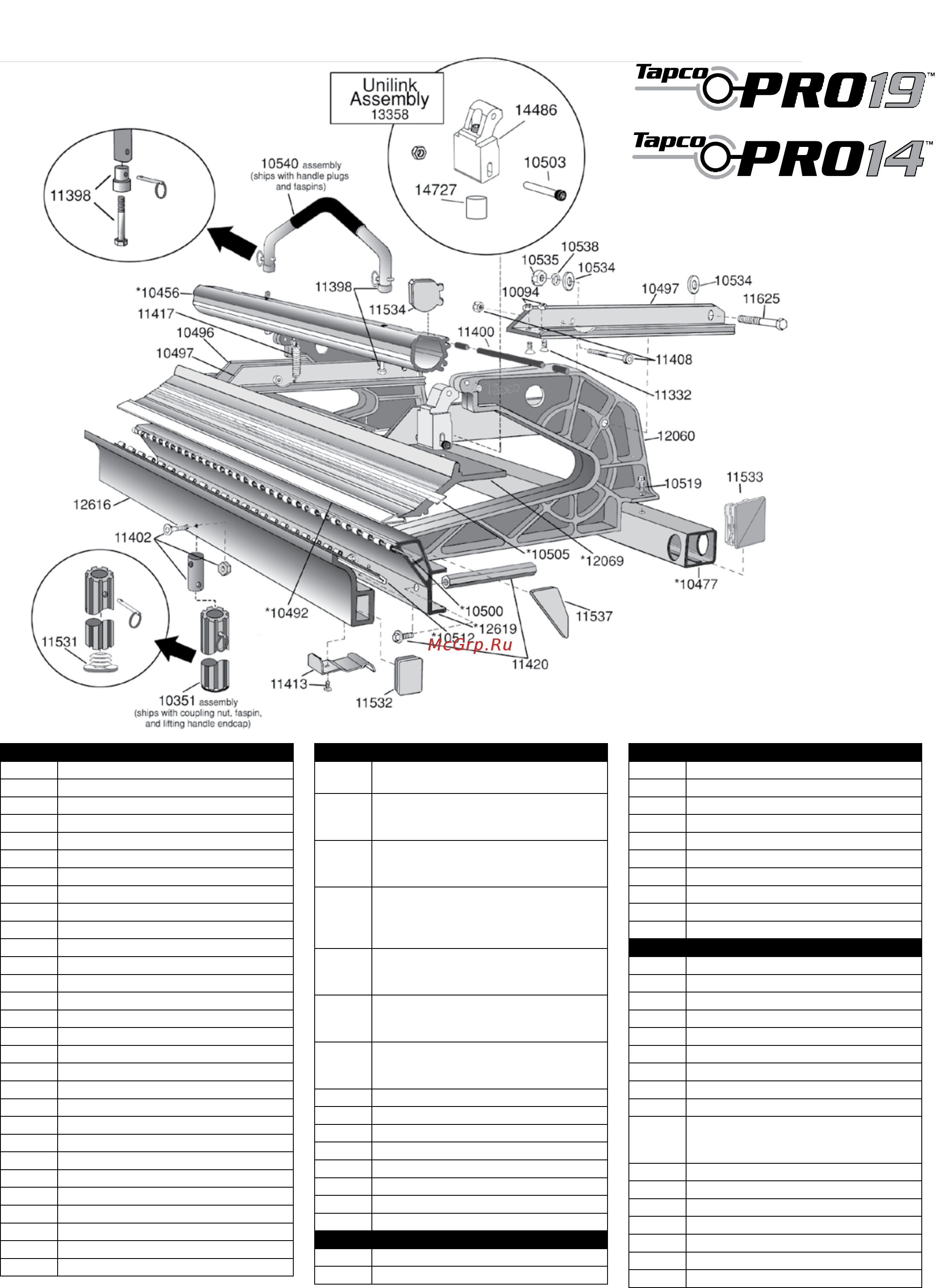

2

Parts sold in kits are not available
for purchase individually.
Item # Description
10094 ¼-20 Hex Flange Nut
10351 Lifting Handle Assembly
12615 8'6" Moving Hinge
12616 10'6" Moving Hinge
12617 12'6" Moving Hinge
12618 8'6" Base Hinge
12619 10'6" Base Hinge
12620 12'6" Base Hinge
10452 8'6" Locking Handle
10456 10'6" Locking Handle
10460 12'6" Locking Handle
10491 8'6" Stainless Edge
10492 10'6" Stainless Edge
10493 12'6" Stainless Edge
10499 8'6" Hinge Pin
10500 10'6" Hinge Pin
10501 12'6" Hinge Pin
10504 12'6" Tape Measure
10505 10'6" Tape Measure
10506 8'6" Tape Measure
10511 8'6" Vinyl Strip
10512 10'6" Vinyl Strip
10513 12'6" Vinyl Strip
10519 ¼-20 x ¾" Hex Wash HD Screw
10534 3/8" Flat Washer
10535 3/8-16 Nylock Hex Nut
10538 3/8" Lock Washer
10540 Hemming Handle Assembly
11332 Screw ¼-20 x 7/8" Flat HD Screw
Item # Description
11397 ¼" x 1 ¼" Faspin Kit
(4) Faspin 10539"
11398 Hemming Handle Plug Kit
(2) Hemming Handle Plug 10531
(2) 3/8-16 2 ¼ Bolt 10536"
11400 Locking Handle Pin Kit
(10) Pin 10508
(20) Keeper 10530"
11402 Pro Handle Plug Kit
(2) Lifting Handle Plug 10524
(2) ¼-20 X 1 ½ Flat Hd Screw 10518
(2) ¼-20 Nylock Hex Nut 10520"
11408 Bolt and Nut Kit
(5) ¼-20 2 ½"" Bolt 10503
(5) ¼-20 Nylock Nut 10520"
11413 Hinge Clip Kit
(1) 10-24 ½ Phil Pan Hd Screw 10515
(1) Hinge Clip 10542
11420 Coupling Nut Kit
(2) Coupling Nut 10349
(2) ¼-20 x ¾" Screw 10519
11531 Lifting Handle Cap
11532 Moving Hinge Cap
11533 Back Rail Cap
11534 Right Locking Handle Cap
11535 Left Locking Handle Cap (not shown)
11536 Left Base Hinge Cap (not shown)
11537 Right Base Hinge Cap
11625 3/8-16 x 3 ¼" Hex Cap Bolt

10333 8'6" Back Rail
10337 10'6" Back Rail
Item # Description
10341 12'6" Back Rail
10347 Left Pivot Arm
10348 Right Pivot Arm
12041 Pro 19 Parts Bag
12061 Pro 19 C Casting
12081 8'6" Locking Anvil
12083 10'6" Locking Anvil
12085 12'6" Locking Anvil
13358 Unilink Assembly Kit (6)
14729 Unilink Nylon Plug Kit

12621 8'6" HD Base Hinge
12622 10'6" HD Base Hinge
10458 10'6" HD Locking Handle
10472 8'6" Back Rail
10477 10'6" Back Rail
10480 10'6" HD Back Rail
10482 12'6" Back Rail
10496 Left Pivot Arm
10497 Right Pivot Arm
11417 Pro Pivot Spring Kit
(3) Roller/Pivot Spring 10794
(3) 10-24 ½ Phil Pan Hd Screw 10515
12040 Pro 14 Parts Bag
12060 Pro 14 C Casting
12067 8'6" Locking Anvil
12069 10'6" Locking Anvil
12070 10'6" HD Locking Anvil
12071 12'6" Locking Anvil
Note: For length-specic parts, 10'6" PRO 14
parts numbers are shown in diagram.
