www.timberk.com • electrical storage water heater

NOTE:

In places or on the wall, where there may be a water

contact, the power outlet installation height must be

not less than 1.8 m.

Connection to water main

1. The heater must be connected to water main with at least 0.1 MPa

pressure; maximum pressure is 0.7 MPa.

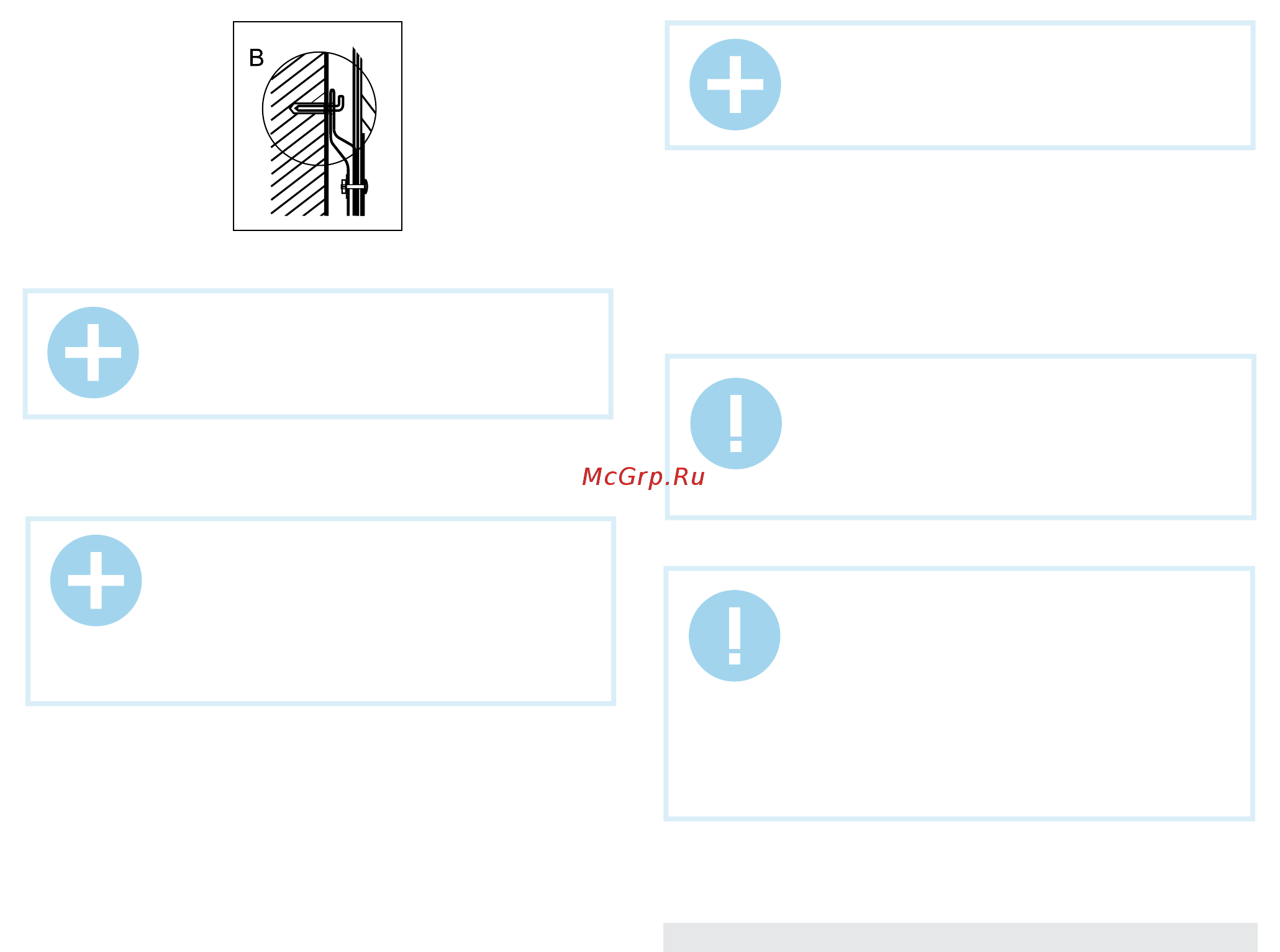

Fig. 7

NOTE:

The water heater is the appliance, operating in such

a manner that pressure of water in the water heater

corresponds to the pressure of water in water main.

If pressure in the main exceeds 0.7 MPa, then it is

necessary to mount a pressure reducer before the

water heater so that pressure doesn’t exceed 0.7 MPa.

NOTE:

Do not mount additional accessories, such as a shut-

off valve, between the relief valve and the inlet nozzle.

2. G1/2 diameter pipes are used to connect the water heater to the water

pipeline.

3. To prevent a leakage when connecting pipes, use rubber sealing gaskets

on the threaded pipe ends.

4. Screw a relief valve to the inlet nozzle, marked blue and embossed arrow

of the water flow direction, so that the water flow direction coincides with

direction of the arrow on the valve’s case.

5. Water heater with the mounted valve must be connected to the water

main – install a shut-off valve at the water inlet point.

6. Connect the desired number of consumption points to the outlet nozzle,

marked red.

7. Check leak integrity of joints: open the shut-off cock and one of the

cock assemblies. After the tank is filled with water, as evidenced by issue

of water from the cock assembly, shut the cock assembly and check the

leak integrity of all joints.

IMPORTANT!

If water in the installation location contains a large

amount of calcium, manganese or iron salts, then

necessary to mount a respective filter in the delivery

system to reduce the amount of scale generated in

the tank and on the heating element.

Connection to electric main

IMPORTANT!

Prior to connecting the tank water heater, make sure

that the water heater is properly grounded. Proper

grounding is important to minimize electric shocks

and risk of fire. The power cord is equipped with a plug

with a grounding pin. The appliance must be used

with a properly grounded power outlet. If the outlet,

you are intending to use, is not properly grounded or

grounded by a time-delay fuse or a circuit breaker,

contact a qualified electrician to install a proper outlet.

1. The water heater is designed to be connected to 230~V single-phase

electric main. Prior to connecting make sure that parameters of the electric

main in the place of connection correspond to parameters, specified on the
