www.timberk.com • electric ceiling heater

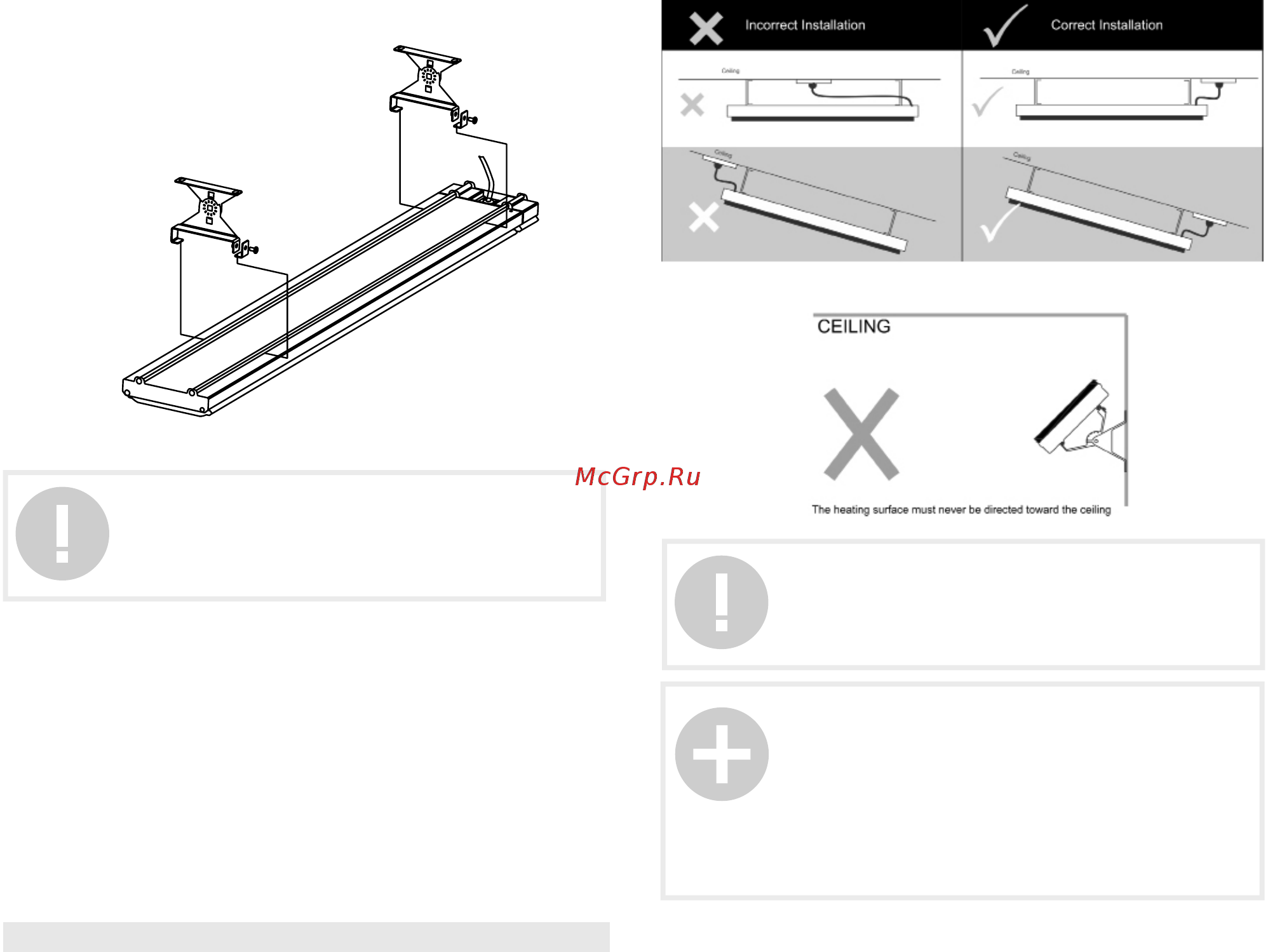

Celing mount installation

Fig.5

IMPORTANT!

At long standing in the heated area, the distance from the heater

radiating boards to a person or an animal at indoor air temperature

below +11 °C should be at least 1.8 m.

IMPORTANT!

Mounting of the infrared heater and its connection to the electric

mains should be carried out only by qualified specialists according

to the Electrical Installation Regulations and Power System Safety

Standards.

Infrared heater mounting

1. Open the factory package and carefully remove the heater from it.

2. Take the set of fasteners.

3. According to Figs. 2, 3, 4, select the heater installation place on the

ceiling or ceiling structural elements with observation of minimum distances

from objects and minimum distance from the floor.

4. Install the brackets at distance from each other according to Fig. 5,

securing them using a chain or fasteners.

5. Suspend the heater on the brackets according to Fig. 5, first securing on

edge, then another. Make sure that screws are tightened firmly.

Fig.6

NOTE:

1. Depending on material and design of ceiling structural elements,

the heater is secured onto appropriate fasteners chosen on basis of

the strength condition. Strength of the ceiling or structural elements,

to which the heater is secured, should be sufficient to endure 5-fold

weight of the heater.

2. The heater can be installed on the wall and mounted on the height

not less than 1.8 from the floor. Also it is obligatory to be installed

an additional protection in order to avoid the contact with heating

plates.
